Outputs–Temperatures
• This Output Temperature screen describes how your control is set to operate.
2
3

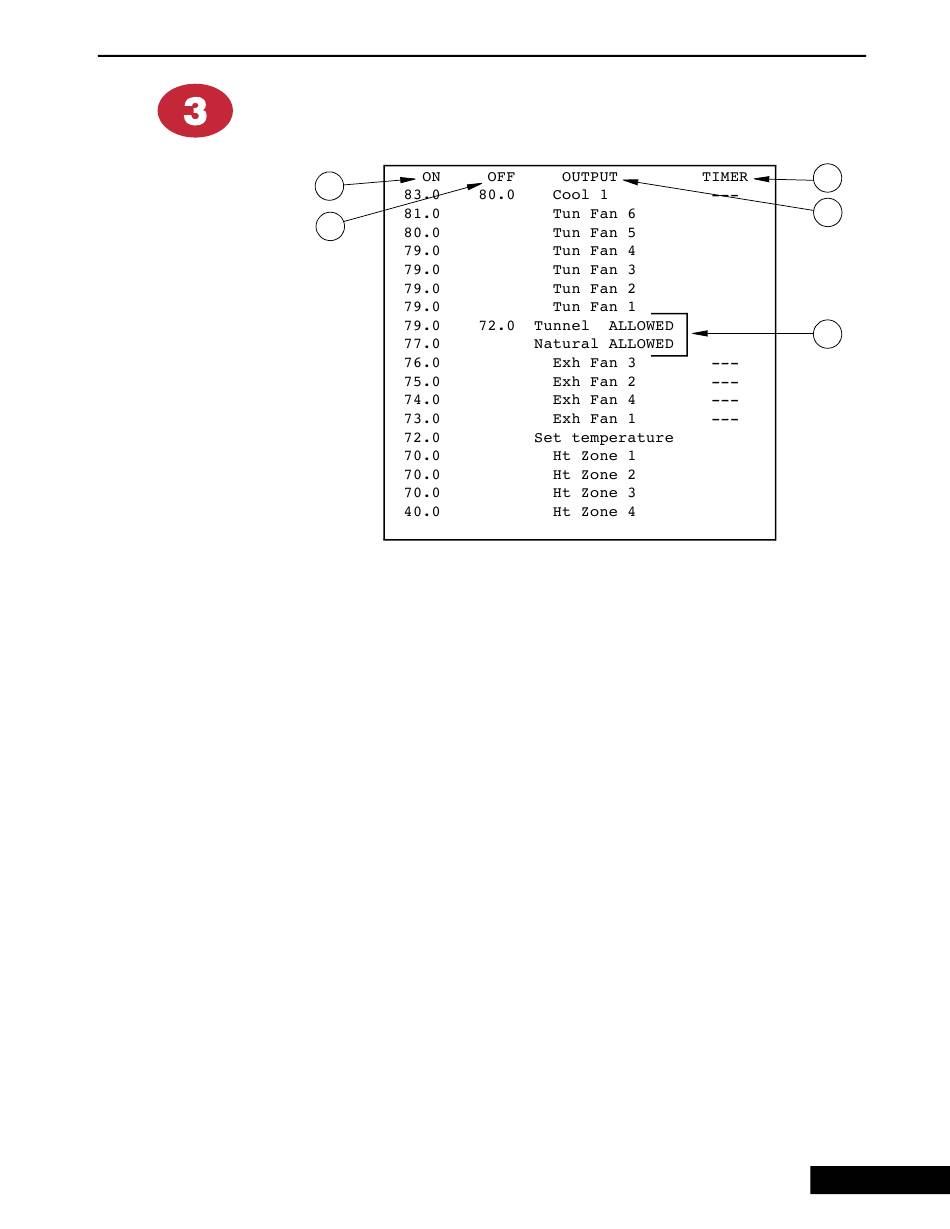

Figure 8. Model 16 Output Temperature Screen
1 Output - This gives a complete list of each piece of equipment that is hard wired
into the control through the relay panel and indicated in the Setup and
Calibration — BUTTON 12. This allows you to see what will happen in the
house as the temperature moves away from set temperature.
2. On Temperature - These are the temperatures you will assign to turn a
particular device on. With the exception of cooling and tunnel, the off
temperature will be the next temperature closet to set temperature you have
assigned (the minimum on/off difference is 0.5° F (.3 C). These temperatures can
be re-assigned, for example if you feel a particular fan is coming on too
frequently due to its position in the temperature order.
3. Off Temperature - Here is where you enter the off values for cooling and tunnel
(tunnel available on Model 16 only). This helps to prevent the rapid cycling of
those functions.
4. Timer - This is where you assign a Timer to outputs as described in screen "2".
You can designate as many fans to be on timers as you wish.
5. Temporary Tunnel/Natural Mode Override (tunnel available on Model 16
only) - Here you can temporarily disallow tunnel or natural modes without
having to alter your set up screen. This can be convenient when the age of the
birds is a factor as to whether a mode is used (i.e. not going into natural with baby
chicks). While in Edit, pressing the (+) button will alternate between
"ALLOWED" and "NOT ALLOWED".
Operation and Description of Function Settings
4
1
5
21
