Parts Listing; Station Pds™ Control: 49000-4; Station Pds™ Control: 49000-8 - Chore-Time PDS Control 4 Installation And Operator's Manual

PDS™ Control 4 and 8 Station

Parts Listing

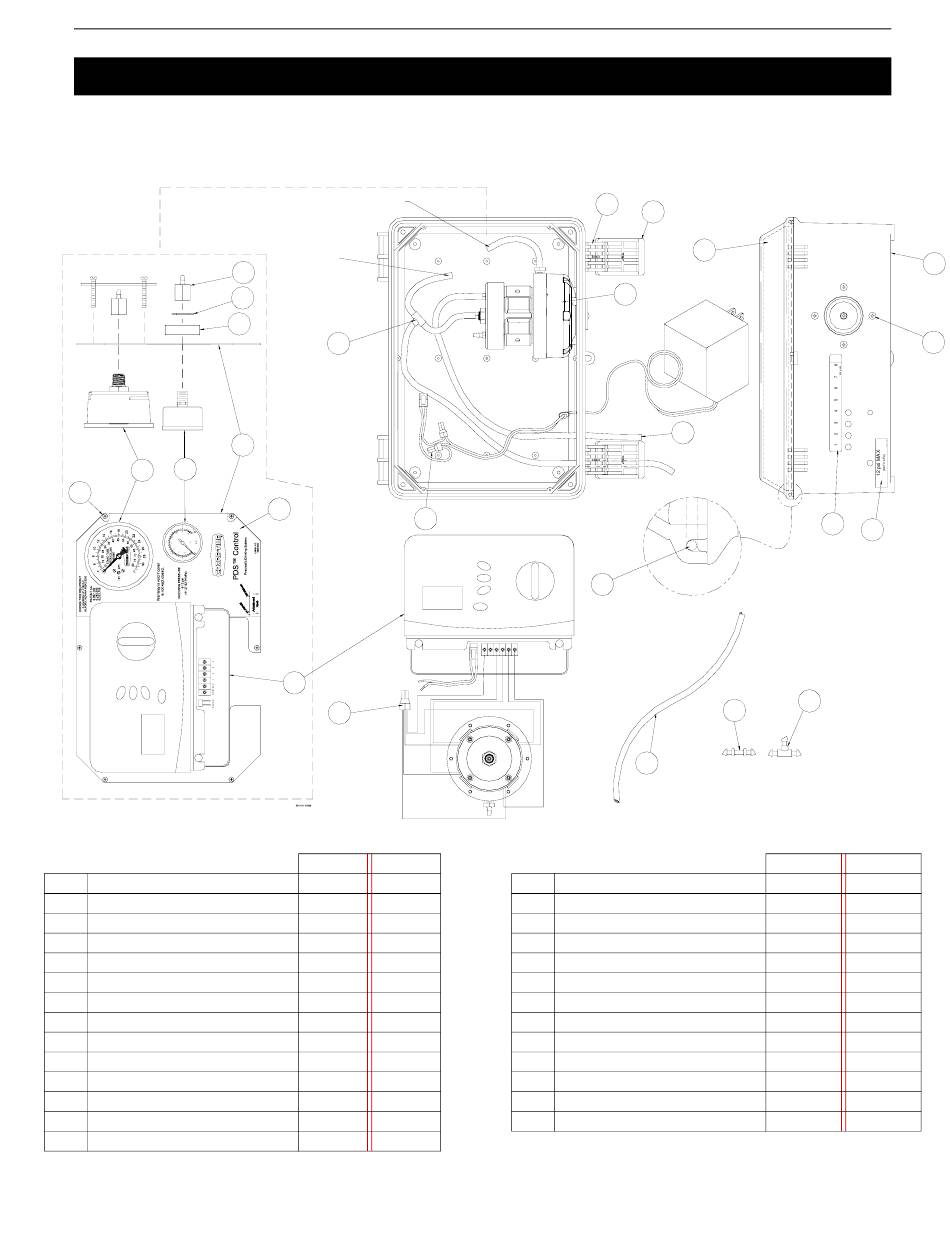

4 Station PDS™ Control: 49000-4
8 Station PDS™ Control: 49000-8
17
16
15
Item Description
1 Terminal Strip Decal
2 Max PSI Decal
3 #6-20 x 5/8" Pan Hd Screw
4 Control Box
5 Control Box Lid
6 Control Box Latch
7 Control Box Latch Pivot
8 Airloader W/Adjustment Knob
*9 1/4" OD 1/8" ID Flexible Tubing
*10 1/8" Diameter Seal
11 Connector Tee
12 1/8" Female Pipe Adapter
13 1/2" Machine Washer
MW1402D
TO LARGE GAUGE
(ITEM 16)
TO SMALL GAUGE
(ITEM 17)
12
13
14
11
18
19
21
22
49000-4 49000-8
Part No Part No
2526-430 2526-430
2526-437 2526-437
48577 48577
50691-4 50691-8
30859-1 30859-1
30862 30862
30863 30863
48837 48584
48574 48574
34767 34767
45894 45894
48586 48586
2499 2499
20
10
COM MV
1 2 3 4
2
3
1
4
Item
14
15
16
17
18
19
20
21
22
23 1/4" O.D. Tubing (500 Ft Roll)
24 1/4" PDS Tube Coupling
25 1/4" PDS Tube Connector Tee
*Item sold in Feet.
7
6
5
8
9
24
23
Description
Gasket
#4-24 x 3/8" Screw
Airloading Gauge
20 PSI Gauge
Control Plate
Control Decal 2529-883
Pigtail Connector
120V Timer Control
Pigtail Connector
45895-500 45895-500
Parts Listing
4
3
1
2
25
49000-4 49000-8
Part No Part No
6968-1 6968-1
35493 35493
44029 44029
48585 48585
50692 50692
2529-883
5907-1 5907-1
50819-1 50819-2
5907-2 5907-2
45893 45893
45894 45894
15
