VAR FAN 1 & 2
Key
1
2
3
4
5
6
7
8
9
*See Outputs-Temperatures BUTTON 3
1, 2 ,3, and 4 are the only values that can be edited. If the variables
are to function independently of each other, the "On" for variable 2
has to be set at 2.5°F above the "On" for variable 1.
If the "on" for both variables are the same, then they will function
identically.

Types of Timers

There are two types of timers.
1. The first type is only used for COOL outputs. It modulates (turns on and off) a
COOL output above the COOL output's "on temperature".
2. The second type of timer is used on EXH FAN, STIR FAN, TUN FAN (Model
16) and VAR FAN 1 outputs. It modulates an output below these output's "on
temperature".
Description

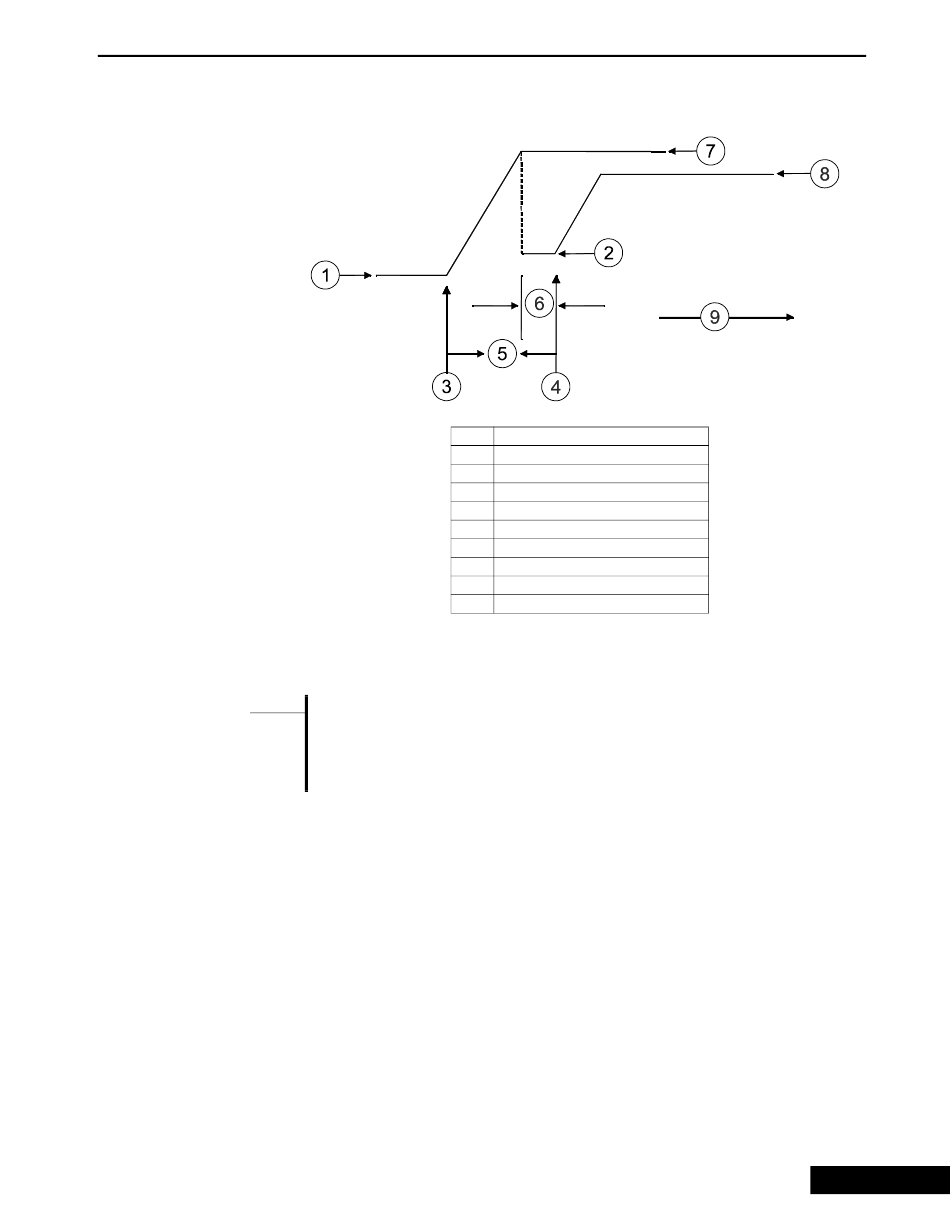

Minimum Speed 1
Minimum Speed 2
*Variable Fan 1 – on
*Variable Fan 2 – on
2.5° Fahrenheit – minimum allowed
.5° Fahrenheit – fixed
Variable Fan #1 – Full Speed
Variable Fan #2 – Full Speed
Increase Temperature
