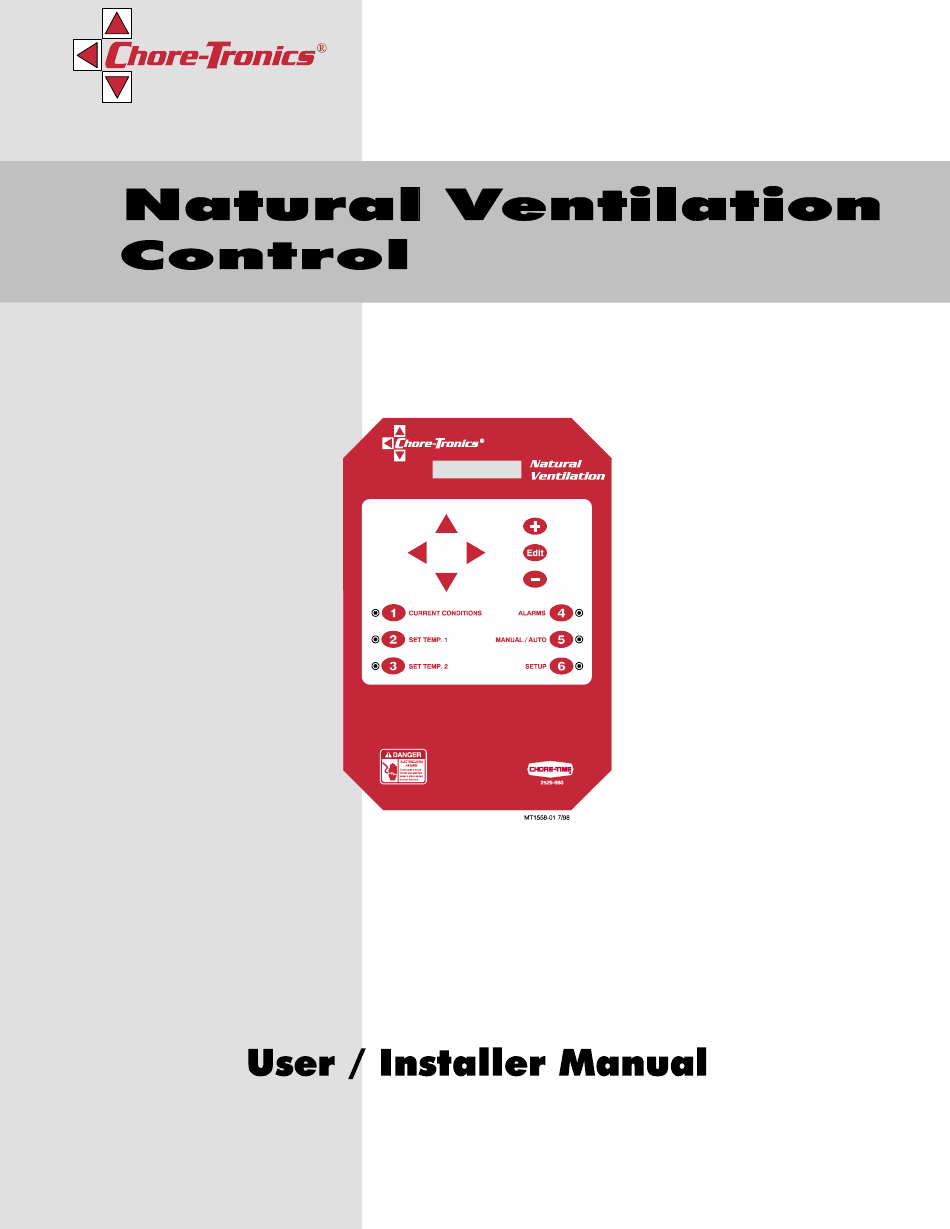

- Page 1 MT1558B August 2014 MT1558B...
-
Page 2: General
One (1) year from the date of installation by the original purchaser (“Warranty”). If such a defect is determined by Chore-Time to exist within the applicable period, Chore-Time will, at its option, (a) repair the Product or Component Part free of charge, F.O.B. the factory of manufacture or (b) replace the Product or Component Part free of charge, F.O.B. -
Page 3: Table Of Contents
Contents Topic Page General ............. 2 Chore - Time Warranty . -
Page 4: Support Information
Limited Warranty Chore-Tronics NV Control Support Information Using this equipment for any other purpose or in a way not within the operating recommendations specified in this manual will void the warranty and may cause personal injury. Distributor and Installer Information Please fill in the following information about your Product. -
Page 5: Introduction
Chore-Tronics NV Control Limited Warranty Introduction This manual is designed to provide comprehensive planning, installation, operation, and parts listing information. The Table of Contents provides a convenient overview of the information in this manual. Read this manual before operating your Control. If you have any questions regarding your Control, please contact your local ... -
Page 6: Safety Instructions And Warnings
Back-Up will be viewed as the user’s willingness to accept the risk of that loss. • Chore-Time takes no responsibility for any possible damage as a result of improper settings and non or partially functioning installation. • Chore-Time takes no responsibility for any possible damage due to failure,... -
Page 7: Notice To Electrician
Chore-Tronics NV Control Notice to Electrician Notice to Electrician ® Each relay output in this Chore-Tronics control is designed to control 1 H.P. for many years of service. The relays are single pole, normally open contacts and break only one line of the power to the various loads. (The control is not to be considered the disconnect device for motor loads.) If a load of more than 1 H.P. -
Page 8: Initial Setup
Initial Setup Chore-Tronics NV Control Initial Setup 1. Answer all questions and adjust all settings in Screen #6. In this screen the relay numbers are associated with the output names in the drawing on page 15. This must be done first in that the other screen’s contents are affected by the answers and settings of Screen #6. -
Page 9: Introduction To Control
Chore-Tronics NV Control Introduction to Control Introduction to Control Description of Control Front Panel Item Description Natural Ventilation Viewing Screen Navigation Buttons Edit Buttons Subject Buttons MT1558B... -
Page 10: Viewing Screen
Introduction to Control Chore-Tronics NV Control Viewing Screen The viewing screen has a display which can show 1 line, containing 16 characters. This is the area that will display the requested information when a subject button is pressed. The viewing screen will always remain lit. When other subjects are not shown, the Current Conditions screen will be displayed T1 00.0 T2 00.0 Navigation Buttons... -
Page 11: Subject Buttons
Chore-Tronics NV Control Introduction to Control An example of using the Edit Buttons and the Navigation Buttons {Note} are discussed later in this section. How to Maneuver in the Viewing Screen” See “ Subject Buttons On the front of the Controller are 6 subject keys each with an indicator light. As each subject button is pressed, the subject that is described beside the button will appear on the screen and the light on the other side of the button will be lit. -
Page 12: How To Maneuver In The Viewing Screen
Introduction to Control Chore-Tronics NV Control How to Maneuver in the Viewing Screen The procedures below give a brief overview on the use of the Navigation Buttons and the Edit Buttons. For this example we will be looking at the Setup Screen. (Button 6 on the Control front panel). -
Page 13: Using The Edit Buttons
Chore-Tronics NV Control Introduction to Control Using the Edit Buttons This example gives you a brief summary on how to use the Edit Buttons in conjunction with the Navigation Buttons to edit values. For this example we will be looking at the Setup Screen. (BUTTON 6 on the Control front panel). - Page 14 Introduction to Control Chore-Tronics NV Control 4. Press the DOWN ARROW (Figure 5). °F Figure 5. Setup edit Screen. 5. Press the (+) or (–) buttons to change from Fahrenheit to Celsius. In this case the (+) and (–) buttons select different text choices. 6.
-
Page 15: Relay Assignment
Chore-Tronics NV Control Relay Assignment Relay Assignment Actual House Layout Relay Device Controlled MT1558B... -
Page 16: Operation And Description Of Function Settings
Operation and Description of Function Settings Chore-Tronics NV Control Operation and Description of Function Settings Current Conditions Screen This unit is designed to control the operation of the side wall curtains in a natural only house. This is done by satisfying set temperature or temperatures if the optional second sensor is used. -
Page 17: Alarms
Chore-Tronics NV Control Operation and Description of Function Settings Alarms Min 00 Max 00 Figure 9. Alarms Screen. The alarm output can be connected to external devices such as {Note} sirens or dialers. The control itself will present a visual display in this screen. -
Page 18: Manual / Auto
Operation and Description of Function Settings Chore-Tronics NV Control Manual / Auto This screen allows you to override the control and operate the curtain manually. Main 1 Aut open Main 2 Aut open Figure 10. Manual / Auto Screen. 1. “Aut” - if this is showing, this indicates that the control is operating the equipment automatically. -
Page 19: Setup
Chore-Tronics NV Control Operation and Description of Function Settings Setup This is probably the most important screen in your control. This is the area that configures your control to meet the needs of your specific house management style. This setup should be done by a certified installer or distributor technician. Figure 11. -
Page 20: Technical Specifications
Technical Specifications Chore-Tronics NV Control Technical Specifications Ambient Operating Temperature Range… -10C to 50C/14F to 122F Set Temperature Range...4.4°C to 48.9°C/40°F to 120° Supply Voltage………200-240 Vac 50-60 Hz Supply Current………63 mA Output Relays Contacts……..SPST Normally Open contacts Voltage………250 Vac max Load…………10 Full Load amps, 35 Locked Rotor / Start Amps... -
Page 21: Pc Connection Overview
The Controls in each house are connected together at the FNET Terminal Connectors as shown below. Use only Twisted Pair Wire (Chore-Time Part No. 42208). The Interface Box can be wired in anywhere either at the beginning of your string, at the end, or between Controls;... -
Page 22: Trouble Shooting
Trouble Shooting Chore-Tronics NV Control Trouble Shooting Problem Possible Cause Solution The Screen is blank, but The screen is defective. Replace the display. outputs appear to be The flat cable between the KD board and Readjust connections or replace operating normally. the screen is defective, loose or cables. -
Page 23: Wiring Diagram
Chore-Tronics NV Control Wiring Diagram Wiring Diagram Natural Ventilation Control Wiring MT1558B... -
Page 24: Parts Listing
Parts Listing Chore-Tronics NV Control Parts Listing 20 21 9 10 23 9 11 22 MT1558B... - Page 25 Chore-Tronics NV Control Parts Listing Item Description Part No. Enclosure Body 30860-3 Enclosure Lid 30859-1 Pivot Hinge 30863 Pivot Latch 30862 Front Decal 2529-680 1 x 16 Display 41319 KDCM.2 Board 41316 IO.1 Board 41310 .05 Compressible Spacer 43381 KD Board Nylon Spacer 43382 Display Nylon Spacer 43383...
- Page 26 Page No. Description of Change Various Added Wiring Diagram and Tech Specs. Updated Parts Pages Contact your nearby Chore-Time distributor or representative for additional parts and information. Chore-Time Group A division of CTB, Inc. PO Box 2000 Milford, Indiana 46542-2000 USA Phone (574) 658-4101 Fax (877) 730-8825 E-mail: www.choretimepoultry.com...
