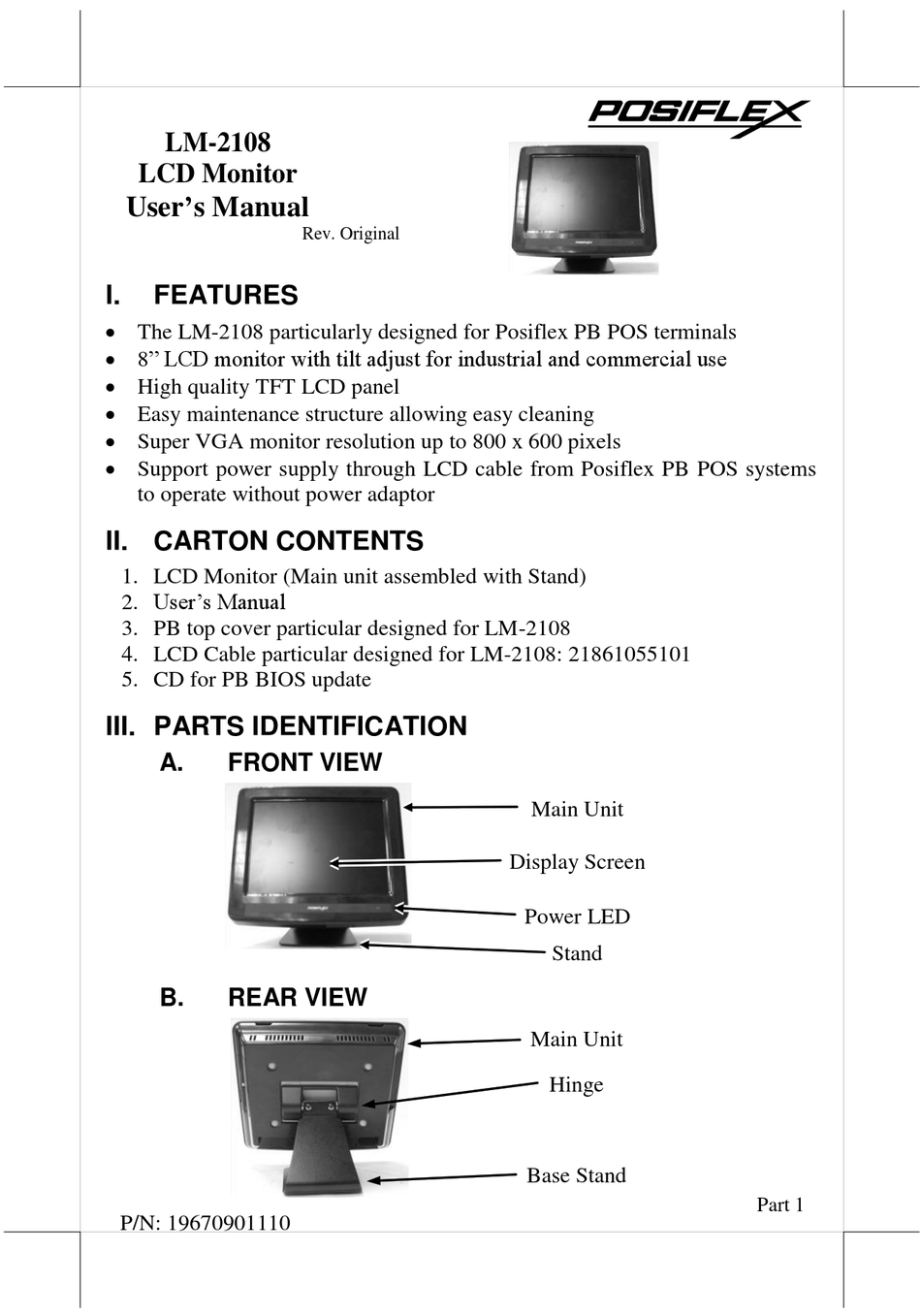

LM-2108

LCD Monitor

User's Manual
I.

FEATURES

 The LM-2108 particularly designed for Posiflex PB POS terminals
 8" LCD monitor with tilt adjust for industrial and commercial use
 High quality TFT LCD panel
 Easy maintenance structure allowing easy cleaning
 Super VGA monitor resolution up to 800 x 600 pixels
 Support power supply through LCD cable from Posiflex PB POS systems
to operate without power adaptor
II. CARTON CONTENTS
1. LCD Monitor (Main unit assembled with Stand)
2. User's Manual
3. PB top cover particular designed for LM-2108
4. LCD Cable particular designed for LM-2108: 21861055101
5. CD for PB BIOS update
III. PARTS IDENTIFICATION
A.
FRONT VIEW
B.
REAR VIEW
P/N: 19670901110
Rev. Original
Main Unit
Display Screen
Power LED
Stand
Main Unit
Hinge
Base Stand
Part 1
