LM-2312
LCD Monitor
User's Manual
FCC NOTICE
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions manual, may cause interference to radio communications. It has been tested and
found to comply with limits for a Class A digital device pursuant to subpart J of Part 15 of FCC Rules, which are
designed to provide reasonable protection against interference when operated in a commercial environment.
Operation of this equipment in a residential area is likely to cause interference in which case the user at his own
expense will be required to take whatever measures to correct the interference.
WARRANTY LIMITS
Warranty will terminate automatically when the machine is opened by any person other than the authorized
technicians. The user should consult his/her dealer for the problem happened. Warranty voids if the user does not
follow the instructions in application of this merchandise. The manufacturer is by no means responsible for any
damage or hazard caused by improper application.
ABOUT THIS MANUAL
This manual assists the user to utilize the LCD Monitor LM-2312. These series provide adjustable robust
construction for 12" LCD display with maximum resolution of 1024 x 768.
The manufacturer of the LM-2312 series heartily apologizes to the user for reserving the right to change or to
modify this manual without notice due to the rapid and constant progress and improvement on science and
technology. The user may always obtain the most up to date information through any of our web sites:
http://www.posiflex.com, http://www.posiflex.com.tw, http://www.posiflexusa.com.
© Copyright Posiflex Technology, Inc. 2011
TRADE MARKS AND SERVICE MARKS
POSIFLEX is a registered trademark of Posiflex Technology, Inc.
Other brand and product names are trademarks and registered trademarks and service marks of their
respective owners.
I.
FEATURES

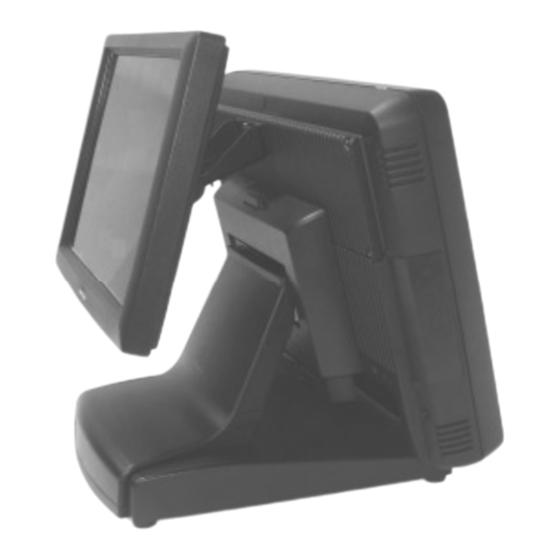

• The LM-2312 particularly designed for Posiflex KS-6815/6915/7215 series
POS terminals
• Most stable 12" LCD monitor with tilt adjust for industrial and commercial
use
• High quality TFT LCD panel
• Easy maintenance structure allowing easy cleaning
• Super VGA monitor resolution up to 1024 x 768 pixels.
Support power supply through LCD cable from Posiflex KS-
•
6815/6915/7215 series POS systems to operate without power adaptor
P/N: 19690906010
Rev. Original
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LM-2312 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for POSIFLEX LM-2312

Summary of Contents for POSIFLEX LM-2312

  • Page 1 12” LCD display with maximum resolution of 1024 x 768. The manufacturer of the LM-2312 series heartily apologizes to the user for reserving the right to change or to modify this manual without notice due to the rapid and constant progress and improvement on science and technology.

  • Page 2: Carton Contents

    3 pcs short screws which circled in the right picture. Next, please use the VGA Cable to connect to the LM-2312 VGA port and route the VGA cable through the cable exit of the base stand to the KS-6815/6915/7215 series’ VGA ports. For...
  • Page 3 (On Screen Display adjustment). The OSD window will pop up on the screen. On top part of this window is a Posiflex logo with the OSD firmware version indicated to its lower right. Below this area is a row of icons for main OSD menu.
  • Page 4 “CONTRAST ADJUST”: When this item is selected, there will be only the contrast icon with an adjustment indication bar under it between the main menu area and the video signal mode. Press “+” button to increase contrast. Press “-” to decrease. Press “OSD” button to save the current setting and return to “Brightness/Contrast submenu”.
  • Page 5 “5000K”: Pressing “OSD” button on this icon will set the color balance to a color temperature of 5000 degrees Kelvin. “6500K”: Pressing “OSD” button on this icon will set the color balance to a color temperature of 6500 degrees Kelvin. “7500K”: Pressing “OSD”...
  • Page 6 under it between the main menu area and the video signal mode. Press “+” button to shift up the screen display. Press “-” to shift down. Press “OSD” button to save the current setting and return to “Geometry adjust submenu”. “EXIT”: Return to “Main menu”.
  • Page 7 “MODE SELECT”: Pressing “OSD” button on this icon will have no effect at all if the display mode is not one of the confusing modes. The confusing modes here mean 640 x 400 or 720 x 400 in display resolution as both mode have refresh rate of 70Hz, horizontal frequency of 37.9KHz and pixel frequency of 31.5MHz making it impossible for automatic select.

  • Page 8: Supported Display Modes

    V. SUPPORTED DISPLAY MODES For video signals beyond the supported display modes, there will be a message “Out Of Range” on middle of screen. Maximum supported color depth is 24 bits or 16.2 M colors. Supported display modes are as in the table: Horizontal Frequency Display Resolution Refresh Rate (Hz)
