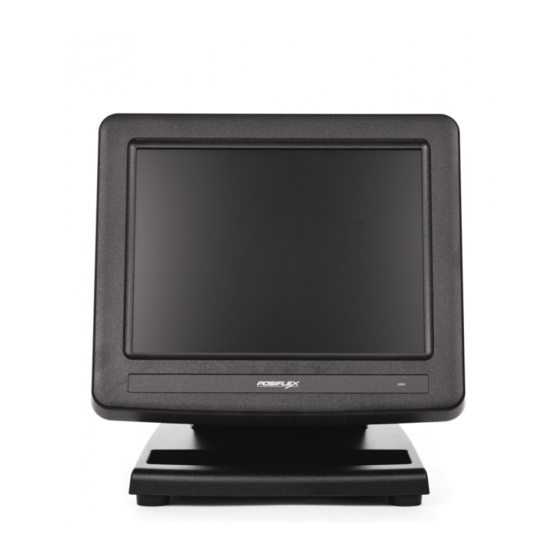

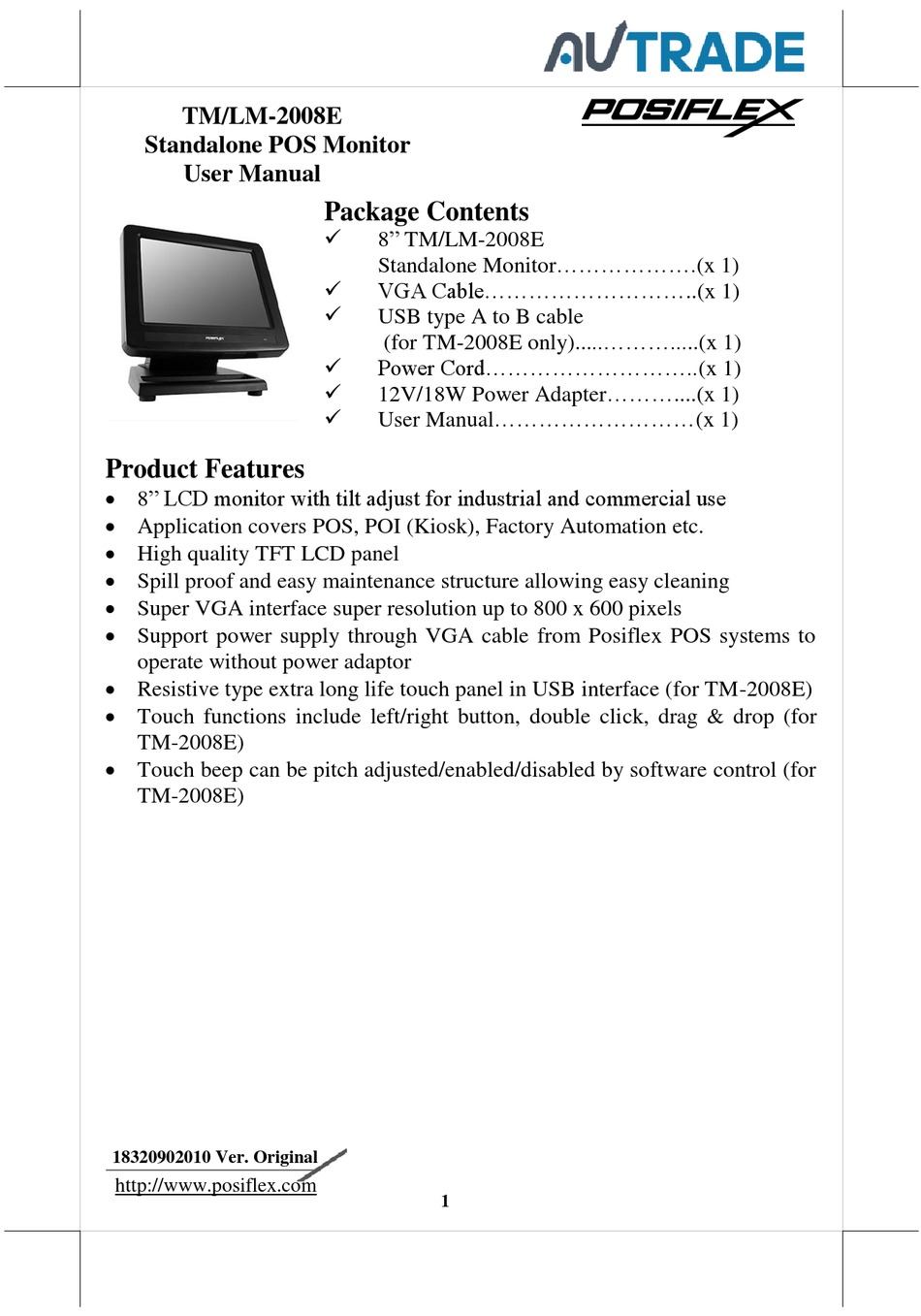

TM/LM-2008E
Standalone POS Monitor
User Manual
Product Features
 8" LCD monitor with tilt adjust for industrial and commercial use
 Application covers POS, POI (Kiosk), Factory Automation etc.
 High quality TFT LCD panel
 Spill proof and easy maintenance structure allowing easy cleaning
 Super VGA interface super resolution up to 800 x 600 pixels
 Support power supply through VGA cable from Posiflex POS systems to
operate without power adaptor
 Resistive type extra long life touch panel in USB interface (for TM-2008E)
 Touch functions include left/right button, double click, drag & drop (for
TM-2008E)
 Touch beep can be pitch adjusted/enabled/disabled by software control (for
TM-2008E)
18320902010 Ver. Original
http://www.posiflex.com
Package Contents
8" TM/LM-2008E
Standalone Monitor...................(x 1)
VGA Cable.............................(x 1)
USB type A to B cable
(for TM-2008E only)...................(x 1)
Power Cord.............................(x 1)
12V/18W Power Adapter.............(x 1)
User Manual...........................(x 1)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TM-2008E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for POSIFLEX TM-2008E

Summary of Contents for POSIFLEX TM-2008E

  • Page 1  Support power supply through VGA cable from Posiflex POS systems to operate without power adaptor  Resistive type extra long life touch panel in USB interface (for TM-2008E)  Touch functions include left/right button, double click, drag & drop (for TM-2008E) ...
  • Page 2 Views of the TM/LM-2008E Front View 8” LM-2008E LCD Panel 8” TM-2008E Resistive Touch Panel LED Indicator Left-side View OSD button EXT button ＋ button － button Power button...
  • Page 3 Rear View Neck Cover Cable Exit I/O Ports of TM/LM-2008E USB (Type B) Port for TM-2008E only DC-IN Power Jack VGA Port Positioning your monitor for a Perfect Viewing Angle Tilt the screen in the direction shown by the arrow in the...
  • Page 4 Connecting VGA and USB Cables Gen6 base features its own cable management to help you well organize the cords. The following will provide some useful cable-routing instructions for you to connect VGA and USB cables to TM/LM-2008E. Tilt the display all the way down. To remove the cable cover at the rear of the terminal, pull the four locking levers outwards with your fingers and slide the cover in the...

  • Page 5: Power Led Indicator

    After making sure the cable is threaded out of the cable exit, put the cable cover back into place. Cable Exit Power LED Indicator Power LED indicator, located at the bottom of the screen, is used to notify users of the current status of your monitor by emitting various LED signals. Please refer to the below chart to accurately interpret the of the indicators status to facilitate your troubleshooting.
  • Page 6 VGA power of the terminals in BIOS settings so that the monitor is able to extract power from the Posiflex terminals. However, if the monitor you are using is not manufactured by Posiflex, it is strongly suggested to deactivate the VGA power of your terminal in preventing your device from being damaged.

  • Page 7: Using The Osd Menu

    Using the OSD Menu OSD, as known as On-Screen Display, is employed to assist users in adjusting a variety of monitor-related settings depending on personal preference. Through this section, it is expected to familiarize you with the options which are accessible via OSD menu, and to optimize your experiences with TM/LM-2008E.

  • Page 8: Color Adjust

    OSD Options Please refer to the following table for further explanation of the accessible items. OSD Menu Options Sub-menu items & Description  Contrast Color Press the “＋” button to increase contrast; Press the “－” button to decrease contrast.  Brightness Press the “＋”...
  • Page 9 OSD Menu Options Sub-menu items & Description  H. Pos. OSD Menu Press the “＋” button to move OSD menu to the right; Press the “－” button to move OSD menu to the left.  V. Pos. Press the “＋” button to move OSD menu up; Press the “－”...

  • Page 10: Specifications

    12V / 18W Display Interface Touch Touch type 5-wire Resistive Interface ※ The product information and specifications are subject to change without prior notice. To get the detailed information on TM/LM-2008E, please check this model from Posiflex Global Website (http://www.posiflex.com/en-global/Download/download).
