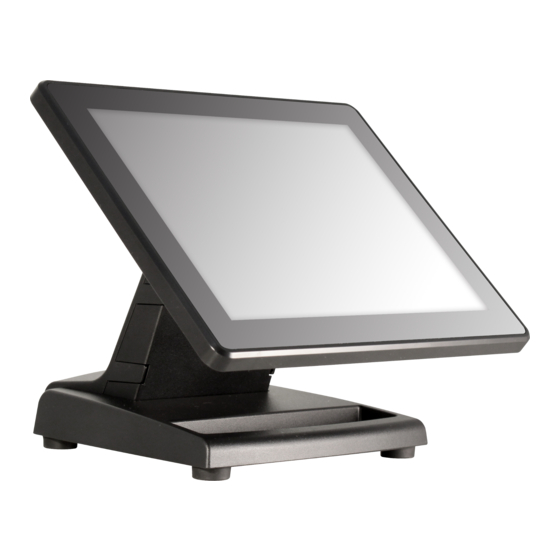

9.7” usb 2nd lcd monitor/touch monitor

Advertisement

LM/TM – 6210
9.7" USB 2nd LCD Monitor/Touch Monitor
User's Manual
FCC NOTES
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
CE CLASS A WARNING
This equipment is compliant with Class A of CISPR 32. In a residential environment this
equipment may cause radio interference.
AVERTISSEMENT CE CLASSE A
Cet équipement est conforme à la classe A de CISPR 32. Dans un environnement résidentiel, cet
équipement peut provoquer des interférences radio.
WARRANTY LIMITS
Warranty will terminate automatically when the machine is opened by any person other than the
authorized technicians. The user should consult his/her dealer for the problem happening.
Warranty voids if the user does not follow the instructions in application of this merchandise. The
manufacturer is by no means responsible for any damage or hazard caused by improper application.
LIMITES DE GARANTIE
La garantie prend fin automatiquement lorsque la machine est ouverte par une personne autre que
les techniciens autorisés. L'utilisateur doit consulter son revendeur pour le problème qui se produit.
La garantie s'annule si l'utilisateur ne suit pas les instructions d'application de cette marchandise.
Le fabricant n'est en aucun cas responsable de tout dommage ou danger causé par une mauvaise
application.
警告
為避免電磁干擾,本產品不應安裝或使用於住宅環境。
SAFETY INSTRUCTIONS
This equipment is not suitable for use in locations where children are likely to be present.
CONSIGNES DE SÉ CURITÉ
Cet équipement ne convient pas à une utilisation dans des lieux pouvant accueillir des enfants.
Rev.: A0
Part 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LM-6210 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for POSIFLEX LM-6210

  • Page 1 LM/TM – 6210 9.7” USB 2nd LCD Monitor/Touch Monitor User’s Manual Rev.: A0 FCC NOTES This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 2: Brief Introduction

    Power Setup Notice  This device is particularly designed for use with a Posiflex system. In such application, it can utilize power support from the Posiflex system. BRIEF INTRODUCTION THE PRODUCT The LM/TM-6210 9.7” USB-interface 2 LCD monitor/touch monitor product series is typical of small-sized LCD peripheral.
  • Page 3: Physical Installation

    USB Interface Connection To enable connection, install USB interface driver firstly. To download the driver, please go to Posiflex global website. For immediate PnP function, connect the attached USB 2.0 cable to the USB port in the host system. LM/TM-6210 Front View:...
  • Page 4 (LM/TM-6210 I/O Plate) DC IN jack USB-A type port B) REAR VIEW (LM/TM-6210) Main Unit VESA mount holes Hinge Control Button Area Plastic Neck Cover Base Stand Cable Exit Hole Cable Exit Hole Control Button Area Part 4...
  • Page 5 The buttons at the right side of LCD display are for the control operations and LCD screen power control as in the above picture and are explained below: “” “” button: To increase setting. “” “” button: To decrease setting. “”...
  • Page 6 II. HARDWARE INSTALLATION A. TILTING LCD PANEL The tilting mechanism in LM/TM-6210 utilizes hinges and there is no particular skill to turn the LCD panel to most suitable angle for either viewing or convenience in cable connection/disconnection. B. CONNECTING ALL CABLES With the LCD monitor/touch monitor panel turned to most backward...
  • Page 7: Application Guides

    D. CABLE ROUTING IN BASE For cable routing in the mini slim base, please refer to the picture below. Have all cables pass through the oval hole on the trunk as triangle marked to come out of the arrowed cable exit hole on the base rear side of trunk.
  • Page 8 20% to 85%, non-condensing Storage humidity 5% to 90%, non-condensing WARNING: If the user opens the pole display housing to make any modification, all the product warranty will be voided. NOTE: Please visit Posiflex global website for further information needed. Part 8...
