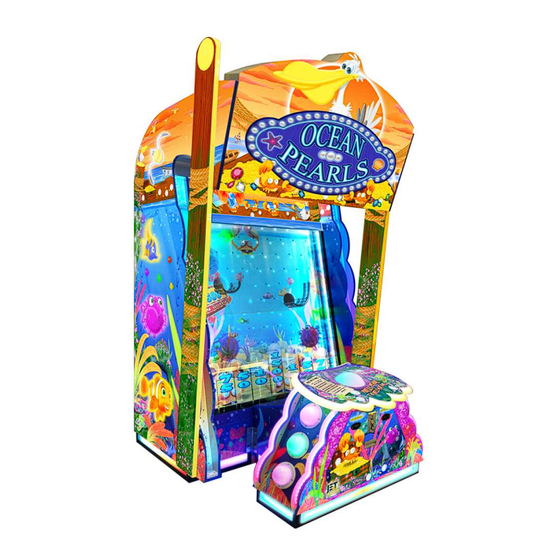

Jet Ocean Pearls Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

OCEAN PEARLS SERVICE MANUAL
For Additional Information or for an Electronic Copy of This Manual Visit Our Website
www.JENNISONGAMES.com
VERSION 1.0
Jennison Entertainment Technologies Corporation
822 South Nova Road • Daytona Beach, Florida 32114 • U.S.A.
Phone Number: 1-855-JET-GAME
Phone Number: 1-386-255-1599
Fax Number: 1-386-255-1589
Service Email: Service@JennisonGames.com
Information Email: Info@JennisonGames.com

Advertisement

Table of Contents
loading

Summary of Contents for Jet Ocean Pearls

  • Page 1 OCEAN PEARLS SERVICE MANUAL VERSION 1.0 Jennison Entertainment Technologies Corporation 822 South Nova Road • Daytona Beach, Florida 32114 • U.S.A. Phone Number: 1-855-JET-GAME Phone Number: 1-386-255-1599 Service Email: Service@JennisonGames.com Fax Number: 1-386-255-1589 Information Email: Info@JennisonGames.com For Additional Information or for an Electronic Copy of This Manual Visit Our Website...

  • Page 2: Table Of Contents

    Attaching Upper Pillars Removing / Sliding the Monitor Attaching Lower Pillars Configuring the Double Display Preparing Unit Schematics & Wire Diagrams Checking Power Supplies Warranty Information Powering the Unit On Parts List (Attachment) Jennison Entertainment Technologies Ocean Pearls Service Manual Page 2...

  • Page 3: Safety Notifications

    Attention boxes are in BLUE. These messages are provided in cases where service personal must follow directions provided by J.E.T. NOTICE Notices are given in GREEN boxes. These messages are provided for the operator's convenience. Jennison Entertainment Technologies Ocean Pearls Service Manual Page 3...

  • Page 4: Epilepsy Warning

    Play in a well-lit room Do not play when you are drowsy or fatigued If you or any of your relatives have a history of seizures or epilepsy, consult a doctor before playing. Jennison Entertainment Technologies Ocean Pearls Service Manual Page 4...
  • Page 5 DO NOT remove the game from its shipping pallet or skid without first reading the entire installation guide in this manual! DANGER DO NOT attempt to assemble Ocean Pearls without another adult to assist in the assembly. JET recommends at least three people for assembly. DANGER...
  • Page 6 Use appropriate care when servicing the game and ensure that all removed components are away from facility guests and children. CAUTION Only qualified service personal should service Ocean Pearls. Contact JET first with any questions before replacing any part. Jennison Entertainment Technologies Ocean Pearls Service Manual...

  • Page 7: Fcc Compliance

    This Class “A” digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique da la classe “A” respecte toutes les exigences du Réglement sur le matériel brouilleur du Canada. Jennison Entertainment Technologies Ocean Pearls Service Manual Page 7...

  • Page 8: Rohs Compliance

    As of November 2014, Jennison Entertainment Technologies has tested all components used in the manufacturing of Ocean Pearls™. All components have been found to be within the standards set forth for RoHS compliance by the European Union. Test reports are available and will be provided upon request.

  • Page 9: Cabinet Dimensions

    1524 Ocean Pearls ships on two 8' x 4' skids within the United States, Canada, and Mexico. The main cabinet ships on one and the control center, header sections ship on the other. The skid that the main cabinet is on has been designed so that a forklift can lift the unit off.

  • Page 10: Electrical Requirements

    YOU MUST ALSO SELECT THE NEW INPUT AC VOLTAGE ON ALL SIX POWER SUPPLIES DANGER DO NOT OVERLOAD ANY CIRCUIT WITH THE ADDITION OF OCEAN PEARLS. ENSURE THAT THE OUTLET HAS PROPER VOLTAGE BEFORE TURNING ON THE UNIT Jennison Entertainment Technologies Ocean Pearls Service Manual...
  • Page 11 THOUGHOUT THE TEXT IN THIS MANUAL - THERE ARE SEVERAL REFERENCES TO DIFFERENT PARTS OF THE CABINET. THE ABOVE DIAGRAM SHOULD BE REFERENCED DURING INSTALLATION IN ORDER TO DETERMINE WHAT SECTION THE INSTRUCTIONS ARE REFERENCING. Jennison Entertainment Technologies Ocean Pearls Service Manual Page 11...

  • Page 12: Installation Instructions

    Step # 1 Unloading the game from the truck Ocean Pearls ships on two 8' x 4' skids. The main cabinet ships on one 8' X 4' skid and the three component boxes are shipped on another 8' X 4' skid. Each part is secured to the skid with metal banding. While...
  • Page 13 Cut and remove the metal or plastic banding holding the crates to the skid. Be careful when cutting any straps; take precautions so that the excess material does not spring back into your face. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 13...
  • Page 14 There are two decorative pillars strapped to the back of the unit. Check Box When This Step is Complete Step # 2-C Carefully cut some of the plastic shrinkwrap and remove the two decorative pillars. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 14...
  • Page 15 WARNING DO NOT TRY AND REMOVE THE GAME FROM THE PALLET BY PUSHING IT OFF THE SKID Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 15...
  • Page 16 Check Box When This Step is Complete Step # 2-I Ensure that the forks come completely through the cabinet before lifting the unit. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 16...
  • Page 17 Contact your distributor immedietly should you notice any damage. NOTICE CONTACT YOUR DISTRIBUTOR IF YOU NOTICE ANY INTERNAL OR CONCEALED DAMAGE Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 17...
  • Page 18 Depending upon your Country, the top of the control center may need to be installed. If it is in your case, the console unit will look like the unit in the photo to the right. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 18...
  • Page 19 CAUTION DO NOT PULL THE WIRES IF THE ARE CAUGHT ON SOMETHING - THIS COULD PULL THE PINS OUT OF THE MOLEX CONNECTOR(S) Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 19...
  • Page 20 Connect the 8 Pin Molex with the Orange and Black wires. CAUTION AS YOU MATE THE CONNECTION, BE SURE THAT NO PINS GET PUSHED OUT. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 20...
  • Page 21 LED lights along the bottom of the control center and main cabinet. CAUTION AS YOU MATE THE CONNECTION, BE SURE THAT NO PINS GET PUSHED OUT. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 21...
  • Page 22 WARNING AS YOU MATE THE HIGH VOLTAGE CONNECTION, BE SURE THAT NO PINS GET PUSHED OUT. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 22...
  • Page 23 Do not tighten all the way until the other side is lined up properly. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 23...
  • Page 24 Step # 4 Locating the control center components box Locate both Section # 3 and Section # 4 boxes and remove them from the skid. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 24...
  • Page 25 Open Section # 3 (Claw Section) and remove and stored pieces from inside the box. Remove the box by pusllin straight up and away from the skid. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 25...
  • Page 26 Carefully lay this piece on its back so it does not cause damae to any of the bolts. side 2 electrical Check Box When This Step is Complete Step # 4-F Remove the foam packaging from the unit. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 26...
  • Page 27 LEFT side of the unit is properly plugged into the LED board and seated properly. It will be difficult to reach this connection after the unit is assembled. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 27...
  • Page 28 Locate the holes in the upper RIGHT portion of the main cabinet (Section # 2). The bolts on the bottom of Section # 3 will slide into these holes. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 28...
  • Page 29 HAND HOLDS. DANGER SECTION # 3 WEIGHS APPROX. 170 POUNDS - DO NOT GET ANY OF YOUR FINGERS OR HANDS UNDER THE UNIT WHILE POSITIONING. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 29...
  • Page 30 Check Box When This Step is Complete Step # 4-R Open the rear cabinet door and ensure all bolts are seated properly into each of the four holes. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 30...

  • Page 31: Section # 2 Electrical Connections

    With the rear door still open, we need to connect two of the electrical connections for cabinet LED lights. These wires are located on the upper left side as you open the rear door. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 31...
  • Page 32 Ensure that there is enough clearance on the wires by manually moving the elevator up and checking that the metal arms do not come close to touching the wires. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 32...
  • Page 33 Be careful of the metal arms when you move your head in and out of the main cabinet. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 33...
  • Page 34 Check Box When This Step is Complete Step # 6-E Plug the 4 Pin Molex for the motor into the receiving harness. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 34...
  • Page 35 Step # 7-B Lift up on the right side of the assembly and guide the opening into the two securing bolts located on elevator # 2. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 35...
  • Page 36 Attach the two wires to the mechanical switch as shown. The BLACK wire should be installed on the LEFT pole and the YELLOW wire should be installed on the MIDDLE pole. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 36...
  • Page 37 Check Box When This Step is Complete Step # 8-A In the upper right side of Section # 3, you will find several wires connections. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 37...
  • Page 38 Check Box When This Step is Complete Step # 8-D Ensure that all 6 connectors are pulled down through the access hole. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 38...
  • Page 39 All 6 connectors from Section # 3 should be pluged into the appropriete connections from Section # 2 Check Box When This Step is Complete Step # 8-G Connect the 6 Pin Molex Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 39...
  • Page 40 Connect the 2 Pin Molex for speaker # 1 Check Box When This Step is Complete Step # 8-J Connect the 2 Pin Molex for speaker # 2 Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 40...
  • Page 41 Ensure that when you connect the 12 Pin connectors, you check the top connector and make sure all pins are secure and none have pushed out. NOTES LOOSE PINS WILL CAUSE PROBLEMS ON STARTUP Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 41...
  • Page 42 Check Box When This Step is Complete Step # 9 Locate the video card on the computer (PC) and ensure both the DVI cable and HDMI cable are secure. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 42...
  • Page 43 Check the connections oing to the SSD or Flash Drive and ensure they are secure. Check Box When This Step is Complete Step # 12 Intentionally left blank Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 43...
  • Page 44 Remove the 12 screws securing the acrylic marquee to the metal cabinet. Check Box When This Step is Complete Step # 13-B Locate and unwrap the Pelican marquee (If ceiling height allows). Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 44...
  • Page 45 WHERE THEY COULD GET PINCHED. Check Box When This Step is Complete Step # 13-E Attach the marquee so that the LED lights are facing forward Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 45...
  • Page 46 On the rear of the marquee, there are three brackets where 9 screws are used to further secure the marquee to Section # 4. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 46...
  • Page 47 Install the three screws into the middle bracket Check Box When This Step is Complete Step # 13-K Install the three screws on the right bracket. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 47...
  • Page 48 After pulling the wires out of the back of the marquee, push the wires into the access hole in the top of Section # 4. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 48...

  • Page 49: Section # 3 Electrical Connections

    Re-install the acrylic onto the marquee. It is easier to get a few screws started in multiple locations first so that the acrylic is lined up properly. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 49...
  • Page 50 WARNING SECTION # 4 WEIGHS APPROX. 100 POUNDS Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 50...
  • Page 51 Section # 4. The Two Pin Molex connectors are for the speakers and the Three Pin Molex connector is for the LED lights. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 51...
  • Page 52 Re-install the acrylic panel onto the front of Section # 4. Check Box When This Step is Complete Step # 14-H Re-install all 12 screws to secure the acrylic to the cabinet. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 52...
  • Page 53 Check to make sure all 4 springs are firmly installed. Check Box When This Step is Complete Step # 15-B Check all 4 mechanical switches and ensure each arm activates the switch. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 53...
  • Page 54 Remove the foam packaging and align the dome over the four springs. DANGER Check Box When This Step is Complete Step # 15-E The dome must be centered on each of the four springs. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 54...
  • Page 55 On each of the four bolts, there are two nuts. Remove the top nut from each bolt and leave the bottom nut securly in place. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 55...
  • Page 56 After the acrylic shell is resting on the top of the console and all four bolts have gone through their respective holes - push down several times on the acrylic dome and ensure it porperly moves without catching. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 56...
  • Page 57 Thread four nuts onto each of the four bolts. Check Box When This Step is Complete Step # 15-N Tighten each of the four nuts. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 57...
  • Page 58 There are four electrical connections that must be made after installing the acrylic shell. Check Box When This Step is Complete Step # 15-Q Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 58...
  • Page 59 Locate the three holes in Section # 4 and the three bolts required to attach the pillar to the left side of the main cabinet. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 59...
  • Page 60 Locate the three holes in Section # 4 and the three bolts required to attach the pillar to the right side of the main cabinet. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 60...
  • Page 61 Locate the two longer decorative pillars. Both are labeled either left or right (when looking at the front of the game). The pillar should be installed with the label facing in towards the main cabinet. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 61...
  • Page 62 Step # 17-C Install two of the bolts into the top of the pillar in Section # 4 on the right side of the game. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 62...
  • Page 63 Move the game into position by pushing on the side of the MAIN CABINET ONLY. DO NOT PUSH ON THE DECORATIVE PILLAR AND DO NOT PUSH ON THE MONITOR. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 63...
  • Page 64 Check Box When This Step is Complete Step # 20-A There are 5 game power supplies in Ocean Pearls - look to the bottom right of the rear cabinet and you will find three supplies. Check Box When This Step is Complete...
  • Page 65 Check Box When This Step is Complete Step # 21 Add the reminaing balls into the collection area in the bottom of the game. We recommend using 8 balls. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 65...
  • Page 66 Windows loading. Refer to the proper start-up section of the manual with questions regarding the start procedure. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 66...
  • Page 67 Check Box When This Step is Complete Step # 25-B Rotate the knob clockwise to increase the volume, rotate the knob counter-clockwise to decrease the volume. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 67...
  • Page 68 Make a note of the serial number (located on the serial plate) on the rear of the machine and the installation date. This informarion will be nessecary for ordering any parts during the warranty period. Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 68...
  • Page 69 Check Box When This Step is Complete Step # 23 Power ON the game Check Box When This Step is Complete Step # 24 Inspecting unit after power ON Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 69...
  • Page 70 Check Box When This Step is Complete Step # 23 Power ON the game Check Box When This Step is Complete Step # 24 Inspecting unit after power ON Check Box When This Step is Complete Jennison Entertainment Technologies Ocean Pearls Service Manual Page 70...
  • Page 71 GAME SETTINGS & PROGRAM Ocean Pearls has been designed to include a software program where all game settings are easily managed through the use of buttons on the meter assembly. Although the software is very simple to navigate, we highly recommend reading the following programming section to fully understand how to make changes to the software and how each change will affect the machine.
  • Page 72 Step # 3 Enter the programming mode Push and hold the black "ENTER" button on the right of the assembly to enter the program mode. Jennison Entertainment Technologies Ocean Pearls Service Manual Page 72...
  • Page 73 You will recognize that you have entered the software by looking at the monitor. At this point, you should see the Ocean Pearls Main Menu. NOTE: Some versions of the software will display the software or version number on this page.
  • Page 74 The button on the "RIGHT" will either ENTER the program mode and or confirm your selections. Step # 9 Changing Game Score Values Move the arrow to "Game Score Values" and press the "ENTER" button. Jennison Entertainment Technologies Ocean Pearls Service Manual Page 74...
  • Page 75 The default value is 3 balls. After making your selection, select "SAVE & EXIT" to return to the main menu. Jennison Entertainment Technologies Ocean Pearls Service Manual Page 75...
  • Page 76 Step # 15 Changing the eel bonus score values To exit the eel bonus score value page, select "SAVE & EXIT" and press the "ENTER" button to return to the main menu. Jennison Entertainment Technologies Ocean Pearls Service Manual Page 76...
  • Page 77 PROGRAM SETUP INFORMATION Step # 16 Audit information For audit purposes, the Ocean Pearls software features the ability record the cost per credit and the cost per ticket. This allows the game software to mathematically determine the ticket payout internally.
  • Page 78 After clearing the data, you will notice that all values will be reset to zero. Please note that "Tickets Per Credit" will remain at the older number until the next game is played, then this value will be updated. Jennison Entertainment Technologies Ocean Pearls Service Manual Page 78...
  • Page 79 2. If the ball falls into a slot that shows 10, the game would pay out 5 physical tickets. Jennison Entertainment Technologies Ocean Pearls Service Manual Page 79...
  • Page 80 Clearing credits owed To clear all credits owed, select "CLEAR CREDITS OWED" and press "ENTER". Step # 27 Clearing tickets owed To clear all tickets owed, select "CLEAR TICKETS OWED" and press "ENTER" Jennison Entertainment Technologies Ocean Pearls Service Manual Page 80...
  • Page 81 JET company logo. At this time, the game will initialize again. Step # 30 Exiting the software - continued After the unit has initialized, you should see either the attraction video or demo video screen. Jennison Entertainment Technologies Ocean Pearls Service Manual Page 81...
  • Page 82 Insert the USB cable or wireless transceiver into an available USB port. Step # 33 Entering the software using a keyboard Press the "V" button on the keyboard to enter the software mode. Jennison Entertainment Technologies Ocean Pearls Service Manual Page 82...
  • Page 83 Press the "W" button on the keyboard to move UP between selections or to INCREASE values within selected settings. Step # 36 Confirming selections using a keyboard Press the "J" button on the keyboard to confirm your selection. Jennison Entertainment Technologies Ocean Pearls Service Manual Page 83...
  • Page 84 OCEAN PEARLS PROPER START PROCEDURE THIS PAGE INTENTIONALLY LEFT BLANK Jennison Entertainment Technologies Ocean Pearls Service Manual Page 84...
  • Page 85 Under the rules and regulations governed by the State of New Jersey Legalized Games of Chance Control Commission, there are certain requirements for amusement and redemption games. A certain version of software has been designed to allow Ocean Pearls to be operated within the State of New Jersey. This version of the software complies with the following requirements: 1) Maximum allowable wager per player dose not exceed $10.00 per game.
  • Page 86 The above ticket payout table is for reference only. These numbers have been determined after considerable testing in field locations. This chart assumes a ticket cost of USD 0.01 (one Penney) and a desired payout of 30-35% Jennison Entertainment Technologies Ocean Pearls Service Manual Page 86...
  • Page 87 MAIN BOARD INPUTS OCEAN PEARLS - MAIN BOARD IC (74HC245N) INPUT CHART INPUT # CONTENT PICTURE COIN / CREDIT SIGNAL BILL ACCEPTOR CREDIT SIGNAL TICKET RESET SIGNAL TICKET SIGNAL # 1 TICKET SIGNAL # 2 PLAY (BALL RELEASE) BUTTON SCORE SWITCH # 1...

  • Page 88: Powering The Unit On

    ANOTHER SOCKET The Ocean Pearls input/output board utilizes 5 input IC's to control all inputs used within the game. In Ocean Pearls, FOUR of the FIVE IC's are used, those being U08, U09, U10, & U11. The remaining IC at U12 is not used to control any input function.

  • Page 89: Main Board Outputs

    MAIN BOARD OUTPUTS OCEAN PEARLS - MAIN BOARD IC (ULN2803) OUTPUT CHART OUTPUT # CONTENT PICTURE ROUND LED 1 ROUND LED 2 ROUND LED 3 ROUND LED 4 U25 IS NOT UTLIZED IN OCEAN PEARLS. THIS SPARE IC CAN BE USED IN U23, & U29 TO RECITFY POTENTIAL ISSUES WITH THOSE IC'S.
  • Page 90 MAIN BOARD OUTPUTS - CONTINUED OCEAN PEARLS - MAIN BOARD OUTPUT CHART CONTINUED OUTPUT # CONTENT PICTURE COIN METER TICKET METER TICKET DRIVER # 1 TICKET DRIVER # 2 HOLDING AREA SOLENOID PELICAN MOTOR DRIVER COIN / CREDIT LOCKOUT COLLECTION BAR MOTOR DRIVER...
  • Page 91 SWITCH # 3 (SW3) DESCRIPTION VALUE SW31 SW32 SW33 SW34 SW35 SW36 SW37 SW38 SWITCH # 3 IS NOT USED IN OCEAN PEARLS NOTICE DIP SWITCH SETTINGS ARE NOT CURRENTLY UTILIZED IN OCEAN PEARLS Jennison Entertainment Technologies Ocean Pearls Service Manual Page 91...
  • Page 92 PEG CASCADING LED CLK (6803) NOTE: VOLTAGE OF CASCADING PEG LED'S IS 5 VOLTS MT-DIR MOTOR DRIVE PCB I/O INPUT CONTENT INPUT CONTENT LEFT & RIGHT MOTOR CLK LEFT & RIGHT MOTOR MAINBOARD Jennison Entertainment Technologies Ocean Pearls Service Manual Page 92...
  • Page 93 TARGET SCORE 5-1 SEG2_1 SEG1_2 SEG2_2 TARGET SCORE 5-10 SEG1_3 SEG2_3 TARGET SCORE 5-100 SEG1_4 BONUS SCORE 1 SEG2_4 SEG1_5 SEG2_5 BONUS SCORE 10 SEG1_6 SEG2_6 BONUS SCORE 5-100 SEG1_7 SEG2_7 SEG1_8 SEG2_8 Jennison Entertainment Technologies Ocean Pearls Service Manual Page 93...

  • Page 94: Troubleshooting Guide

    As in all parts of this manual, the troubleshooting guide is color coordinated in order to quickly identify the problem, the probable cause, and the solution. When diagnosing a problem - always check the most simple things first. Should you require assistance in ordering parts for Ocean Pearls, please contact the following: JENNISON ENTERTAINMENT TECHNOLGIES...
  • Page 95 Error 9 - Step # 1 Error 9 # - Step # 2 Error 9 - Step # 3 PLAYER # 1 & # 2 SCORE INPUT IC SPARE INPUT IC CHIPS Jennison Entertainment Technologies Ocean Pearls Service Manual Page 95...
  • Page 96 Error 19 - Step # 1 Error 19 - Step # 2 Error 19 - Step # 3 PLAYER # 1 & # 2 SCORE INPUT IC SPARE INPUT IC CHIPS Jennison Entertainment Technologies Ocean Pearls Service Manual Page 96...
  • Page 97 IC believed to be faulty and then test again. If this fixes the problem - BE SURE TO MARK THE DEFECTIVE IC SO THAT YOU DO NOT USE IT AGAIN IN THE FUTURE! SPARE INPUT IC CHIPS Jennison Entertainment Technologies Ocean Pearls Service Manual Page 97...
  • Page 98 IC believed to be faulty and then test again. If this fixes the problem - BE SURE TO MARK THE DEFECTIVE IC SO THAT YOU DO NOT USE IT AGAIN IN THE FUTURE! SPARE INPUT IC CHIPS Jennison Entertainment Technologies Ocean Pearls Service Manual Page 98...
  • Page 99 IC believed to be faulty and then test again. If this fixes the problem - BE SURE TO MARK THE DEFECTIVE IC SO THAT YOU DO NOT USE IT AGAIN IN THE FUTURE! SPARE INPUT IC CHIPS Jennison Entertainment Technologies Ocean Pearls Service Manual Page 99...
  • Page 100 IC believed to be faulty and then test again. If this fixes the problem - BE SURE TO MARK THE DEFECTIVE IC SO THAT YOU DO NOT USE IT AGAIN IN THE FUTURE! SPARE INPUT IC CHIPS Jennison Entertainment Technologies Ocean Pearls Service Manual Page 100...
  • Page 101 IC believed to be faulty and then test again. If this fixes the problem - BE SURE TO MARK THE DEFECTIVE IC SO THAT YOU DO NOT USE IT AGAIN IN THE FUTURE! SPARE INPUT IC CHIPS Jennison Entertainment Technologies Ocean Pearls Service Manual Page 101...
  • Page 102 IC believed to be faulty and then test again. If this fixes the problem - BE SURE TO MARK THE DEFECTIVE IC SO THAT YOU DO NOT USE IT AGAIN IN THE FUTURE! SPARE INPUT IC CHIPS Jennison Entertainment Technologies Ocean Pearls Service Manual Page 102...
  • Page 103 IC believed to be faulty and then test again. If this fixes the problem - BE SURE TO MARK THE DEFECTIVE IC SO THAT YOU DO NOT USE IT AGAIN IN THE FUTURE! SPARE INPUT IC CHIPS Jennison Entertainment Technologies Ocean Pearls Service Manual Page 103...
  • Page 104 IC believed to be faulty and then test again. If this fixes the problem - BE SURE TO MARK THE DEFECTIVE IC SO THAT YOU DO NOT USE IT AGAIN IN THE FUTURE! SPARE INPUT IC CHIPS Jennison Entertainment Technologies Ocean Pearls Service Manual Page 104...
  • Page 105 IC believed to be faulty and then test again. If this fixes the problem - BE SURE TO MARK THE DEFECTIVE IC SO THAT YOU DO NOT USE IT AGAIN IN THE FUTURE! SPARE INPUT IC CHIPS Jennison Entertainment Technologies Ocean Pearls Service Manual Page 105...
  • Page 106 TROUBLESHOOTING THIS PAGE INTENTIONALLY LEFT BLANK Jennison Entertainment Technologies Ocean Pearls Service Manual Page 106...
  • Page 107 TROUBLESHOOTING THIS PAGE INTENTIONALLY LEFT BLANK Jennison Entertainment Technologies Ocean Pearls Service Manual Page 107...
  • Page 108 Check to make sure the linkage is connected. Contact JET for further instructions on troubleshooting the motor. Only continue with the following steps if JET has advised on replacing the motor or motor assembly. Jennison Entertainment Technologies Ocean Pearls Service Manual Page 108...
  • Page 109 CHANGING MOTORS ON THE EEL OR PELICAN BONUS Step # 3 Removing the left monitor access panel The monitor in Ocean Pearls was designed to slide in and out through two different access points - the left or the right side. All monitor connections are on the left side (facing the machine).
  • Page 110 This is the suction cup device that attaches directly to the glass. When installing and pressing down on the device - DO NOT apply too much pressure to the monitor glass. Jennison Entertainment Technologies Ocean Pearls Service Manual Page 110...
  • Page 111 DO NOT REMOVE THE MONITOR FROM THE MACHINE. DAMAGE TO THE MONITOR BY REMOVING IT VOIDS ANY WARRANTY ON THE MONITOR ITSELF. Jennison Entertainment Technologies Ocean Pearls Service Manual Page 111...
  • Page 112 You must also unscrew the four nuts that are securing the assembly to the acrylic backboard. Pull the assembly straight back Jennison Entertainment Technologies Ocean Pearls Service Manual Page 112...
  • Page 113 CAREFUL WHEN INSTALLING THE CONNECTORS AS THE PINS CAN BEND VERY EASY. MAKE SURE THE PINS ARE ALIGNED BEFORE PUSHING BACK INTO THE MONITOR. Jennison Entertainment Technologies Ocean Pearls Service Manual Page 113...
