ROGATOR/TERRAGATOR C RAVEN RS1™ ISO GUIDANCE AND STEERING INSTALLATION GUIDE
ROGATOR/TERRAGATOR C RAVEN RS1™ ISO
GUIDANCE AND STEERING INSTALLATION GUIDE
This quick guide provides the installation instructions for the RS1™ on an ISO Rogator or TerraGator C series
machine. For calibration and operation information, refer to the Operation Manual (P/N 016-4010-001).

WHEEL ANGLE SENSOR AND VALVE CALIBRATION

To ensure proper operation, calibrate the Wheel Angle Sensor (WAS) and Steering Valve before calibrating RS1.
IMPORTANT:
Ensure the machine's hydraulic oil is warm prior to the steering valve calibration sequence.

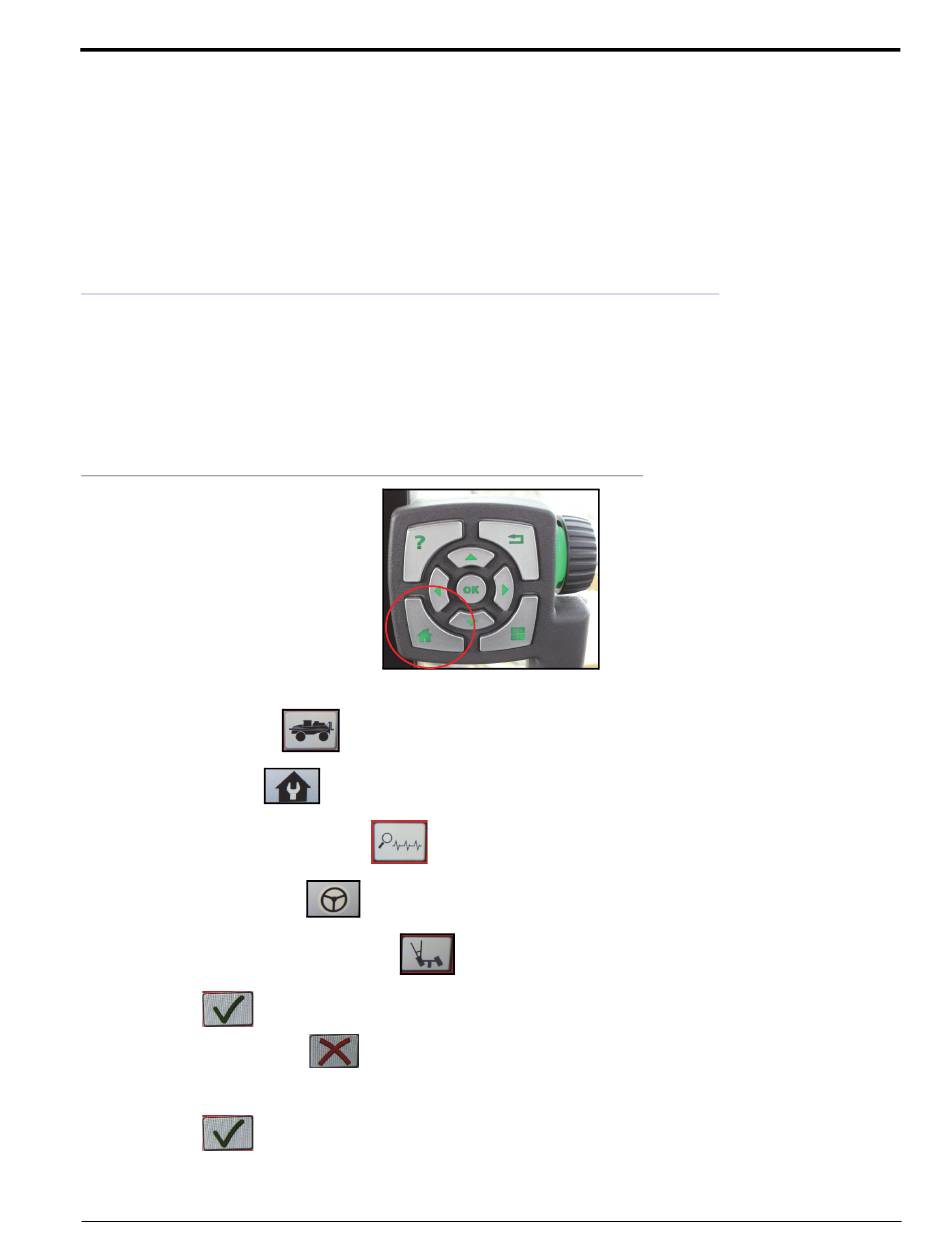

1. Press Home on the joystick.
FIGURE 1. Home on Joystick
2. Select the Machine icon
3. Select Home Settings
4. Select Maintenance and Diagnostics
5. Select Steering Calibrations
6. Select Steering Angle Sensor Calibration
7. Press Accept
.
NOTE:
At any point press
8. While moving slowly, turn the machine steering wheel all the way to the left.
9. Press Accept
.
10. While moving slowly, turn the machine steering wheel all the way to the right.
Manual No. 016-5033-155 Rev C2. E32620 5/19
.
.
.
.
. A Start steering angle sensor calibration prompt will open.
to stop the calibration process.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RS1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Raven RS1

Summary of Contents for Raven RS1

  • Page 1 ROGATOR/TERRAGATOR C RAVEN RS1™ ISO GUIDANCE AND STEERING INSTALLATION GUIDE This quick guide provides the installation instructions for the RS1™ on an ISO Rogator or TerraGator C series machine. For calibration and operation information, refer to the Operation Manual (P/N 016-4010-001).
  • Page 2 17. Press Accept on the Calibration completed successfully prompt. INSTALLATION DIAGRAM The image below provides a basic overview of the installation of the RS1. Refer to the next sections for detailed installation information. FIGURE 2. RS1 RoGator/TerraGator C Series Installation Diagram...
  • Page 3 Rubber Washer Latch Nut 3. Mount the RS1 base plate to the RS1 unit using the four bolts provided. It should be mounted so the mounting tabs are to the right and the latch is to the left. Manual No. 016-5033-155 Rev C2. E32620 5/19...
  • Page 4 Latch Bracket 5. Place the RS1 unit roof bracket on the cab with it oriented as shown in Figure 7 on page 5. The holes on the corners of the roof bracket will line up with existing cab top mounting holes.
  • Page 5 FIGURE 8. RS1 Unit Orientation Latch Handle Towards Machine Front 9. Connect the 12-pin Deutsch connector on the 115-4010-002 cable to the mating receptacle on the RS1 unit. FIGURE 9. Cabling Connection on RS1 Unit Cellular Antenna (if applicable)
  • Page 6 Mating Connector on Roof 11. If applicable, connect the cellular antenna to the back of the RS1 unit and secure the antenna to the roof bracket using the magnet attached to the antenna. VIPER 4 AND VIPER 4+ ISO CONNECTION.
  • Page 7 ROGATOR/TERRAGATOR C RAVEN RS1™ ISO GUIDANCE AND STEERING INSTALLATION GUIDE FIGURE 12. Connection on Back of Viper 4 3. Ensure the two 2-pin Deutsch ISO CAN connectors on the Viper 4 ISO CAN harness are connected to each other and are not plugged into dust caps.
  • Page 8 OPERATION Refer to the RS1 Calibration and Operation Manual (P/N 016-4010-001) for instructions on configuring, calibrating, and operating RS1. Please note the location of the master switch and the resume switch on the machine because they are needed for operation.
