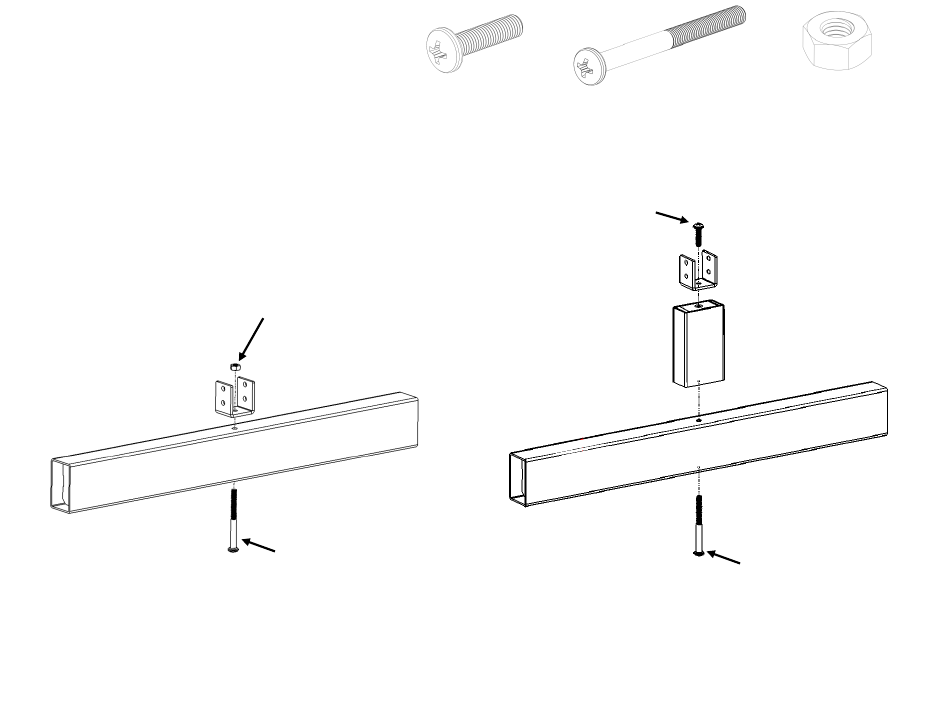

STEP 2: ASSEMBLE LINKS AND
RISERS
NOTE:
Link Length will be 22" long for 24" deep work surface
assemblies, and 28" long for 30" deep work surface assemblies.
Without Riser
Assembly
1/4-28 X 1" Pan Head
Machine Screw
(qty 1 for optional
1/4-28 Hex Nut
1/4-28 X 3" Pan
Head Machine Screw
1/4-28 X 3" Pan Head
Machine Screw
riser)
1/4-28 X 1" Pan
Head Machine Screw
1/4-28 Hex Nut
(qty 1)
(qty 1)
1/4-28 X 3" Pan
Head Machine Screw
With Riser
Assembly
4
