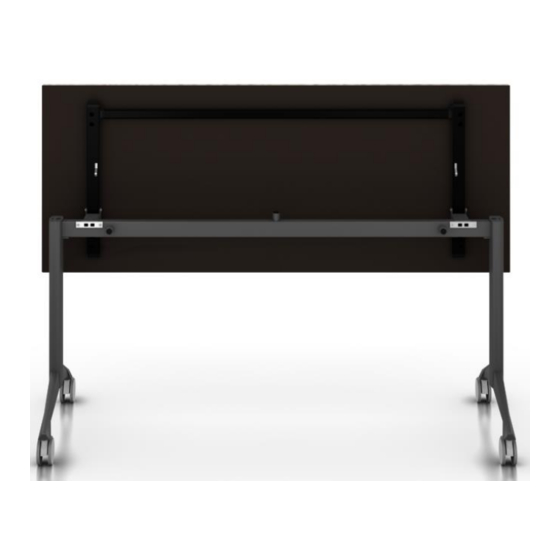

- Page 1 Zori Flip Table Flip Table w/ Spacer Installation Instructions ZI0003 – REV A...
- Page 2 INSTALLATION GUIDE 3) Assembly Overview Fig 3.1 3.1.1) Locate the pre-assembled legs and pre-assembled flip frame sub-assembly 3.1.2) Locate the M8 x 70mm bolts, M8 x 55mm bolts , and Spacers 3.1.3) Slide the legs onto the flip frame so that the top tab inserts inside the tube and the bottom tab is outside of the bottom face of the tube.
