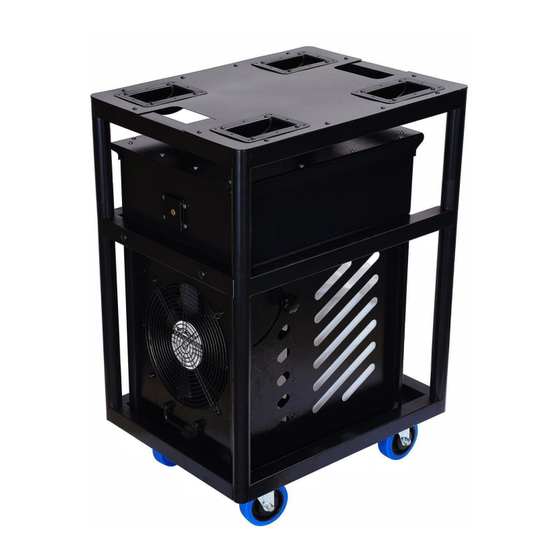

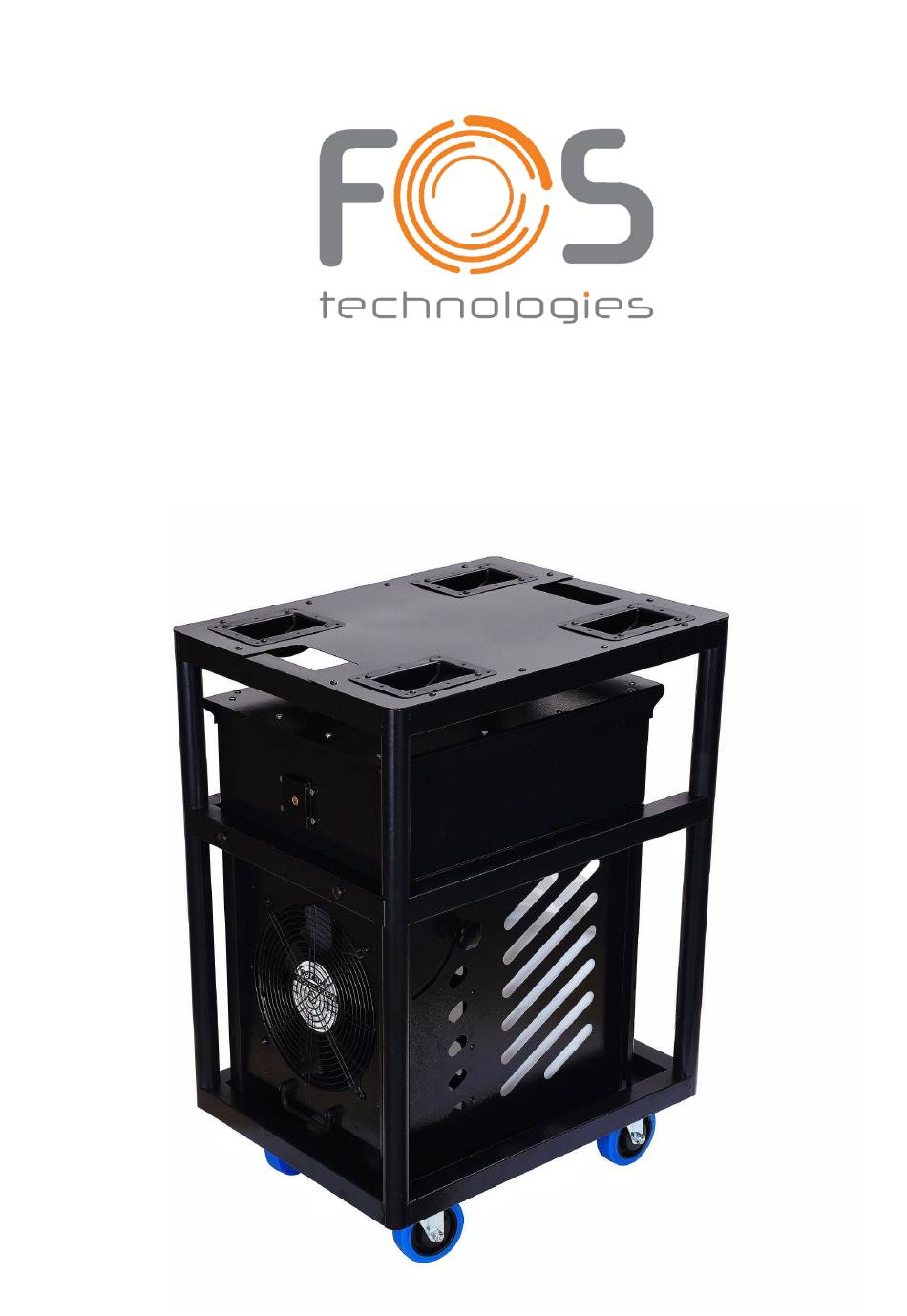

- Page 1 FOS Arena Haze IP65 USER MANUAL...
- Page 2 Introduction Thank you very much of choosing the FOS Arena Haze IP65 wave haze machine. Before operating the device, we strongly suggest reading the user manual carefully. By following the instructions in the user manual, will ensure your safety, achieve the best effect, as well as understanding the right way to maintain the machine time to time, to prolong the products’...
-
Page 3: Unpacking And Inspection
Use grounded electrical outlet. Prior to use, determine that unit is installed at the rated voltage. Turn off or unplug when not in use. No user serviceable and modifiable parts inside, from unqualified personnel. Do not disassemble the housing and do any modification. Danger of fire, damage, or injury. -
Page 4: Control Panel Operation
Operation Control Panel Operation The machine can be operated with onboard digital control interface. Button Function Explanation Interval set (5-200sec) Duration set (5-200sec) Timer mode setting Haze Volume 1-100% Fan Speed 1-100% [MENU] DMX512 Address 001-512 Fluid Sensor ON/OFF [TIMER] [UP] Up &... -
Page 5: Dmx Operation
DMX Operation Connect the machine to a DMX controller or to one of the machines in the DMX chain. The machine uses a 3-pin XLR connector for DMX connection, the connector is located on the rear of the machine. DMX Connector Pin Assignment The machine provides a 3- pin XLR connector for DMX connection. - Page 6 Technical specifications • Model: FOS Arena Haze IP65 • Voltage: AC 220-240 V 50/60 Hz • Fuse: 25A/250 V • Power: 2500 W • Heat-up Time: 7 min • Output: 55,000 cuft/min • Fluid Consumption Rate: 1-95ml/min • Fluid tank capacity: 12L •...
