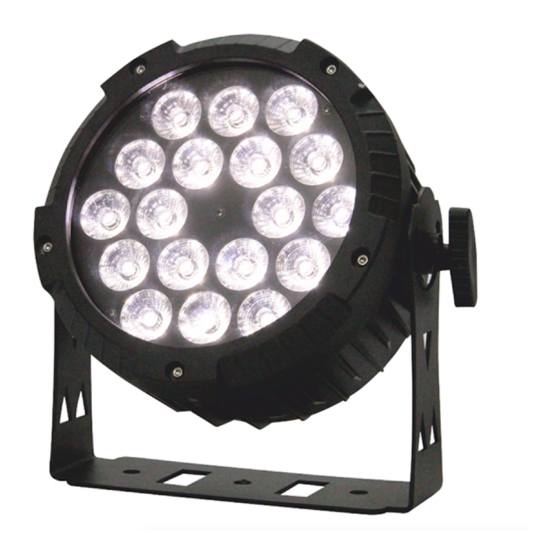

Summary of Contents for FOS Technologies PAR 18x12W PRO

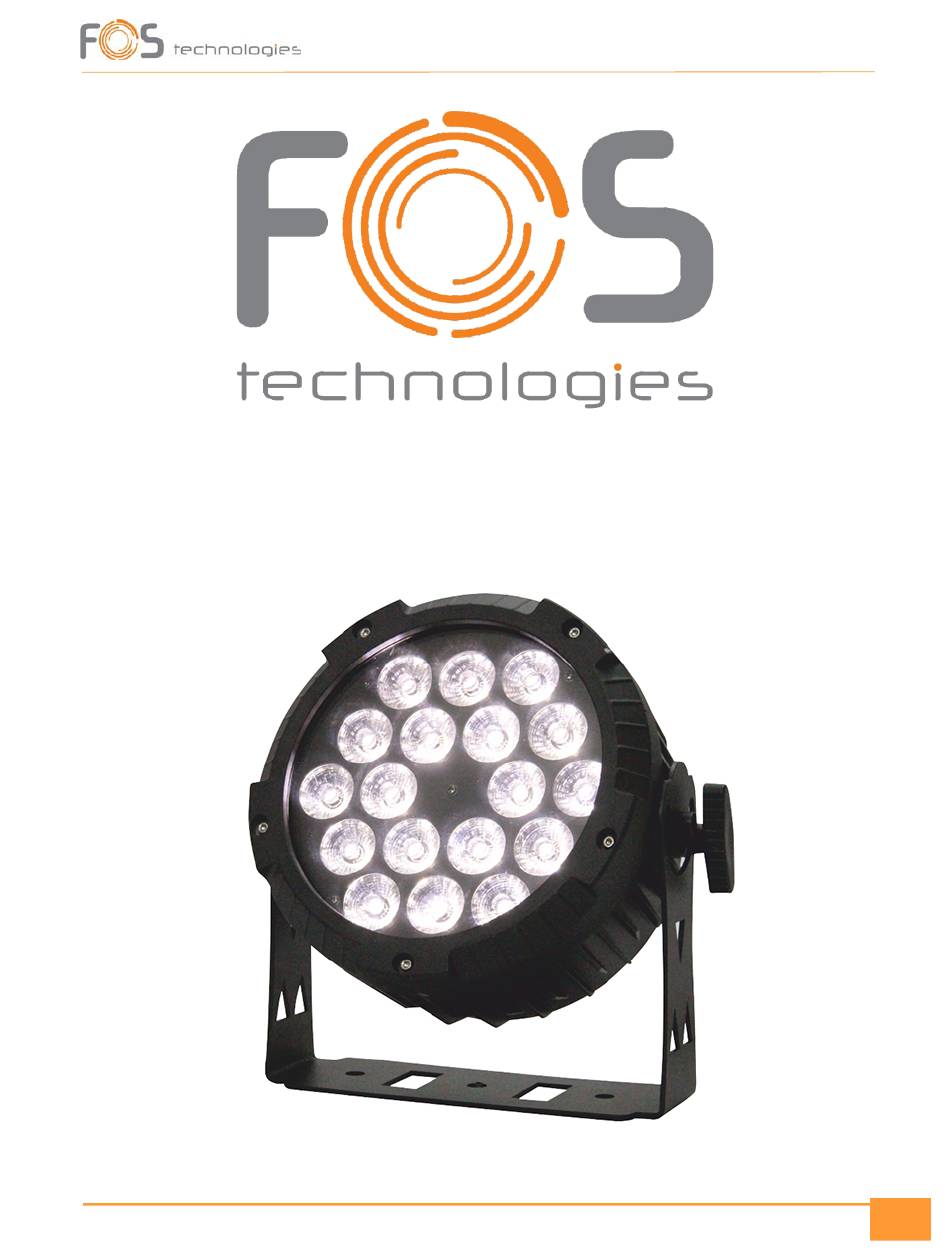

- Page 1 FOS PAR 18x12W PRO...
-
Page 2: Product Specifications
PRODUCT SPECIFICATIONS TECHNICAL SPECIFICATION Voltage: 90/240 Volt AC, 50/60 Hz. Power Consumption: 220 Watt. Light Source: 18x 12W RGBWA LEDs Control: Auto, Music, DMX512 DMX Channels: 5 / 11. Protection Class: IP20 (suitable for indoor use only) Width: 270 mm Depth: 120 mm Height: 260 mm Dimensions including the base... - Page 3 The protection level of a housing is set by applied standards. For classification there is used the IP-Code. It contains the declaration „IP“and two following numbers. The first number characterizes the protection against harmful effects of solids, the second is rating the water protection. It is important to distinguish whether encapsulation and harmful effect! There can be housing that is not capsuled completely but still avoids harmful effect of solids or water.
- Page 4 Installation Hanging: The fixture can be mounted in a hanging position using the supporting bracket. The bracket should be secured to the mounting truss or structure using a standard mounting clamp. Please note that when hanging the unit, a safety cable should also be used. UPRIGHT: The fixture can be mounted in an upright or sitting position using the supporting brackets.
- Page 5 5 Channels 1. RED: linear dimming from 0 to 100% 2. GREEN: linear dimming from 0 to 100% 3. BLUE: linear dimming from 0 to 100% 4. WHITE: linear dimming from 0 to 100% 5. AMBER: linear dimming from 0 to 100% 11 Channels 1.
