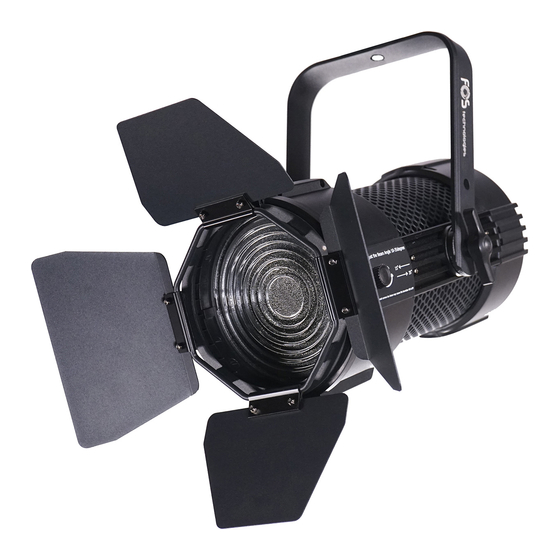

- Page 1 FOS 200W Bicolor LED Fresnel FOS 200W Bicolor LED Fresnel 200W Bicolor LED Fresnel RoHS User Manual Please read this user manual before using this product！ Keep it for further reference!
-
Page 2: Table Of Contents
FOS 200W Bicolor LED Fresnel FOS 200W Bicolor LED Fresnel installation and operation information of this LED fixture, it’s very useful for user to install and operate the light. Please strictly abide by the relevant instruction for the installation INDEX and operation. -
Page 3: Ⅱ Overview And Dimensions
FOS 200W Bicolor LED Fresnel FOS 200W Bicolor LED Fresnel Ⅱ OVERVIEW AND DIMENSIONS in one interconnected daisy chain. Before using the fixture, check that all power distribution equipment and cables are in perfect condition and rated for the current requirements of all connected devices. Always ground (earth) the fixture electrically. - Page 4 FOS 200W Bicolor LED Fresnel FOS 200W Bicolor LED Fresnel Put bushing and chuck onto the cable. Prepare cable as shown above. The power cable must be a three-conductor 2.5mm2 cable. Insert the wire into the terminals and fasten the clamping device by a flat screwdriver. The power cable must be a three-conductor 2.5mm2 cable.
-
Page 5: Ⅴ Control Pannel
FOS 200W Bicolor LED Fresnel FOS 200W Bicolor LED Fresnel MENU Ⅴ CONTROL PANNEL Main menu NOBS ONTROL 01.Address = 001 02.Mode = Meeting DMX Std Mode Manual DMX Ext Rotating the "Mode" knob to setting the main menu, press to enter. 03.Language= English Rotating the "Manual"... -
Page 6: Ⅵ Dmx Protocol
FOS 200W Bicolor LED Fresnel FOS 200W Bicolor LED Fresnel Ⅵ DMX PROTOCOL 010←→255 CT from 3200K to 5600K 1.DMX512 S MODE (2- LED) HANNEL 3. M MODE ( DMX C EETING HANNEL NEED CONTROL BY SPECIAL CONTROL BOX HANNEL EETING HANNEL Name... -
Page 7: Ⅷ Common Instruction
FOS 200W Bicolor LED Fresnel FOS 200W Bicolor LED Fresnel Ⅷ COMMON INSTRUCTION Control mode: wired DMX /manual control. Control panel: TFT color display screen & two dimming knobs. The light uses international 3 pins DMX signal cannon for DMX in and DMX out; Central illumination: 5 meters 4760LUX (5600K, 15 °) Protection class: IP20 The light uses blue LCD display to show the parameter.
