Connecting the External Power Supply
To connect an external power supply for the PoE ports, do the following:
Electrical hazard – risk of damage to equipment
Only connect the external PoE power supply to the terminals 5 and 7.
1.
2.
3.
4.
RUGGEDCOM RSG2100P
Installation Manual, 01/2020, C79000-G8976-1041-16
CAUTION
Remove the terminal block cover.
If a screw-type terminal block is installed, remove the screws from terminals 5
and 7. Use these screws along with #6 ring lugs to secure the wires to the termi-
nal block.
Connect the positive wire from the power source to terminal 5 (+/L) on the ter-
minal block.
1
3
3
3
Screw-Type Terminal Block
1
Pluggable Terminal Block
2
Jumper
3
Terminal 4 (Chassis Ground)
4
Terminal 5 (+/L)
5
Terminal 7 (-/N)
6
Chassis Ground Terminal
7

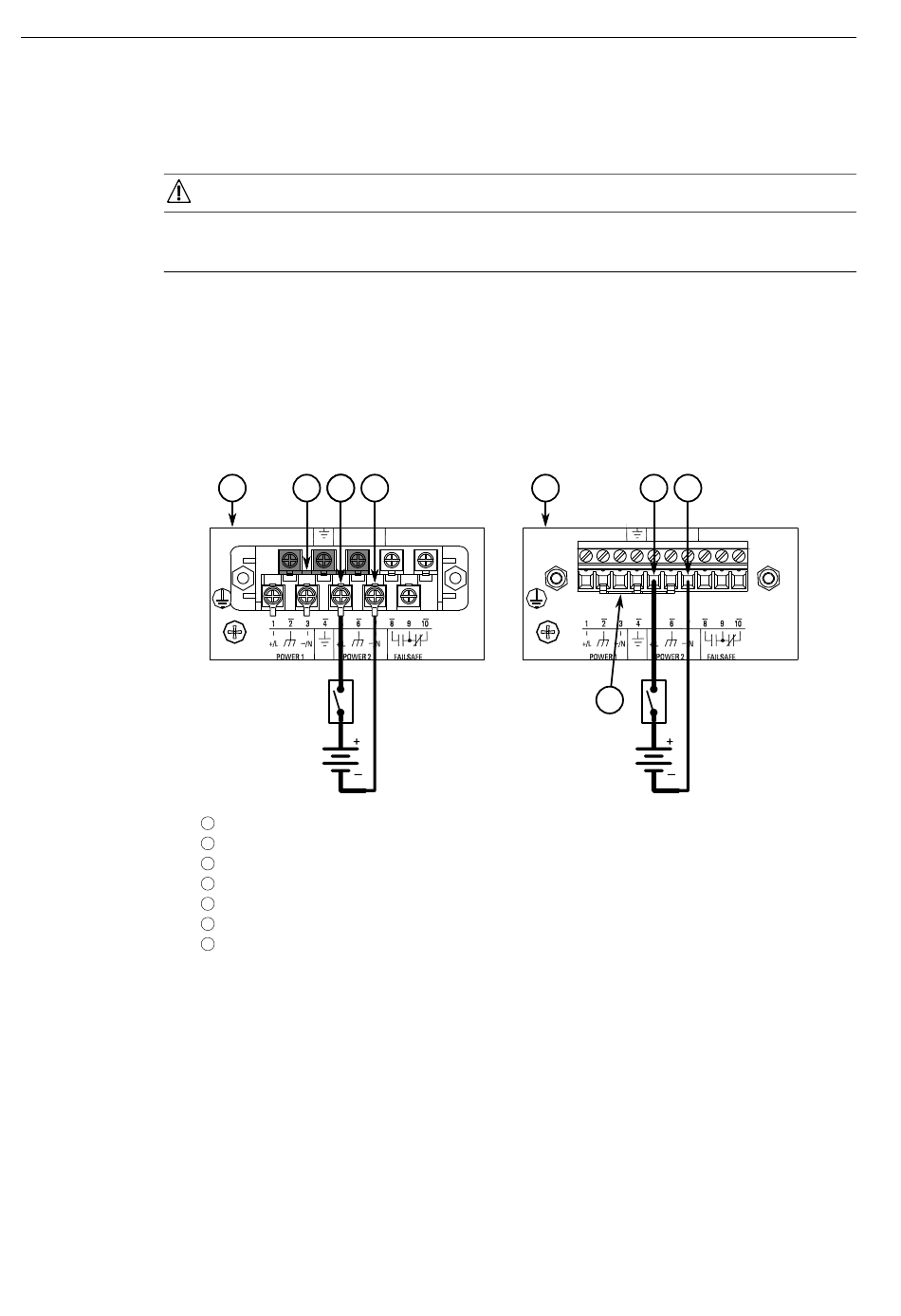

Figure 2.7
Terminal Block Wiring
Connect the negative wire from the power source to terminal 7 (-/N) on the ter-
minal block.
4
Installing the Device
2.5.2 Connecting External PoE Power
2
3
4
1
17
