Wristband, Dummy Positioning and Digit Assembly

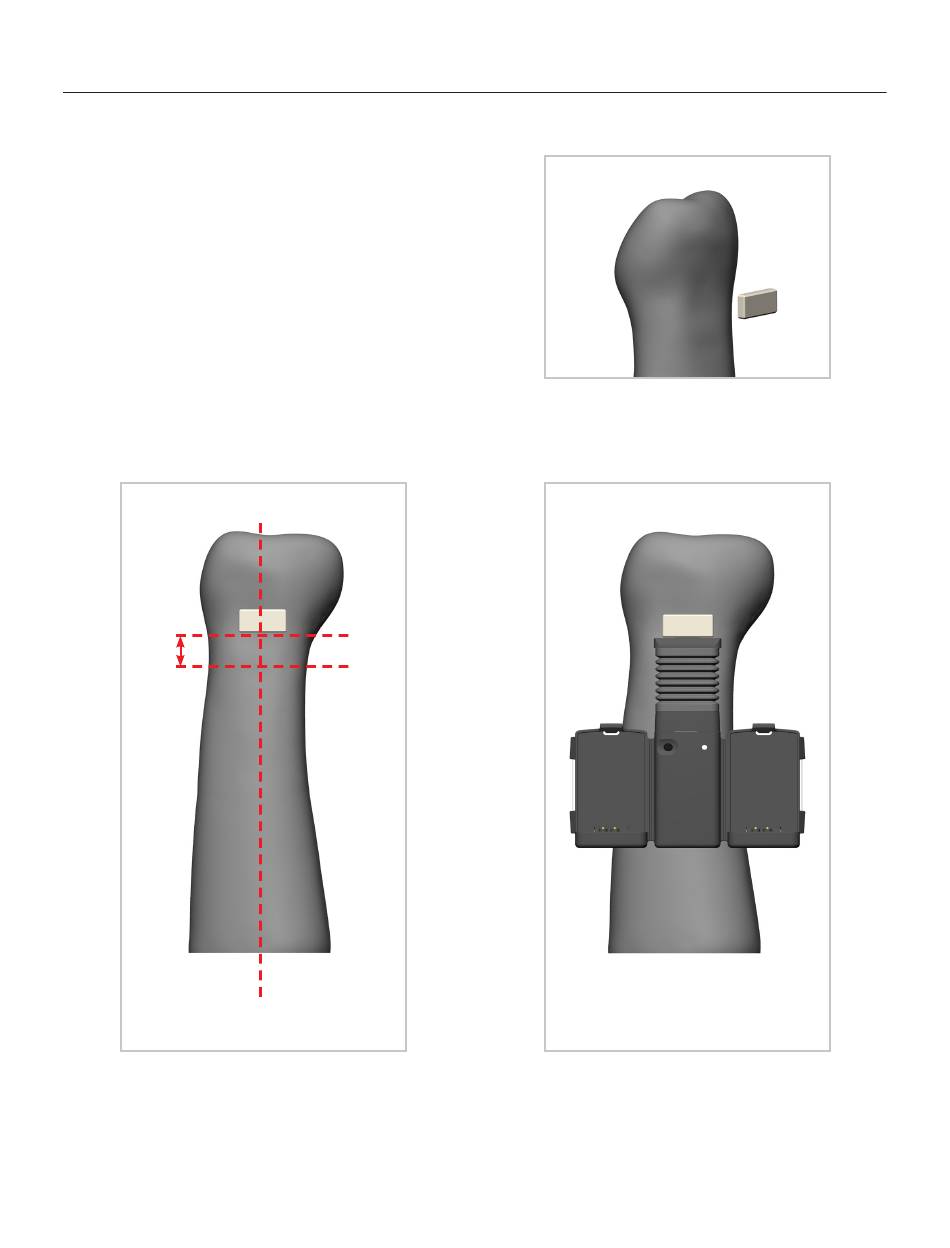

Fig. 1:
1.1

Positioning of the Socket Terminal Dummy

Place the Socket Terminal Dummy on the Dorsal surface
of the positive cast (fig. 1). The position should be central
to the midline of the wrist and elbow joints. A distance of
30 mm should be left between the Socket Terminal Dum-
my and the center of the wrist joint to enable good range of
movement at the wrist (fig. 2).
Fig. 2: Fig. 3:
30mm
Midline Final position of Wristband
