Completing the Wristband Assembly

Carefully, unplug the PCB from the wristband assembly.
Remove the two M2.5 Screws from the underside of the
wristband and remove the bellows assembly (fig. 48).
Slide the bellows cover back into position over the bellows.
Bond the bellows cover to the bellows at either end using a
few spots of superglue.
Reattach the bellows by pushing the connector from the
bellows into the connector from the wristband and insert
the two M2.5 screws (fig. 50).

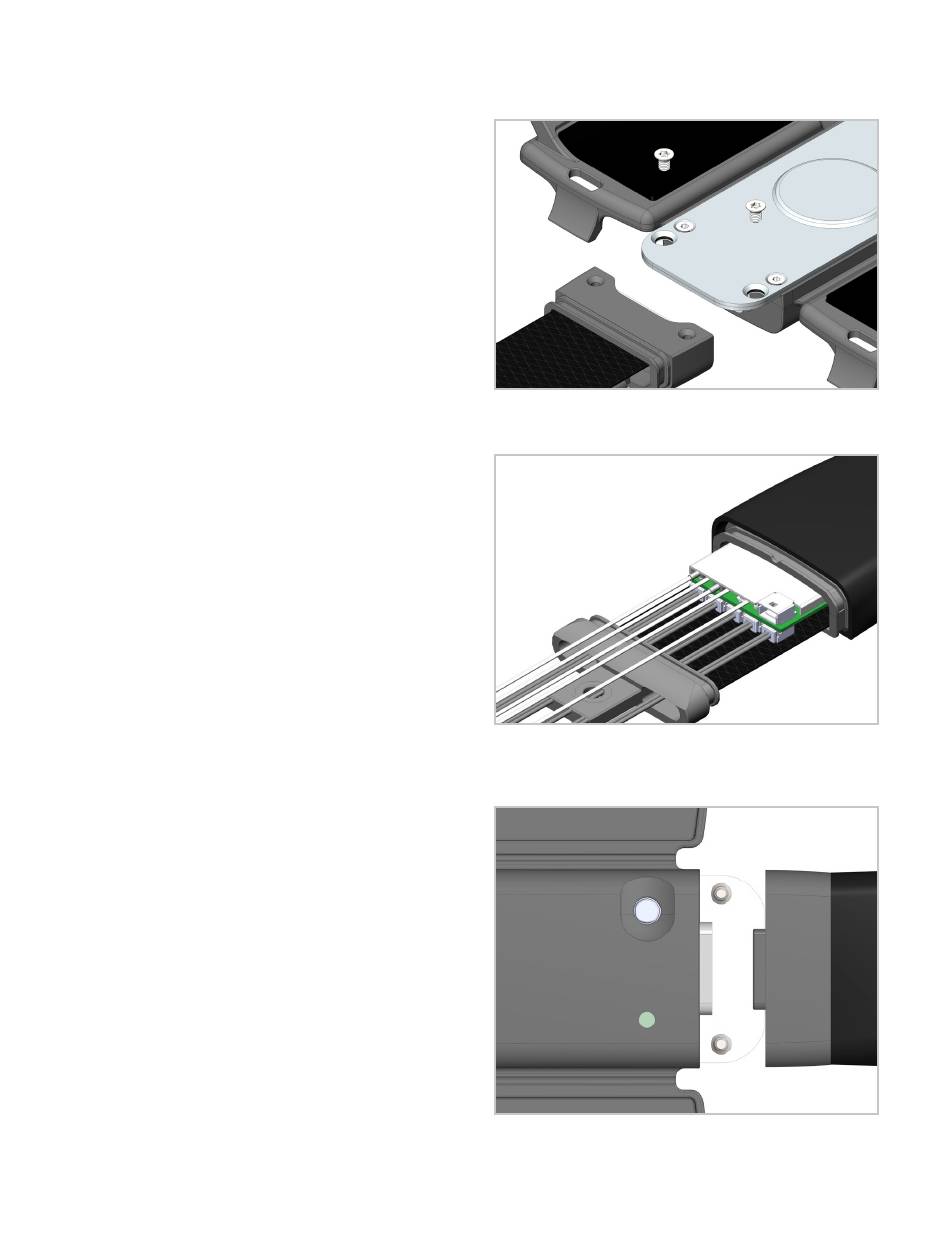

Fig. 48:
Fig. 49:
Fig. 50:
