Removing the Electrode Cables

If the electrode cables need to be repositioned, use the ex-

traction tool supplied (fig. 44).

Insert the end portion of the tool under the connector

flanges and pull off vertically, in the direction of the con-

nector mating axis (fig. 45 and 46).

Pull the connector up vertically with the re-

moval tool or the connector will be damaged.

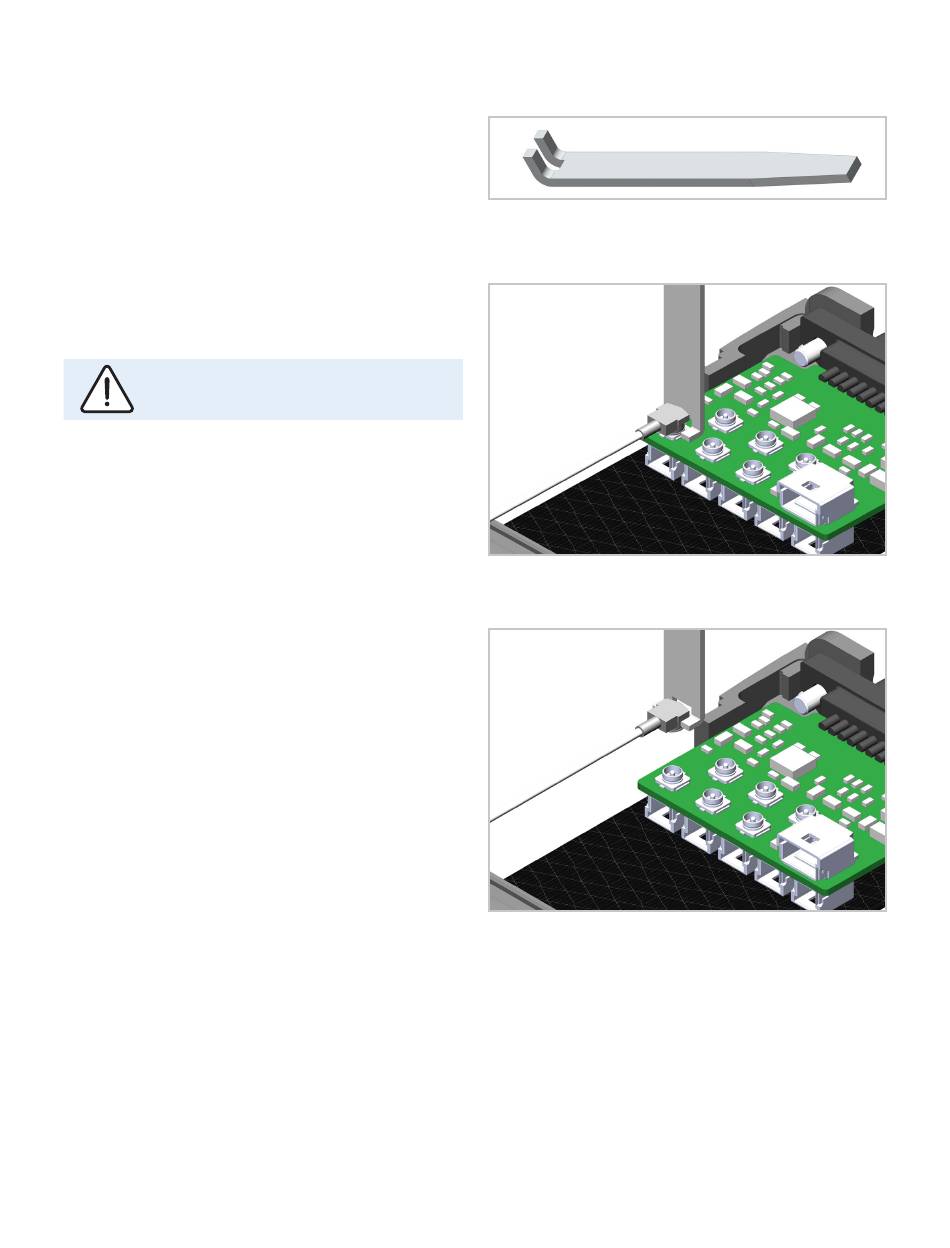

Fig. 44:

Fig. 45:

Fig. 46:
