- Page 1 ™ Clinician Manual...
- Page 2 ™ This document provides instruction for prosthetists in the fitting and servicing of i-digits™ and should be read in full prior to fitting. It is highly recommended that the use of this manual is made in conjunction with instruction from a clinician experienced in upper limb and myoelectric prostheses.
-
Page 3: Table Of Contents
1.0 i-digits™ 1.1 Product Description 1.2 Intended Use 1.3 User Selection 1.4 Prosthesis Overview: Control Options 2.0 Componentry 2.1 Wristband componentry 2.2 Input options and muscle control sites 2.3 Battery Charging 3.0 Covers 3.1 Cover Options 4.0 Grip Review 4.1 Grip Options 5.0 Support Information... -
Page 4: I-Digits
Intended Use i-digits™ is intended to be used by patients with partial hand loss or deficiency. Devices are suited to patients with any 3, 4 or 5 digit loss, while patients with 1 or 2 digit loss... -
Page 5: User Selection
4 potential triggers: hold open, double impulse, triple im- app control: pulse and co-contraction. i-digits™ can access a grip at the touch of an icon on the my i-limb™ app and biosim™ app, enabling all automated grips to be available. These are called quick grips™. -
Page 6: Componentry

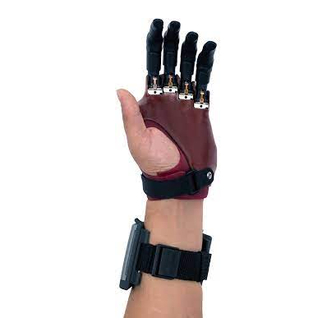

Componentry Fig. 1: Prosthesis overview Motorized Digit Knuckle Wristband and batteries Palmer view Dorsal view This illustration above (fig.1) depicts an i-digits™ for users with sound thumb and 4 i-digits. 6 of 18... -
Page 7: Wristband Componentry
The device label can be found on wristband of device, un- derneath the battery. The i-digits device is assembled in combination with a socket designed for the requirements of the individual user. Fig. 2: Input options Input options and muscle control sites... -
Page 8: Battery Charging
Charging time from full discharge is approximately 2 hours. i-limb ® Power Pack batteries for i-digits™ should only be charged using the battery charger (fig.6) supplied. Place Fig. 6: Charger base unit the batteries in the charger as illustrated. Insert the char- ger lead from the mains charger into the charger base unit. -
Page 9: Covers
Covers Cover Options Silicone digit covers will be provided for i-digits™ device. Digit covers will be ready to fit and are designed to cover each digit. Approved digit covers must be used with each digit of the device. The warranty will become void if the device is used without an approved cover. -
Page 10: Grip Review
The following features catalog reviews the various available grips and provide a functional description of each.The range of grips available is dependent on the i-digits™ device configurations and the level of amputation. The range of grips are represented below as per a 5 digit device. - Page 11 ADDITIONAL GRIP AND GESTURE OPTIONS Thumb Park Continuous Thumb Park Quick all four fingers remain open and switch all four fingers remain open and switch off, only the thumb will move. off, for 1.5 seconds the thumb will close and then automatically return to an open position.
-
Page 12: Support Information
Support Information Storage and Maintenance Always turn off the i-digits™ device when not in use. Aim to charge the battery each day after use. Replace the batteries every 12 months. Ensure i-digits™ device is serviced every 12 months. Power supply information: Manufacturer: XP Power Model No.: VEP36US12... -
Page 13: Troubleshooting
Troubleshooting Problem Action Prosthesis does not operate Ensure the prosthesis is switched on Ensure the battery is connected Ensure the battery is charged Check the electrodes have good contact One digit does not operate Check if the digit operates correctly using the Health Check in biosim™ Device stops halfway during Electrode settings may need to be adjusted an action... -
Page 14: General Safety, Warnings And Precautions
Only approved Ossur accessories and tooling may be used with i-digits™. Do not use an i-digits™ device to operate your mobile device whilst it is connected to a mains outlet, as this can affect EMG signal. Failure to comply with the above guidelines will invalidate the warranty. -
Page 15: User Information
Prosthetist Name & Contact Information: ......................Therapist Name & Contact Information: ......................It is recommended that the above information is also included in the user notes. If you experience technical problems with the i-digits™ device contact Customer Support 15 of 18... -
Page 16: Appendix
Time from full open to full close 0.8 seconds Environmental Conditions Hazardous Area Classification i-digits™ device is not intended for use outside the boundaries of the environments listed below. The user of i-digits™ device should assure that it is not used in such environments. Condition Level Maximum temperature +70˚c... - Page 17 Degree of protection – IP22 Serial Number For i-digits™ devices: The unique serial number for i-digits™ devices is 2 letters followed by 6 digits, alpha / numeric number. WEEE Compliance: This marking on the product, packaging, accesso- ries or literature indicates that the product contains electronic compo- nents and/or batteries that should not be disposed of in regular waste at the end of its usable life.
- Page 18 Touch Bionics by Össur North America Europe International Touch Bionics Inc. Touch Bionics GmbH Touch Bionics Ltd. 35 Hampden Road Langer Anger 3 Unit 3, Ashwood Court Mansfield MA 02048 69115 Heidelberg Oakbank Park Way Germany Livingston EH53 0TH +1 855 MY iLIMB (694 5462) +49 6221 357 9060 +44 1506 438 556 info@touchbionics.com...
