4. Installing the chimney

Install the concentric flue duct as indicated by ONTOP - METALOTERM. The only authorised
pipes are ONTOP Metaloterm™. ONTOP-METALOTERM tested our appliances with their
conduct and we only guarantee a good working of the appliance with those. Between the
external wall of the pipe and the wall or the ceiling, you should allow for a clearance of
at least 50mm and protection that is suitable against temperatures of around 130°C. The
passage of the front panel cowl in the external wall must be filled in using silicone mastic.

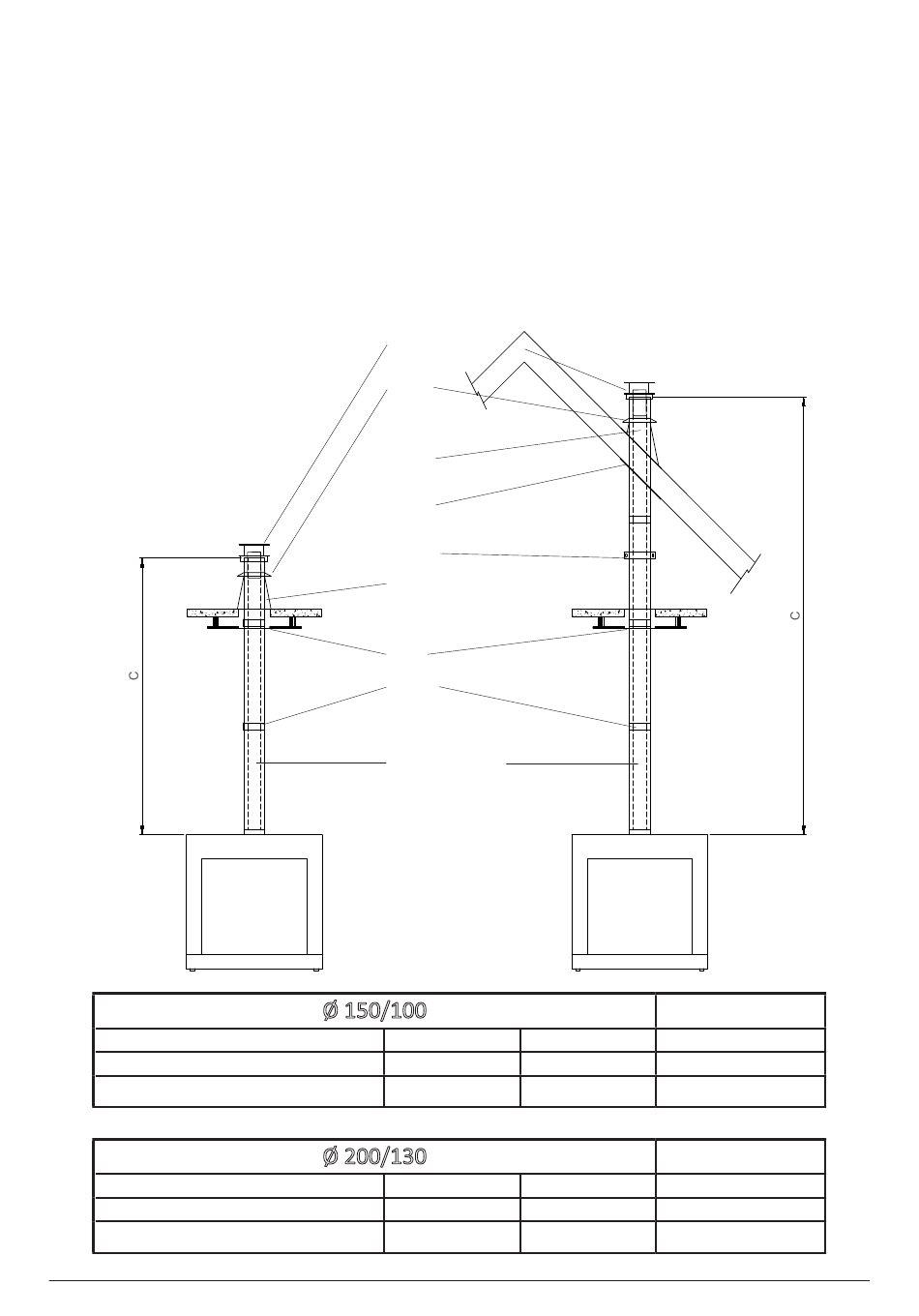

4.1 ROOF EXIT (C31)
Appliance
Venus True Vision 730
Venus True Vision 850
Appliance
Venus True Vision 730
Venus True Vision 850
Instructions for installation and use - Venus True Vision Gas
USDVC13+USAB
USSR
USLS
USCP
USMB
USDP
USR
USKB
US 100/50/25
Ø 150/100
C (min)
3 m
3 m
Ø 200/130
C (min)
2 m
2 m
C (max) Restriction (as from 3m)
17m
17m
C (max) Restriction (as from 3m)
9m
9m
English
Ø 60
Ø 60
Ø 60
Ø 60
