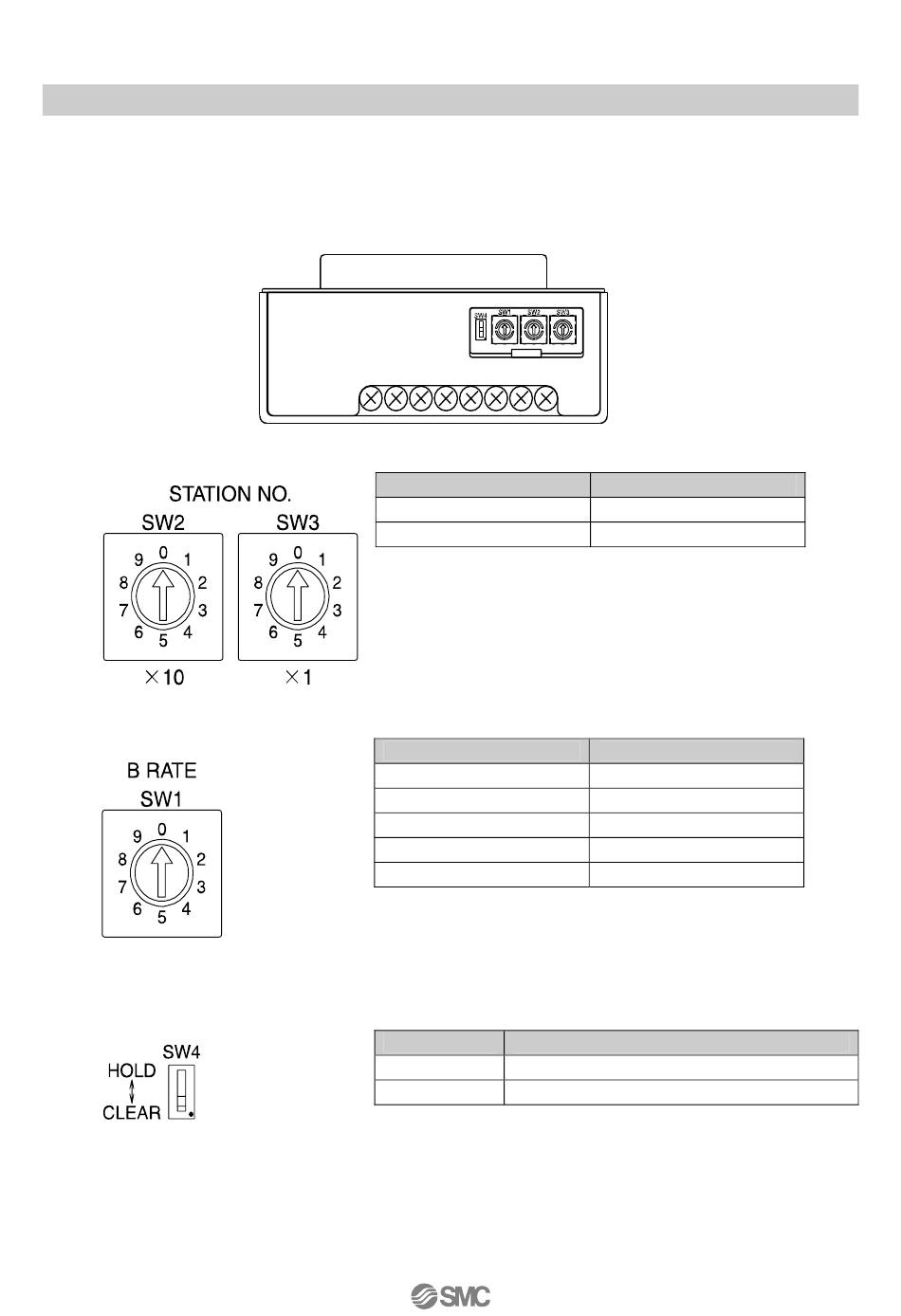

•Switch setting
•The setting for station no. and communication speed can be done with rotary switches in SI unit cover.
The setting for HOLD/CLEAR can be done with DIP switch in SI unit cover. The setting shall be done when
the power for SI unit is turned off.
• Station number setting
• Setting of transmitting speed
•
HOLD/ CLEAR settiing
Seting
×10
×1
∗The station no. should be any of the numbers from 01 to 64.
When numbers 00 or 65 or more is set, "L ERR" will light up.
∗The station no.cannot duplicate. It will cause mounting condition
error.
∗The setting at shipment is 00.
Seting
0
1
2
3
4
∗The setting for communication speed should be in range
from 0 to 4.
If the setting is out of the range, "L ERR" will light up.
After turning the power off, correct the number.
∗Set the same communication speed as the master station.
∗The setting at shipment is 0 (156 kbps).
HOLD/CLEAR
CLEAR
HOLD
∗The setting at shipment is CLEAR.
-10-
Setting range
0 to 6
0 to 9
Transmitting speed
156 kbps
625 kbps
2.5 Mbps
5 Mbps
10 Mbps
Function
Clear the output when errors occur.
Hold the output when errors occur.
No.EX※※-OME0011-D
