12. Access the live view. For details, see 2.1 Accessing the Live View,
GV-IPCam H.264 Firmware Manual .
13. Adjust image clarity using the GV-IP Device Utility program. For
details, see 2.2 Adjusting Image Clarity, GV-IPCam H.264 Firmware
Manual .

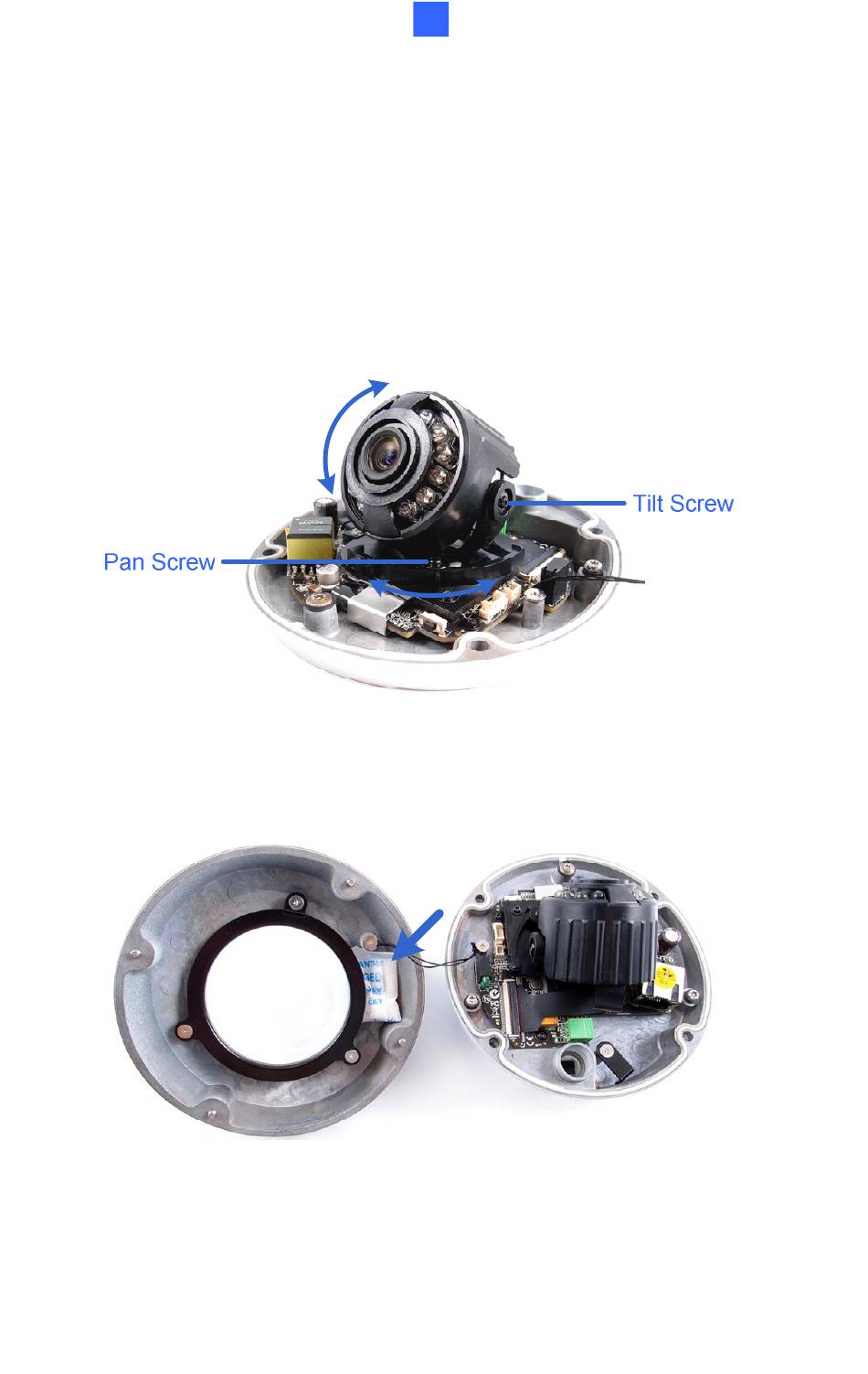

14. Loosen the tile screw and pan screw, adjust the angles based on the
live view as needed, and tighten the screws again.
15. Attach the silica gel bag to the place indicated below, and secure the
housing cover using the torx wrench.
Target Mini Fixed Rugged Dome
4
Figure 4-13
Figure 4-14
37
