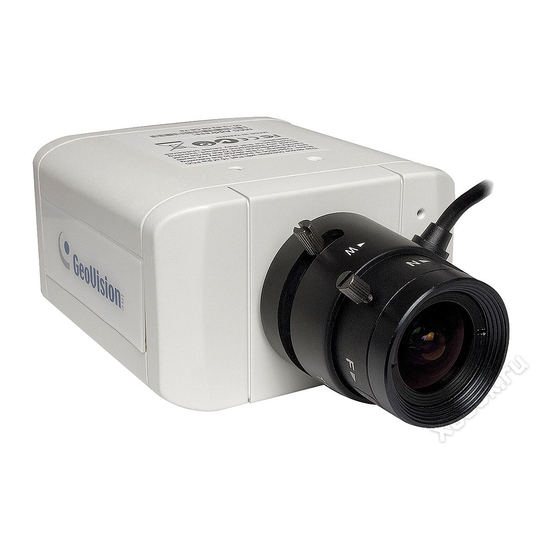

GeoVision 90-BX2700F-8010 Manual
  1. Manuals
  2. Brands
  3. GeoVision Manuals
  4. Security Camera
  5. 90-BX2700F-8010
  6. Manual

GeoVision 90-BX2700F-8010 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Quick Start Guide
GV-IP Camera
Before attempting to connect or operate this product,
IC-QG-AT-EN
please read these instructions carefully and save this manual for future use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 90-BX2700F-8010 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GeoVision 90-BX2700F-8010

Summary of Contents for GeoVision 90-BX2700F-8010

  • Page 1 Quick Start Guide GV-IP Camera Before attempting to connect or operate this product, IC-QG-AT-EN please read these instructions carefully and save this manual for future use.
  • Page 2 GeoVision. Every effort has been made to ensure that the information in this manual is accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein.

  • Page 3: Table Of Contents

    Contents   Contents ..................i   Introduction ................viii   Caution..................xxii   Options ..................xxiii   Note for Connecting to GV-System / GV-VMS .......   Note for Recording..............xxvi   Note for Adjusting Focus and Zoom ........xxvii   Note for Installing Camera Outdoor ........xxviii  ...
  • Page 4 2. Ultra Box Camera ..............9 2.1 Packing List................9 2.2 Overview .................10 2.3 Installation ................11 2.4 Connecting the Camera............13 3. Target Box Camera ..............14 3.1 Packing List................14 3.2 Overview .................15 3.3 Installation ................16 3.4 Connecting the Camera............18 4. IR Arctic Box Camera ............19 4.1 Packing List................19 4.2 Overview .................21 4.3 Installation ................23...
  • Page 5 6.3 Installation ................51 6.4 Connecting the Camera............54 7. Target Mini Fixed Dome............55 7.1 Packing List................55 7.2 Overview .................56 7.3 Installation ................57 7.4 Connecting the Camera............59 8. Target Mini Fixed Rugged Dome ..........60 8.1 Packing List................60 8.2 Overview .................62 8.3 Installation ................63 8.4 Connecting the Camera............69 9.
  • Page 6 11.4.1 Wire Definition .............105 11.4.2 Power Connection..........106 12. Ultra Bullet Camera............107 12.1 Packing List .................107 12.2 Overview ................108 12.3 Installation ................110 12.4 Connecting the Camera............114 12.4.1 Waterproofing the Cable ........114 12.4.2 Wire Definition............116 12.4.3 Power Connection..........117 13. Target Bullet Camera (Part I)..........118 13.1 Packing List .................118 13.2 Overview ................119 13.3 Installation ................121...
  • Page 7 16.2 Overview ................155 16.3 Installation ................157 16.4 Connecting the Camera............167 16.4.1 Connecting the Power Cable........167 16.4.2 Connecting the I/O Device........168 17. Vandal Proof IP Dome (Part III) .........169 17.1 Packing List .................169 17.2 Overview ................171 17.3 Installation ................173 17.4 Connecting the Camera............178 17.4.1 Definition ................178 17.4.2 Power Connection..........179 18.
  • Page 8 21.2 Overview ................230 21.3 Installation ................232 21.4 Connecting the Camera............234 22. Cube Camera..............235 22.1 Packing List .................235 22.2 Overview ................236 22.3 Installation ................237 22.4 Connecting the Camera............239 23. Advanced Cube Camera............240 23.1 Packing List .................240 23.2 Overview ................241 23.3 Installation ................243 23.4 Connecting the Camera............245 24.
  • Page 9 29. Restoring to Default Settings..........285 29.1 Using the Web Interface ............285 29.2 Directly on the Camera ............286 Box Camera..............286 Ultra Box Camera and Target Box Camera .......287 Mini Fixed Dome ...............288 Mini Fixed Rugged Dome..........289 IR Arctic Box Camera............289 Target Mini Fixed Target Mini Fixed Rugged Dome ..290 Bullet Camera ..............291 Ultra Bullet Camera............292 Target Bullet Camera ............292...

  • Page 10: Introduction

    Introduction Welcome to the GV-IPCam Quick Start Guide. In this quick guide, you will find information on the installation and basic configurations of the GV-IPCam H.264 / H.265 series. Camera Model No. Lens Description 1.3 MP Low Lux / 1.3 MP / GV-BX1500-1F 1.3 MP Super Low Lux / 2 MP WDR Pro / 2 MP Super...
  • Page 11 Camera Model No. Lens Description 1.3 MP Low Lux / 1.3 MP / GV-BX1500-3V 1.3 MP Super Low Lux / 2 GV-BX2500-3V MP Super Low Lux 2 MP, Super Low Lux, GV-BX2600 WDR Pro Varifocal 2 MP, H.265, Super Low GV-BX2700-3V Lux, WDR Pro, P-Iris GV-BX3400-5V...
  • Page 12 Camera Model No. Lens Description GV-EBX1100-0F 1.3 MP, Low Lux Target GV-EBX1100-2F 1.3 MP, Low Lux Fixed GV-EBX2100-0F 2 MP, Low Lux Camera GV-EBX2100-2F 2 MP, Low Lux GV-UBX1301-0F GV-UBX1301-1F 1.3 MP GV-UBX1301-2F GV-UBX2301-0F Ultra Box Fixed GV-UBX2301-1F 2 MP Camera GV-UBX2301-2F GV-UBX3301-0F...
  • Page 13 Camera Model No. Lens Description GV-BX1500-E 1.3 MP, Super Low Lux, GV-BX2400-E 2 MP / 3 MP, WDR Pro GV-BX3400-E 4 MP, H.265, Super Low GV-BX4700-E IR Arctic Lux, WDR Pro, P-Iris Varifocal Camera GV-BX5300-E 5 MP 2 MP Super Low Lux, GV-BX2510-E P-Iris GV-BX5310-E...
  • Page 14 Camera Model No. Lens Description GV-MDR220 GV-MDR320 Fixed 2 MP / 3 MP / 5 MP GV-MDR520 Mini GV-MDR1500-1F Fixed 1.3 MP Super Low Lux / 3 MP GV-MDR3400-1F Rugged WDR Pro GV-MDR5300-1F Dome Fixed GV-MDR1500-2F 1.3 MP Super Low Lux / 3 MP GV-MDR3400-2F WDR Pro / 5 MP GV-MDR5300-2F...
  • Page 15 Camera Model No. Lens Description GV-MFD1501-2F 1.3 MP Super Low Lux / 2 GV-MFD2401-2F MP WDR Pro / 2 MP Super GV-MFD2501-2F Low Lux / 3 MP WDR Pro / 5 GV-MFD3401-2F GV-MFD5301-2F GV-MFD1501-3F 1.3 MP Super Low Lux / 2 GV-MFD2401-3F MP WDR Pro / 2 MP Super GV-MFD2501-3F...
  • Page 16 Camera Model No. Lens Description 1.3 MP Low Lux / 2 MP GV-EDR1100-0F Low Lux GV-EDR2100-0F Target 4 MP, H.265, Super Low GV-EDR4700-0F Mini Lux, WDR Pro Fixed Fixed 1.3 MP Low Lux / 2 MP Rugged GV-EDR1100-2F Low Lux Dome GV-EDR2100-2F 4 MP, H.265, Super Low...
  • Page 17 2 MP Super Low Lux, 3X GV-BL2511-E IR Arctic Optical Zoom, P-Iris Varifocal Bullet Motorized 5 MP, 2X Optical Zoom, Camera GV-BL5311-E P-Iris...
  • Page 18 Camera Model No. Lens Description GV-EBL1100-1F 1.3 MP / 2 MP, Low Lux GV-EBL2100-1F Fixed GV-EBL1100-2F 1.3 MP Low Lux GV-EBL2100-2F Target 2 MP, Super Low Lux, Bullet GV-EBL2101 Varifocal P-Iris Camera Motorized 2 MP, Super Low Lux, GV-EBL2111 P-Iris Varifocal 3 MP WDR Pro, Super Low GV-EBL3101...
  • Page 19 Camera Model No. Lens Description GV-UBL3401-0F 3 MP, WDR Pro Ultra GV-UBL3401-1F Bullet Fixed 3 MP, WDR Pro GV-UBL3401-2F Camera GV-UBL3401-3F GV-FD1200 1.3 MP Low Lux / 2 MP GV-FD2400 WDR Pro / 5 MP GV-FD5300 Varifocal Fixed IP GV-FD1500 Dome 1.3 MP Super Low Lux / 2 GV-FD2500...
  • Page 20 Camera Model No. Lens Description 1.3 MP Super Low Lux / 2 GV-FD1510 Motorized MP Super Low Lux / 3 MP GV-FD2510 Varifocal WDR Pro, 3x Optical GV-FD3410 Zoom, P-Iris 2MP Super Low Lux, GV-EFD2101 WDR, P-iris Target 3MP Super Low Lux, Fixed IP Varifocal GV-EFD3101...
  • Page 21 Camera Model No. Lens Description GV-VD120D (IK10+, Transparent Cover) GV-VD121D (IK10+, Smoked Cover) 1.3 MP, Low Lux GV-VD122D (IK7, Transparent Cover) GV-VD123D (IK7, Smoked Cover) GV-VD220D (IK10+, Transparent Cover) GV-VD221D (IK10+, Smoked Cover) 2 MP GV-VD222D (IK7, Transparent Cover) GV-VD223D Vandal (IK7, Smoked Cover) Proof IP...
  • Page 22 Camera Model No. Lens Description Vandal 3 MP H.265, WDR Pro, GV-VD3700 Proof IP Super Low Lux Dome Varifocal 4 MP, H.265, WDR Pro, GV-VD4700 Super Low Lux, P-Iris 5 MP H.265, WDR, Low GV-VD5700 GV-VD1530 1.3 MP Super Low Lux / 2 High Power IR GV-VD2430 MP WDR Pro / 2 MP...
  • Page 23 Camera Model No. Lens Description Varifocal Lens, Extreme 5 MP, 3X Optical Zoom GV-VD5340-E Temperature Tolerance 2MP Super Low Lux, GV-EVD2100 WDR, P-Iris Target Vandal 3MP Super Low Lux, GV-EVD3100 Varifocal Proof IP WDR Pro, P-Iris Dome 5MP Low Lux, WDR, GV-EVD5100 P-Iris Pinhole...

  • Page 24: Caution

    Caution Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. Safety Notice The GV-IPCAM uses a Lithium battery as the power supply for its internal real-time clock (RTC). The battery should not be replaced unless required! If the battery does need replacing, please observe the following: •...

  • Page 25: Options

    Options Optional devices can expand your camera’s capabilities and versatility. Contact your dealer for more information. Accessory Description The power adapter is available for all GV-IP Camera (except for IR Arctic Cameras, Mini Fixed Rugged Power Adapter Dome and GV-BL2510-E / 5310-E). Contact your sales representative for the countries and areas supported.
  • Page 26 Accessory Description The GV-WiFi Adapter is a plug-and-play device designed to connect GV-BX1200 Series / 1500 series / 2400 series / 2500 series / 3400 series / 4700 series / 5300 series / 5700 series and GV-WiFi Adapter GV-MFD1501 series / 2401 series / 2501 series / 3401 series / 5301 series to wireless network.

  • Page 27: Note For Connecting To Gv-System / Gv-Vms

    Note for Connecting to GV-System / GV-VMS The GV-IPCAM H.264 is designed to work with GV-System / GV-VMS, a hybrid or digital video management system. Note the following when GV-IPCAM H.264 is connected to GV-System / GV-VMS: By default, the images are recorded to the memory card inserted to the GV-IP Camera H.264 (except GV-IR Arctic Camera and Target Series, which are not equipped with a memory card slot).

  • Page 28: Note For Recording

    Note for Recording By default, the images are recorded to the memory card inserted to the GV-IP Camera (except GV-IR Arctic Camera and Target Series, which are not equipped with a memory card slot). Make sure the Write recording data into local storage option is enabled. If this option is disabled, the camera will stop recording to the memory card while the live view is accessed through Web browsers or other applications.

  • Page 29: Note For Adjusting Focus And Zoom

    Note for Adjusting Focus and Zoom When adjusting the Focus and Zoom Screws (on Box Camera, IR Arctic Box Camera, Mini Fixed Dome, Bullet Camera, Vandal Proof IP Dome and Fixed IP Camera), please do not over tighten the Focus and Zoom screws. The screws only need to be as tight as your finger can do it;...

  • Page 30: Note For Installing Camera Outdoor

    Note for Installing Camera Outdoor When installing the IR Arctic Box Camera, Bullet Camera, Ultra Bullet Camera, Target Bullet Camera, Vandal Proof IP Dome, Mini Fixed Rugged Dome or Target Mini Fixed Rugged Dome outdoor, be sure that: The camera is set up above the junction box to prevent water from entering the camera along the cables.
  • Page 31 After opening the camera cover, ensure the screws are tightened and the cover is in place. Make sure the housing cover is properly secured to prevent water from entering and damaging the inner housing. xxix...

  • Page 32: Note For Closing The Bullet Camera Cover

    Note for Closing the Bullet Camera Cover To ensure that the camera performs its full capacity against water and dust, tightly close and lock the camera cover as indicated below.

  • Page 33: Note For Bullet Waterproof Failures

    Note for Bullet Waterproof Failures To avoid waterproofing failures, do not open the screw on the camera body. The screw on Ultra Bullet The screw on Target Bullet Camera Camera The screw on GV-EBL2101, The screw on GV-BL3700 / GV-EBL2111, GV-EBL3111 5700 xxxi...

  • Page 34: Note For Usb Storage And Wifi Adapter

    Note for USB Storage and WiFi Adapter Mind the following limitations and requirements for using USB storage and GV-WiFi Adapter: The USB hard drive must be of 2.5’’ or 3.5’’, version 2.0 or above. The USB hard drive’s storage capacity must not exceed 2TB. USB flash drives and USB hubs are not supported.

  • Page 35: Box Camera

    Box Camera 1. Box Camera 1.1 Packing List 1.1.1 For H.265 Cameras • Box Camera • Terminal Block (2-Pin and 3-Pin) • Fixed Focal or Varifocal Megapixel Lens • Six Lens Rings (only for Varifocal Lens) • Video Out Wire •...

  • Page 36: Overview

    1.2 Overview GV-BX1200 Series / 1500 Series / 2400 Series / 2500 Series / 2600 / 3400 Series / 2700 Series / 4700 Series / 5300 Series / 5700 Series / 12201 GV-BX1200 Series / 1500 Series / GV-BX12201 2400 Series / 2500 Series / 2600 / 3400 Series / 2700 Series / 4700 Series / 5300 Series / 5700 Series...
  • Page 37 Box Camera Note: The Auto Iris Connector (No. 8) is only functional for varifocal models of GV-BX1200 / 1500 / 2400 / 2500 / 2600 / 3400 / 2700/ 4700 / 5700. The Iris Screw (No. 12) is only available for GV-BX5300-6V. The Zoom Screw (No.
  • Page 38 Name Description Indicates the power is supplied. For detail, see Power LED the table below. Auto Iris Plug the iris control cable to the connector. Connector DC 12V Port Connects to power. LAN / PoE Connects to a 10/100 Ethernet or PoE. Resets the camera to default settings.

  • Page 39: Accessory Installation

    Box Camera 1.3 Accessory Installation 1.3.1 C-Mount Lenses When you use a C-mount lens, it requires a certain distance from the camera’s imaging chip to focus the lens. Mount the supplied C-mount lens adapter / lens ring to the camera, and then attach the lens onto the camera body.

  • Page 40: Infrared Illuminators (Optional)

    1.3.2 Infrared Illuminators (Optional) Connect the infrared illuminator to the terminal block on the camera. See I/O Terminal Block, Box Camera Chapter, GV-IPCAM Hardware Manual on the Software DVD. Access the Web interface of the camera. Select Video and Motion, select Video Settings, select Streaming 1 and set the IR Check Function setting to Trigger by Input.

  • Page 41: Connecting The Camera

    Box Camera 1.4 Connecting the Camera The Box Camera is designed for indoor use. Please make sure the installing site is shielded from rain and moisture. GV-BX1200 Series / 1300 Series/ 1500 Series / 2400 Series / 2500 Series / 2600 / 3400 Series / 2700 Series / 4700 Series / 5300 Series/ 5700 Series / 12201 If you are using an auto iris model, plug the iris control cable to the Auto Iris Connector on the camera.
  • Page 42 • Wireless Connection: Optionally purchase and connect the GV-WiFi Adapter. Optionally connect a speaker and an external microphone. Optionally connect a monitor using a Video Out wire. Enable this function by selecting your signal format at the TV Out field on the Web interface.

  • Page 43: Ultra Box Camera

    Ultra Box Camera 2. Ultra Box Camera 2.1 Packing List • Ultra Box Camera • Supporting rack • Screw x 3 • Screw anchor x 3 • Power Adapter • GV-IPCAM Software DVD • GV-Software DVD • Warranty Card Note: The power adapter can be excluded upon request.

  • Page 44: Overview

    2.2 Overview Name Description Audio Out Connects a speaker for audio output. Resets the camera to default settings. See 28. Default Restoring to Default Settings in the Quick Start Guide. LAN / PoE Connects to a 10/100 Ethernet or PoE. Microphone Records sounds.

  • Page 45: Installation

    Ultra Box Camera 2.3 Installation You can stand the Ultra Box Camera on a plain surface or install it to wall and ceiling. Follow the steps below to install, connect and adjust your Ultra Box Camera. To install the device on the wall/ceiling, put the supporting rack on the desired location and make marks for screw anchors.
  • Page 46 Connect the network and power cables to the camera. See 2.4 Connecting the Camera in the Quick Start Guide. Access the live view. See 25.2 Accessing the Live View in the Quick Start Guide. Adjust the angle of the camera based on live view and fasten the indicated screw.

  • Page 47: Connecting The Camera

    Ultra Box Camera 2.4 Connecting the Camera Connect power using one of the following methods: • Plug the power adapter to the 5V terminal block. • Use the Power over Ethernet (PoE) function and the power will be provided over the network cable. The power and status LEDs shall turn on (green).

  • Page 48: Target Box Camera

    3. Target Box Camera 3.1 Packing List • Target Box Camera • Supporting Rack • Screw x 3 • Screw Anchor x 3 • GV-IPCAM Software DVD • GV-Software DVD • Warranty Card Note: Power adapter can be purchased upon request.

  • Page 49: Overview

    Target Box Camera 3.2 Overview Name Description Resets the camera to default settings. See 28. Default Restoring to Default Settings in the Quick Start Guide. LAN / PoE Connects to a 10/100 Ethernet or PoE. Microphone Records sounds. DC 12V Connects to power.

  • Page 50: Installation

    3.3 Installation You can stand the Target Box Camera on a plain surface or install it to wall and ceiling. Follow the steps below to install, connect and adjust your Target Box Camera. To install the device on the wall/ceiling, put the supporting rack on the desired location and make marks for screw anchors.
  • Page 51 Target Box Camera Connect the network and power cables to the camera. See 3.4 Connecting the Camera in the Quick Start Guide. Access the live view. See 25.2 Accessing the Live View in the Quick Start Guide. Adjust the angle of the camera based on live view and fasten the indicated screw.

  • Page 52: Connecting The Camera

    3.4 Connecting the Camera Connect power using one of the following methods: • Plug the power adapter to the 12V terminal block. The power adapter is an optional device. For detail, see Options in the GV-IPCAM Hardware Manual for Target Box Camera on the Software DVD.

  • Page 53: Ir Arctic Box Camera

    IR Arctic Box Camera 4. IR Arctic Box Camera 4.1 Packing List For GV-BX120D-E / 220D-E / 320D-E / 520D-E / 1500-E / 2400-E / 3400-E / 4700-E / 5300-E • IR Arctic Box Camera • Screw Anchor x 4 •...
  • Page 54 For GV-BX2510-E / 5310-E • IR Arctic Box Camera • Screw Anchor x 4 • Screw x 4 • Washer x 4 • 5 mm Torx Wrench • Silica Gel Bag • Adhesive Tape • Power Adapter (DC 48V, 2.5A, 120 W max.) •...

  • Page 55: Overview

    IR Arctic Box Camera 4.2 Overview For GV-BX120D-E / 220D-E / 320D-E / 520D-E / 1500-E / 2400-E / 3400-E / 4700-E / 5300-E Note: The Iris Screw (no. 7) is only available in GV-BX5300-E. Name Description Silica gel bag Desiccant that keeps the camera housing dry.
  • Page 56 For GV-BX2510-E / 5310-E Name Description Silica gel bag Desiccant that keeps the camera housing dry. Memory Card Inserts a micro SD card (SD/SDHC, version Slot 2.0, Class 10) to store recording data. Turns on when the camera is supplied with Power LED power.

  • Page 57: Installation

    IR Arctic Box Camera 4.3 Installation The IR Arctic Box Camera is designed for outdoor use. Follow the steps below to install your camera. Mark the installation site and drill four holes for screw anchors. Insert the supplied screw anchors. Secure the camera to the wall using the supplied washers and screws.
  • Page 58 Based on the live view, adjust the angle of the camera. Loosen the indicated screw with the supplied big torx wrench and adjust the joint. Tilt Adjustment Pan Adjustment...
  • Page 59 IR Arctic Box Camera For GV-BX1500-E / 2400-E / 3400-E / 5300-E, adjust for image clarity based on the live view. A. Unscrew the cover with the supplied 4 mm torx wrench. B. Hold and unplug the connector. IMPORTANT: Unscrew and remove the cover carefully. Pulling the cover off may cause damages to the inner wiring of the camera.
  • Page 60 C. Adjust the focus, zoom and iris screws. For a more precise focus, use GV-IP Device Utility. For details, see 25.3 Adjusting Image Clarity in the Quick Start Guide. Note: Only GV-BX5300-E contains an iris screw. D. Replace the silica gel bag. Paste the sticker to the front side of the silica gel bag.
  • Page 61 IR Arctic Box Camera For GV-BX2510-E / 5310-E, optionally insert a memory card. A. Open the camera cover using the supplied torx wrench. B. Insert a memory card to the card slot. Memory card slot C. Replace the silica gel bag. Paste the sticker to the silica gel bag. Press the silica gel bag several times onto the camera cover to make sure it adheres properly.

  • Page 62: Connecting The Camera

    4.4 Connecting the Camera For GV-BX120D-E / 220D-E / 320D-E / 520D-E / 1500-E / 2400-E / 3400-E / 4700-E / 5300-E Wire Definition RJ-45 Black BNC TV ou Green RCA Audio Out Pink RCA Audio In Foll ow t he steps bel ow to connect t he camera:...
  • Page 63 IR Arctic Box Camera Connect the camera to a GV-PA482 PoE adapter to supply power an network access. For detailed instruction, see step 3 o f For GV-BX25010-E / 5310-E in the next section of Chapter 4. . The status LED of the camera will be on. You are ready to access the live view.
  • Page 64 For GV-BX2510-E / 5310-E Wire Definition Green RCA Audio Out Pink RCA Audio In Brown wire Digital Output Yellow wire Digital Input White wire Terminal Block DC 48V TV Out RJ-45 Ethernet/PoE++ 1. Optionally connect the audio out (green), audio in (pink), digital output (brown), digital input (yellow), and GND.
  • Page 65 IR Arctic Box Camera Supply the camera with pow er and network access using one of the following methods: • Use a GV-PA482 Power over Ethernet adapter to connect the camera to power and network as illustrated below. GV-PA482 PoE adapter is an optional accessory.

  • Page 66: Mini Fixed Dome (Part I) & Mini Fixed Rugged Dome

    5. Mini Fixed Dome (Part I) & Mini Fixed Rugged Dome 5.1 Packing List GV-MFD • Mini Fixed Dome • Torx Wrench • Self Tapping Screw x 2 • Screw Anchor x 2 • Cable stopper • 2-pin terminal block (for GV-MFD120 / 130 / 320) •...
  • Page 67 Mini Fixed & Rugged Dome GV-MDR • Mini Fixed Rugged Dome • Torx Wrench • Self Tapping Screw x 2 • Screw Anchor x 2 • Cable stopper • Cable Connector • Installation sticker • Silica gel bag x 2 •...

  • Page 68: Overview

    5.2 Overview GV-MFD120 / 130 / 320 Name Description Resets the camera to factory default. For Default Button details, see 29. Restoring to Default Settings. Lens Receives image inputs. Tilt Screw Loosens the screw to adjust tilt angle. Microphone Provides one-way audio. Pan Screw Loosens the screw to pan.
  • Page 69 Mini Fixed & Rugged Dome Name Description LED Indicators See LED Indicators below. Memory Card Slot Inserts a micro SD card (SD/SDHC, version 2.0 only, Class 10) to store recording data. LED Name Description 1. Link Turns on when the network is connected. 2.

  • Page 70: Gv-Mfd1501 Series / 2401 Series / 2501 Series / 3401 Series / 5301 Series

    GV-MFD1501 Series / 2401 Series / 2501 Series / 3401 Series / 5301 Series Name Description Microphone Receives sound. Pan Screw Loosens the screw to pan. Lens Receives image inputs. Tilt Screw Loosens the screw to adjust tilt angle. Resets the camera to default settings. See Default Button 29.
  • Page 71 Mini Fixed & Rugged Dome LED Name Description 1. Link Turns on (green) when the network is connected. 2. ACT Turns on (orange) when data are being transmitted. 3. Status Turns on (red) when the system is ready. 4. Power Turns on (green) when power is on.

  • Page 72: Gv-Mdr

    GV-MDR Name Description Silica gel bag Absorbs the moisture inside the camera. Prevents water or moisture from entering Conceal paper the camera. Lens Receives image inputs. Rotation Disc Rotates the camera lens. Pan Disc Pans the camera lens. Tilt Screw Loosens to tilt the camera.
  • Page 73 Mini Fixed & Rugged Dome Name Description Turns red when the power is on. Flashes Power and status orange light twice when the system is ready. LAN LED Turns on when the network is connected. Receives a micro SD card (SD/SDHC, Memory Card Slot version 2.0 only, Class 10) to store recording data.
  • Page 74 LAN Connector Two types of LAN connector are available for GV-MDR1500 series / 3400 series / 5300 series. Select an option based on your installation environment. Waterproof M12 4-Pin Female Connector The M12 connector is used for motor vehicles. Ø14.7 mm (0.58'') Small Waterproof Connector For this connector type, see GV-MDR, 5.3 Installation to install the supplied cable connector.

  • Page 75: Installation

    Mini Fixed & Rugged Dome 5.3 Installation To install a Mini Fixed Dome, make sure the installing site is shielded from rain and moisture. GV-MFD Series Unscrew the housing cover using the supplied torx wrench. Put the camera on the desired location and make 2 marks on the ceiling for screw anchors.
  • Page 76 Tilt Adjustment Insert a memory card (SD/SDHC, version 2.0 only, Class 10) into the memory card slot. Memory Card Slot Adjust image clarity using the GV-IP Device Utility program. For details, see 25.3 Adjusting Image Clarity in the Quick Start Guide. 10.

  • Page 77: Gv-Mdr Series

    Mini Fixed & Rugged Dome GV-MDR Series Paste the installation sticker on the desired location. The arrow should point toward the direction that the camera faces. Drill one hole on each of the two curves for screw anchors. Drill the circle (30 mm in diameter) if you want to run the cable into the ceiling.
  • Page 78 Install the cable connector to waterproof the cable. You should have 5 parts: Prepare an Ethernet cable with the RJ-45 connector on one end only. Connect the Ethernet cable to the camera cable. Paste the sticker to the camera cable and slide in all the components as shown below.
  • Page 79 Mini Fixed & Rugged Dome IMPORTANT: Item 5 must be secured tightly to waterproof the cable. Access the live view. See 26.2 Accessing the Live View in the Quick Start Guide. Adjust the angles based on the live view. Pan Adjustment Tilt Adjustment Rotational Adjustment...
  • Page 80 Adjust image clarity using the GV-IP Device Utility program. For details, see 25.3 Adjusting Image Clarity in the Quick Start Guide. 10. Insert a memory card (SD/SDHC, version 2.0 only, Class 10) into the memory card slot. 11. Replace the silica gel bag. 12.

  • Page 81: Connecting The Camera

    Mini Fixed & Rugged Dome 5.4 Connecting the Camera Refer to the wire definition and illustrations below to connect the power and network. 5.4.1 Wire Definition GV-MDR Series Power and network connectivity is provided through a PoE cable. Wire Color Definition Gray PoE, Ethernet...

  • Page 82: Vehicle Installation

    5.4.3 Vehicle Installation To install the Mini Fixed Rugged Dome on a vehicle, clip the ferrite core to the camera cable. The ferrite core must be attached as close as possible to the camera with the maximum distance of 15 cm. Max.

  • Page 83: Mini Fixed Dome (Part Ii)

    Mini Fixed Dome (Part II) 6. Mini Fixed Dome (Part II) 6.1 Packing List H.265 Mini Fixed IP Dome Screw x 2 Screw Anchor x 2 Focus Adjustment Ring Installation Sticker Audio and I/O extended cable Torx Wrench GV-IPCAM Software DVD GV-NVR Software DVD Warranty Card Note: The power adapter can be purchased upon request.

  • Page 84: Overview

    6.2 Overview Name Description Lens Receives image inputs. Pan Screw Loosens the screw to adjust pan angle. Tilt Screw Loosens the screw to adjust tilt angle. Resets the camera to factory default. See 29. Default Button Restoring to Default Settings in the Quick Start Guide.

  • Page 85: Installation

    Mini Fixed Dome (Part II) 6.3 Installation The Mini Fixed Dome can be installed on the wall or the ceiling. Before installing the camera, make sure the installing site is shielded from rain and moisture. Open the housing cover by unscrewing the three screws. Place the camera where you want to install it, and make 2 marks on the ceiling or the wall for screw anchors.
  • Page 86 Thread the power and / or network cable(s) through the oval-shaped hole or the cable opening on the side. Connect the camera to network, power, a microphone or a speaker, and one input and one output devices. For details, see 6.4 Connecting the Camera.
  • Page 87 Mini Fixed Dome (Part II) 10. Loosen the tile screw, pan screw or rotational screw. Adjust the angles based on the live view as needed, and tighten the screws again. 11. Place the housing cover back and turn to secure it.

  • Page 88: Connecting The Camera

    6.4 Connecting the Camera The supplied audio and I/O extended cable allows you to connect one sensor input and alarm output, and one microphone and speaker. Wire Color Definition Digital In Yellow Digital Out Black Ground Red RCA Audio in Green RCA Audio out Figure 2-6...

  • Page 89: Target Mini Fixed Dome

    Target Mini Fixed Dome 7. Target Mini Fixed Dome 7.1 Packing List • Target Mini Fixed Dome • H.265 Mini Fixed Dome (for GV-EFD4700 Series) • Screw x 2 • Screw Anchor x 2 • Focus Adjustment Clip or Ring •...

  • Page 90: Overview

    7.2 Overview Name Description Lens Receives image inputs. Pan Screw Loosens the screw to adjust pan angle. Tilt Screw Loosens the screw to adjust tilt angle. Microphone Receives sound. Default Button Resets the camera to default settings. See 29. Restoring to Default Settings. DC 12V Port Connects to power.

  • Page 91: Installation

    Target Mini Fixed Dome 7.3 Installation The Target Mini Fixed Dome can be installed on the wall or the ceiling. Before installing the camera, make sure the installing site is shielded from rain and moisture. Open the housing cover by turning. Place the camera where you want to install it and make 2 marks on the ceiling or the wall for screw anchors.
  • Page 92 Thread the power and / or network cable(s) through the oval-shaped hole or the cable opening on the side, and connect the camera to network and power. For details, see 6.4 Connecting the Camera. Secure the Target Mini Fixed Dome to the ceiling or the wall with the self-tapping screws.

  • Page 93: Connecting The Camera

    Target Mini Fixed Dome 7.4 Connecting the Camera Connect power using one of the following methods: • Plug the power adapter to the 12V terminal block. The power adapter is an optional device. For detail, see Options in the GV-IPCAM Hardware Manual for Target Mini Fixed Dome on the Software DVD.

  • Page 94: Target Mini Fixed Rugged Dome

    8. Target Mini Fixed Rugged Dome 8.1 Packing List • Target Mini Fixed Rugged Dome • Screw x 2 • Screw Anchor x 2 • Focus Adjustment Ring • Installation Sticker • Conduit Converter • RJ-45 Connector • Waterproof Rubber Sets (for RJ-45 Cat.5 and 12V DC / for RJ-45 Cat.6) Cat.6 Cat.5...
  • Page 95 Target Mini Fixed Rugged Dome Note: You can choose to run the wires through a conduit pipe. After you have threaded all the wires, install the supplied conduit converter with a PG21 conduit connector and a self-prepared conduit pipe (of 1/2’’, 3/4’’ or 1’’) to the camera.

  • Page 96: Overview

    8.2 Overview Name Description Lens Receives image inputs. Tilt Screw Loosens the screw to adjust tilt angle. Pan Screw Loosens the screw to adjust pan angle. Resets the camera to default settings. See 29. Default Button Restoring to Default Settings. DC 12V Port Connects to power.

  • Page 97: Installation

    Target Mini Fixed Rugged Dome 8.3 Installation The Target Mini Fixed Rugged Dome can be installed on the wall or ceiling. You must use the supplied waterproof rubber set to waterproof the cable. Paste the installation sticker where you want to install, and drill two holes that are at a diagonal.
  • Page 98 Unscrew the three screws as indicated below. A back plate can be separated from the bottom. Use the 2 supplied screws to secure the back plate onto the ceiling or the wall where the screw anchors were inserted. Prepare an Ethernet cable with the RJ-45 connector on one end only. Remove the waterproof cap from the cable opening and thread the power and / or network cable(s) through the opening.
  • Page 99 Target Mini Fixed Rugged Dome Install the supplied waterproof rubber set onto the cable(s). The rubber set has two parts. According to the below situation, replace Part 1 if necessary. For users of PoE with a Cat.5 Ethernet cable, stay with Part 1a on the camera body.
  • Page 100 Fit item 1 to item 2, and insert them in the cable opening. Use the supplied ruler to make sure the length of the cable(s) from the bottom of the opening to the end of the cable is under 10 cm. Cap the cable opening with the waterproof cap.
  • Page 101 Target Mini Fixed Rugged Dome Thread the cable(s) under the black cable holder. You can loosen the screw on the cable holder if needed. 10. Connect the camera to network and power. For details, see 7.4 Connecting the Camera. 11. Secure the camera to the back plate by tightening the three screws as shown in Step 4.
  • Page 102 15. Attach the silica gel bag to the place indicated below, and secure the housing cover using the torx wrench. IMPORTANT: The gel bag loses its effectiveness when the dry camera is opened. To prevent the lens from fogging up, replace the silica gel bag every time you open the camera and conceal the silica gel bag within 2 minutes of exposing to open air.

  • Page 103: Connecting The Camera

    Target Mini Fixed Rugged Dome 8.4 Connecting the Camera Connect power using one of the following methods: • Plug the power adapter to the 12V terminal block. The power adapter is an optional device. For detail, see Options, GV-IPCAM Hardware Manual for Target Mini Fixed Rugged Dome on the Software DVD.

  • Page 104: Bullet Camera (Part I)

    9. Bullet Camera (Part I) 9.1 Packing List • Bullet Camera • Self Tapping Screw x 3 • Plastic Screw Anchor x 3 • Torx Wrench x 2 • Sun-Shield Cover Kit (Sun-Shield Cover, Philips Head Screws x 2, Plastic Screw Spacer x 2 and Hexagon Screw x 2) •...

  • Page 105: Overview

    Bullet Camera (Part I) 9.2 Overview Name Description Receives a micro SD card (SD/SDHC, Memory Card Slot version 2.0 only, Class 10). Zoom Screw Holds the zoom lens in place. Focus Screw Holds the focus lens in place Resets the camera to default settings. See Default Button 29.

  • Page 106: Installation

    9.3 Installation The Bullet Camera is designed for outdoor use and can be mounted on ceiling and wall. Slide the cable clamp to the camera base. Cable Clamp Install the Bullet Camera to the wall / ceiling. Remove the protection sticker from the camera’s cover. Connect the power, network and other cables to the camera.
  • Page 107 Bullet Camera (Part I) Loosen the camera’s cover, adjust the lens and focus, and insert a micro SD card (SD/SDHC, version 2.0 only, Class 10) into the memory card slot. See 9.3.2 Adjusting Lens and Inserting a Memory Card in the Quick Start Guide.

  • Page 108: Adjusting The Angles

    9.3.1 Adjusting the Angles The Bullet Camera is designed to be adjustable in three shafts. Tip: The three shafts are designed to offer easy and flexible ceiling / wall mount installation. First Shaft You can adjust the camera body by 360 degrees to the right or the left. Unscrew the panning lock screw with the torx wrench.
  • Page 109 Bullet Camera (Part I) Second Shaft You can adjust the camera body up and down by 90, 112.5, 135, 157.5 or 180 degrees by using the gears inside the camera body and the camera base. Unscrew the tilting lock screw with the torx wrench. Tilting Lock Screw Torx Wrench Hold the camera body, and move the camera base to the right to...
  • Page 110 Third Shaft You can adjust the camera base by 360 degrees. Unscrew the base fixing screw with the torx wrench. Torx Wrench Base Fixing Screw Adjust the angle of camera base, and fasten the base fixing screw. 0~360°...

  • Page 111: Adjusting Lens And Inserting A Memory Card

    Bullet Camera (Part I) 9.3.2 Adjusting Lens and Inserting a Memory Card To adjust the camera’s lens to produce a clear image and insert a micro SD card (SD/SDHC, version 2.0 only, Class 10) into the memory card slot, follow the steps below. Loosen the camera’s cover.
  • Page 112 To insert a memory card, follow the steps below. Loosen the fixing screw. Fixing Screw Slightly pull out the camera module. Insert a micro SD card (SD/SDHC, version 2.0 only, Class 10) into the memory card slot. Memory Card Slot Push the camera module back and fasten the fixing screw.
  • Page 113 Bullet Camera (Part I) Insert a new silica gel bag to the camera module. Silica Gel Bag All Bullet Camera except GV-BL2510-E/5310-E GV-BL2510-E/5310-E...

  • Page 114: Inserting The Sun-Shield Cover

    9.3.3 Inserting the Sun-Shield Cover After setting up the Bullet Camera, now you can install the sun-shield cover to the camera. Fasten the hexagon screws either on top or below the camera. Hexagon Screws Put the sun-shield cover on top of hexagon screws. Make sure to aim the rear hexagon screw at the edge of the sun-shield cover’s aperture for optimal sun-shield performance.

  • Page 115: Connecting The Camera

    Bullet Camera (Part I) 9.4 Connecting the Camera Connect your Bullet Camera to power, network and the cables needed. 9.4.1 Wire Definition The cable of the Bullet Camera is illustrated and defined below: Digital In (Red) DC 12V+ / AC 24V + (Brown) Digital Out (Orange) DC 12V- / AC 24V - (Black) GND (Yellow)
  • Page 116 Note that the Audio In and Out connectors may also come as terminal blocks: Digital In (Red) DC 12V+ / AC 24V + (Brown) Digital Out (Orange) DC 12V- / AC 24V - (Black) GND (Yellow) Audio In (Brown) Audio Out (Green) Ethernet (PoE) Wire Color Definition...

  • Page 117: Connecting The Power Cable

    Bullet Camera (Part I) 9.4.2 Connecting the Power Cable Use one of the following methods to supply power to the camera. Note that GV-BL2510-E / 5310-E do not support PoE. • Use a Power over Ethernet (PoE) adapter to connect the camera to the network, and the power will be provided at the same time.

  • Page 118: Bullet Camera (Part Ii)

    10. Bullet Camera (Part II) 10.1 Packing List • Bullet Camera • Self Tapping Screw x 3 • Plastic Screw Anchor x 3 • Torx Wrench x 3 • Sun-Shield Cover Kit (Sun-Shield Cover, Philips Head Screw x 2, Plastic Screw Spacer x 2, and Hexagon Screw x 2) •...

  • Page 119: Overview

    Bullet Camera (Part II) 10.2 Overview Twist off the camera cover to access the following: Name Description Receives a micro SD card (SD/SDHC, Memory Card Slot version 2.0 only, Class 10). Zoom Screw Holds the zoom lens in place. Focus Screw Holds the focus lens in place Resets the camera to default settings.
  • Page 120 To access the following interface, remove the camera base using the supplied torx wrench. Name Description LAN / PoE Connects to a 10/100 Ethernet or PoE. Audio In Connects a microphone for audio input. Audio Out Connects a speaker for audio output. Connects to I/O devices.

  • Page 121: Installation

    Bullet Camera (Part II) 10.3 Installation Follow the steps below to install the Bullet Camera. Paste the supplied sticker to the ceiling/wall. For wall installations, make sure the arrow on the sticker points toward the ceiling. Drill the shaded area, and insert the screw anchor into the three holes. Loosen the indicated screws with the supplied torx wrench to remove the base.
  • Page 122 Loosen the indicated screws and remove the back plate. Back Plate Align and secure the black plate to the wall/ceiling with the supplied self-tapping screws.
  • Page 123 Bullet Camera (Part II) To use a pipe (optional), install the conduit converter using the supplied M3 screws. IMPORTANT: For GV-BL2511-E / 5311-E connected with a power adapter, only install the conduit converter to the indicated exit. Install the Ethernet cable. 1.
  • Page 124 2. Thread an Ethernet cable (with no RJ-45 connector on one end) from the back panel through the conduit converter (optionally installed at step 6) and then through the cable seal. IMPORTANT: Use the supplied ruler and leave about 10 cm of the Ethernet cable between the connector and the cable seal.
  • Page 125 Bullet Camera (Part II) C. Optionally thread audio wires, adapter wires, and I/O wires through the conduit converter and then through part 1, 2, 3, and 4 of the conduit connector. Tip: To make the threading easier, it is advised to thread the wires in the order described here.
  • Page 126 IMPORTANT: 1. Use the supplied ruler and leave about 10 cm of audio, power, and I/O wires between their connectors and the cable seal. 2. The plugs are used to prevent water from entering the camera housing. Keep the unused holes plugged and save the removed plugs for future use.
  • Page 127 Bullet Camera (Part II) 12. Access the live view. For details, see 26.2 Accessing the Live View in the Quick Start Guide. 13. Adjust the angles of the camera based on the live view. Three shafts can be adjusted. See 10.3.1 Adjusting the Angles. 14.

  • Page 128: Connecting The Camera

    10.4 Connecting the Camera Power Connection Use one of the following methods to supply power to the camera. Note that GV-BL2511-E / 5311-E do not support PoE. • Use a Power over Ethernet (PoE) adapter to connect the camera to the network, and the power will be provided at the same time.
  • Page 129 Bullet Camera (Part II) I/O Device Connection The camera supports one digital input and one digital output of dry contact. Function Digital Output Digital Input For details on how to enable an installed I/O device, see I/O Settings, Administrator Mode Chapter, GV-IPCAM Firmware Manual on the Software DVD.

  • Page 130: Bullet Camera (Part Iii)

    11. Bullet Camera (Part III) The information in this chapter applies to GV-BL3700 / GV-BL5700. 11.1 Packing List • H.265 Bullet Camera • Sun-shield Cover • Screw for Sun shield Cover x 2 ­ • Washer x 2 • Screw for Supporting Rack x 3 •...

  • Page 131: Overview

    Bullet Camera (Part III) 11.2 Overview Twist off the camera cover to access the following: Name Description Receives a micro SD card Memory Card (SD/SDHC/SDXC/UHS-I, Class 10). Slot * UHS-II card type is not supported. Resets the camera to default settings. For details, see 29.

  • Page 132: Installation

    11.3 Installation You can install the camera to the ceiling or wall. Follow the steps below. Unscrew the camera body, remove the sun-shield mount, and loosen the camera cover from the camera. Sun-Shield Mount Screws Camera Cover Insert a micro SD card (SD/SDHC/SDXC, Class 10) into the card slot. Tape two silica gel bags to the camera module.
  • Page 133 Bullet Camera (Part III) Secure the camera cover, fasten the sun-shield mount, and screw the camera body. Sun-Shield Mount Slide the sun-shield cover onto the top of the camera. Adjust the position of the cover before fully securing the cover with the washer and the screw.
  • Page 134 Thread the Ethernet cable into the conduit connector. Remove the plug from the conduit connector. Disintegrate the removed conduit connector. Thread the Ethernet cable through the 3 parts. Assemble the conduit connector. Note: If you can’t plug the self-prepared RJ-45 connector into the jack of the conduit, it is suggested to use the supplied RJ-45 connector.
  • Page 135 Bullet Camera (Part III) Install the camera to the wall or ceiling using the screw anchors and screws for supporting rack. IMPORTANT: To avoid waterproofing failures, the top of the camera must be facing upward for wall mount. Connect the wires and cable connector to the camera. See 11.4 Connecting the Camera.

  • Page 136: Adjusting The Angles

    11.3.1 Adjusting the Angles The GV-BL3700 / 5700 is designed to be adjustable in two shafts for easy and flexible installation. First Shaft You can adjust the camera base by 360°. Unscrew the base fixing screw with the hex wrench. Adjust the angle of camera base, and fasten the base fixing screw with the hex wrench.
  • Page 137 Bullet Camera (Part III) Second Shaft You can adjust the camera body to the desired angle by tilting the camera module. Unscrew the tilting lock screw with the hex wrench. Adjust the angle of camera body to the desired angle. Fasten the tilting lock screw.

  • Page 138: Adjusting Lens

    11.3.2 Adjusting Lens To adjust the camera’s zoom and focus, follow the steps below. Loosen the camera’s cover. To adjust for image clarity by adjusting the focus and zoom screws. For details, see 25.3 Adjusting Image Clarity. Focus Screw Zoom Screw...

  • Page 139: Connecting The Camera

    Bullet Camera (Part III) 1 1 1 11.4 Connecting the Camera 11.4.1 Wire Definition The 4-Pin terminal block provides connections for 1 sensor input and 1 sensor output. The 5-Pin terminal block provides power input, 1 audio input and 1 audio output. The wires are illustrated and defined below: Ethernet (PoE) 4-Pin terminal block 5-Pin terminal block...

  • Page 140: Power Connection

    11.4.2 Power Connection Use one of the following methods to supply power to the camera. Use a Power over Ethernet (PoE) adapter to connect the camera to the network, and the power will be provided at the same time. Connect the wires of your power adapter to the DC 12V+ and DC 12V- pins of the 5-pin terminal block.

  • Page 141: Ultra Bullet Camera

    Ultra Bullet Camera 12. Ultra Bullet Camera 12.1 Packing List • Ultra Bullet Camera (with Waterproof or Non-Waterproof LAN connector) • Camera Stand • Black Rubber • Self Tapping Screw x 3 • Plastic Screw Anchor x 3 • Torx Wrench •...

  • Page 142: Overview

    12.2 Overview Name Description Connects to the data cable. For details, see Power & I/O 12.4 Connecting the Camera in the Quick Start Connector Guide. Resets the camera to default settings. See 29. Default Button Restoring to Default Settings in the Quick Start Guide.
  • Page 143 Ultra Bullet Camera LAN Connector The Ultra Bullet Camera provides two connector types. Select an option based on your installation environment. • Option 1 (Waterproof) To waterproof the cable, install the supplied cable connector. See 12.4.1 Waterproofing the Cable in the Quick Start Guide. •...

  • Page 144: Installation

    12.3 Installation You can install the camera to the ceiling or wall. Follow the steps below. Optionally insert a micro SD card to the camera. A. Unscrew and open the back panel with the supplied torx wrench. B. Insert a micro SD card (SD/SDHC, version 2.0 only, Class 10) into the card slot and replace the silica gel bag.
  • Page 145 Sun-Shield Cover IMPORTANT: The GeoVision logo on the sun-shield cover should be closer to the front of the camera. C. Fasten the Philips head screws with the plastic screw spacers to mount the sun-shield cover onto the camera.
  • Page 146 Ceiling Mount: Secure the black rubber and the camera stand to the other screw hole on the top. Wall Mount: Secure the black rubber and the camera stand to one of the screw holes on the bottom. Ceiling Mount Wall Mount Use the screw anchors and self-tapping screws to secure the camera to the wall.
  • Page 147 Ultra Bullet Camera Adjust angles of the camera body based on the live view. For varifocal models (GV-UBL1211 / 1511 / 2411 / 2511 / 3411), adjust the focus. For details, see 3.2.2 The Control Panel of the Live View Window, GV-IPCAM Firmware Manual.

  • Page 148: Connecting The Camera

    12.4 Connecting the Camera 12.4.1 Waterproofing the Cable Waterproof the cable of the LAN connector, using the supplied cable connector. The cable connector can be dissembled into 5 parts. [LAN Connector] [Cable Connector] Cut off the RJ-45 connector on one end of the Ethernet cable. Connect the Ethernet cable to the LAN / PoE connector.
  • Page 149 Ultra Bullet Camera Slide the components through the Ethernet cable as shown below. Paste the item 1 sticker to item 2. Move all the components toward the LAN connector, fit item 4 to item 2, secure item 3 to the LAN connector (Item A) and finally secure item 5 to item 2 tightly.

  • Page 150: Wire Definition

    12.4.2 Wire Definition The supplied 4-pin data cable provides connections for power, ground, 1 sensor input and 1 alarm output. The wires are defined below: Wire Color Definition DC 5V Green Digital In Blue Digital Out Black Ground...

  • Page 151: Power Connection

    Ultra Bullet Camera 12.4.3 Power Connection Connect the camera to power using one of the following methods: • Use a Power over Ethernet (PoE) adapter to connect the camera to the network, and the power will be provided at the same time. •...

  • Page 152: Target Bullet Camera (Part I)

    13. Target Bullet Camera (Part I) 13.1 Packing List • Target Bullet Camera • Sun-Shield Cover • Silica Gel Tape x 2 • Supporting Rack • Screw for Supporting Rack x 3 • Screw Anchor x 3 • Screw for Sun-shield Cover •...

  • Page 153: Overview

    Target Bullet Camera (Part I) 13.2 Overview Name Description Power Connects to the data cable. For details, see Connector 13.4.1 Connecting the Camera. Resets the camera to default settings. See 29. Restoring to Default Settings in the Quick Start Default Button Guide.
  • Page 154 IMPORTANT: The silica gel loses its effectiveness when the camera is opened. If you open the camera to access the load default button, replace the silica gel tape by taping the new silica gel tape to the inside of the camera cover. Make sure you conceal the silica gel tape in the camera within two minutes of exposing to the open air.

  • Page 155: Installation

    RJ-45 connector. Slide the sun-shield cover onto the top of the camera. Note: The GeoVision logo on the sun-shield cover should be closer to the front of the camera. Line up the screw hole on the camera with the opening on the...
  • Page 156 Ceiling Mount: Secure the supporting rack to the opening on the sun-shield cover. Wall Mount: Insert and tighten the supplied screw on the sun-shield cover. Secure the supporting rack to the bottom. IMPORTANT: To avoid waterproofing failures, do not open the screw on the camera body (see Note for Bullet Waterproofing Failures).
  • Page 157 Target Bullet Camera (Part I) Thread the Ethernet cable into the conduit connector. For details, see step 6, 10.3 Installation. Note: The size of RJ-45 connector must be within 14 mm to plug into the jack of the conduit. Unfit size of RJ45 Connector...
  • Page 158 Install the camera to the wall or ceiling using the screw anchors and self-tapping screws. You can also stand the camera on a plain surface. Remove the protection sticker from the camera’s cover. Connect the wires and cable connector to the camera. See 13.4 Connecting the Camera in the Quick Start Guide.

  • Page 159: Connecting The Camera

    Target Bullet Camera (Part I) 13.4 Connecting the Camera 13.4.1 Wire Definition The data cable provides connections for power, ground and network access. The wires are defined below: Wire Color Definition DC 12V Black Ground Black (thick) PoE, Ethernet...

  • Page 160: Power Connection

    13.4.2 Power Connection There are two ways to supply power to the camera: • Use a Power over Ethernet (PoE) adapter to connect the camera to the network, and the power will be provided at the same time. • Plug the power adaptor to the terminal block as shown below. The power adapter is an optional device.

  • Page 161: Target Bullet Camera (Part Ii)

    Target Bullet Camera (Part II) 14. Target Bullet Camera (Part II) The information in this chapter applies to GV-EBL2101. 14.1 Packing List • Target Bullet Camera • Sun-Shield Cover • Silica Gel Bag x2 • Screw for Supporting Rack x 3 •...
  • Page 162 • GV-Software DVD • Warranty Card...

  • Page 163: Overview

    Target Bullet Camera (Part II) 14.2 Overview Name Description Zoom Screw Holds the zoom lens in place. Focus Screw Holds the focus lens in place Resets the camera to default settings. See 29. Default Button Restoring to Factory Default Settings in the Quick Start Guide.

  • Page 164: Installation

    14.3 Installation You can install the camera to the ceiling or wall. Follow the steps below. Replace the Silica Gel Bag. Remove the camera cover from the camera. Loosen the camera’s screws and the hexagon pillars as indicated below.
  • Page 165 Target Bullet Camera (Part II) C. Take out the camera from the camera body D. Cut the 2 silica gel bags apart with scissors and place the new silica gel bags at the lower half of the camera body. Secure the 2 hexagon pillars to the upper and lower holes of camera module as indicated below.
  • Page 166 Note: The GeoVision logo on the sun-shield cover should be closer to the front of the camera. There are two holes for the screws at the back of the camera. You...
  • Page 167 Target Bullet Camera (Part II) Thread the Ethernet cable into the conduit connector. For details, see step 6, 10.3 Installation. Note: If you can’t plug the self-prepared RJ-45 connector into the jack of the conduit, it is suggested to use the supplied RJ-45 connector.
  • Page 168 Install the camera to the wall or ceiling using the screw anchors and screws for supporting rack. IMPORTANT: To avoid waterproofing failures, the top of the camera must be facing upward for wall mount. Connect the wires and cable connector to the camera. See 14.4 Connecting the Camera.

  • Page 169: Connecting The Camera

    Target Bullet Camera (Part II) 14.4 Connecting the Camera 14.4.1 Wire Definition The data cable provides connections for power, ground and network access. The wires are defined below: Wire Color Definition DC 12V Black Ground Black (thick) PoE, Ethernet 14.4.2 Power Connection For details, see 13.4.2 Power Connection.

  • Page 170: Vandal Proof Ip Dome (Part I)

    15. Vandal Proof IP Dome (Part I) The information in this chapter applies to GV-VD120D / 121D / 122D / 123D / 220D / 221D / 222D / 223D / 320D / 321D / 322D / 323D / 1500 / 2400 / 2500 / 3400.
  • Page 171 Vandal Proof IP Dome (Part I) • GV-IPCam Software DVD • Power Adapter • GV-Software DVD • Warranty Card Note: 1. Focus Adjustment Cap is only needed and supplied for IK10+ models. 2. The power adapter can be excluded upon request.

  • Page 172: Overview

    15.2 Overview Name Description Turns on (green) when the power is on and Power LED turns off when there is no power supply. Turns on (green) when the system Status LED operates normally and turns off when system error occurs. Resets the camera to default settings.
  • Page 173 Vandal Proof IP Dome (Part I) Name Description Zoom Screw Adjusts the zoom of the camera. Focus Screw Adjusts the focus of the camera. Silica Gel Bag Absorbs moisture in the camera body.

  • Page 174: Installation

    15.3 Installation The Vandal Proof IP Dome is designed for outdoors. With the standard package, there are two ways to install the Vandal Proof IP Dome: hard-ceiling mount and in-ceiling mount. Note: You can also install the camera: • on a power box (of the 4" square and double gang type) using the standard package •...

  • Page 175: Hard-Ceiling Mount

    Vandal Proof IP Dome (Part I) 15.3.1 Hard-Ceiling Mount Unpack the camera package and take out the camera body. Unscrew the housing cover Unscrew thread lock...
  • Page 176 Unscrew the inner housing Take out the camera body Mark the position of four screw holes on the desired installation location, and drill holes in the marked locations. Drill the ellipse part if you wish to put the wires through it.
  • Page 177 Vandal Proof IP Dome (Part I) Insert the screw anchors to the 4 holes on the ceiling. Secure the back cover to the ceiling with 4 ceiling screws. wall Refer to step 1 to secure the camera body with inner housing. Thread the cable through the conduit entry at the side of the back cover.
  • Page 178 Pan Adjustment Tilt Adjustment Rotational Adjustment...
  • Page 179 Vandal Proof IP Dome (Part I) 10. Hold the focus adjustment cap on top of the camera view and adjust for image clarity using the GV-IP Device Utility program. For details, see 25.3 Adjusting Image Clarity in the Quick Start Guide. Focus Screw Zoom Screw 11.

  • Page 180: In-Ceiling Mount

    15.3.2 In-Ceiling Mount Follow step 1 in the Hard-Ceiling Mount section to remove the housing cover, thread lock and back cover, and take out the camera body. Cut out a circle with a diameter of 142 mm on the ceiling. Insert a blue screw to the indicated holes on the camera body.
  • Page 181 Vandal Proof IP Dome (Part I) Screw in a plastic clip to the blue screw, hold it with one hand and use a screw driver to rotate the blue screw until the plastic clip moves half way down. Plastic Clip Secure a T-cap on top of the blue screw with a small screw cap and a T-cap screw.
  • Page 182 Insert the camera to the ceiling with the plastic screws moved inward. Move the blue screws out and rotate the blue screw with a screw driver until the plastic clip and the bottom of the camera body clamps the ceiling tightly. Connect the network and power cables to the camera.

  • Page 183: Connecting The Camera

    Vandal Proof IP Dome (Part I) 15.4 Connecting the Camera Connect your Vandal Proof IP Dome to power, network and other cables. 15.4.1 Wire Definition The cables for Vandal Proof IP Dome are illustrated and defined below. Shielding ground DC 12V- / AC 24V- DC 12V+ / AC 24V+ Digital in (oragne) Digital out (brown)
  • Page 184 Note: To use the TV out function, connect the black BNC connector to a monitor and select your signal format (NTSC or PAL) at the TV Out field on the Web interface. For details, see Video Settings, Administrator Mode Chapter, GV-IPCam Firmware Manual on the Software DVD.

  • Page 185: Connecting The Power Cable

    Vandal Proof IP Dome (Part I) 15.4.2 Connecting the Power Cable There are two ways to supply power to the camera: • Use a Power over Ethernet (PoE) adapter to connect the camera to the network, and the power will be provided at the same time. •...

  • Page 186: Vandal Proof Ip Dome (Part Ii)

    16. Vandal Proof IP Dome (Part II) The information in this chapter applies to GV-VD1530 / 1540 / 2430 / 2440 / 2530 / 2540 / 2540-E / 3430 / 3440 / 5340 / 5340-E / 4711 / 5711. 16.1 Packing List •...
  • Page 187 Vandal Proof IP Dome (Part II) • RJ-45 Connector x 2 • Back Plate • Installation sticker • Screw Anchor x 4 Ceiling mount template • Long Screw x 4 • Flat Screw • Short Screw x 2 • Silica Gel Bag •...
  • Page 188 • GV-Vandal Proof IP Dome • GV-Software DVD Hardware Installation Guide • GV-IPCAM Software DVD • Warranty Card Note: You can choose to run the wires through a conduit pipe. After you have threaded all the wires, install the supplied conduit converter and plastic PG21 conduit connector with a self-prepared 1/2’’...

  • Page 189: Overview

    Vandal Proof IP Dome (Part II) 16.2 Overview...
  • Page 190 Name Description LED Indicators The power LED (top) turns on (green) when the power is on and turns off when there is no power supply. The status LED (bottom) turns on (green) when the system operates normally and turns off when system error occurs.

  • Page 191: Installation

    Vandal Proof IP Dome (Part II) 16.3 Installation The Vandal Proof IP Dome is designed for outdoors. With the standard package, you can install the camera on the ceiling. Note: You can also install the camera: • on a power box (of the 4" square and double gang type) using the standard package •...
  • Page 192 B. Unplug the conduit connector inside the housing and disintegrate the connector. You should have 4 parts: C. Remove the terminal block from the power adapter. (Power adapter is not supplied for GV-VD4711 / 5711) D. Thread the audio wires (optional), TV out wire (optional), adapter wires and I/O wires (optional) through the conduit entry and then through part 1, 2, 3 and 4 of the conduit connector.
  • Page 193 Vandal Proof IP Dome (Part II) 2.6 mm: Audio, BNC 2 mm: DC12V / AC24V 1.8 mm: DIDO IMPORTANT: 1. Use the supplied ruler and leave about 10 cm of power and I/O wires between their connectors and the cable gland; leave at least 11 cm of audio/TV-out wires between their connectors and the cable gland.
  • Page 194 Install the Ethernet cable. A. Rotate to remove the indicated cap and the plug inside. B. Thread an Ethernet cable (the end with no RJ-45 connector) from the back panel through the cable gland. IMPORTANT: Use the supplied ruler and leave about 11 cm of the Ethernet cable between the connector and the cable gland.
  • Page 195 Vandal Proof IP Dome (Part II) Connect the wires to the camera. Install the terminal blocks to the power adapter and I/O devices. See 15.4 Connecting the Camera in the Quick Start Guide. Install the supplied RJ-45 connector to the Ethernet cable. Plug all the connectors to the camera panel.
  • Page 196 Sort out the wires at the back. You can have the wires come out from position A, B or both. The instructions here describe sorting wires for position A. From the back of the camera housing, unscrew and rotate the plate to one side, sort out the wires and secure the plate back.
  • Page 197 Vandal Proof IP Dome (Part II) Secure the back plate to the ceiling. A. Paste the sticker to the ceiling. The arrow on the sticker indicates the direction that the camera faces. Ceiling mount template B. Drill 3 holes for screws. The recommended ones are indicated as ‘1’.
  • Page 198 Secure the camera to the ceiling. Secure the safety lock to the camera using a short screw. Use flat screw for number 1 and small screw for number 2. Thread all the wires into the ceiling and connect them. C. Secure the camera using the torx wrench. Access the live view.
  • Page 199 Vandal Proof IP Dome (Part II) Pan Adjustment Tilt Adjustment Rotational Adjustment...
  • Page 200 10. Replace the silica gel bag and secure the camera cover using the torx wrench. IMPORTANT: If the center of the camera view is less than 25° to the ceiling, or lower than the grey line (as illustrated below), disassemble the indicated ring so the view is not obstructed.

  • Page 201: Connecting The Camera

    Vandal Proof IP Dome (Part II) 16.4 Connecting the Camera Connect your Vandal Proof IP Dome to power, network and other wires needed. 16.4.1 Connecting the Power Cable There are two ways to supply power to the camera: • Use a Power over Ethernet (PoE) adapter to connect the camera to the network, and the power will be provided at the same time.

  • Page 202: Connecting The I/O Device

    16.4.2 Connecting the I/O Device The camera support one digital input and one digital output of dry contact. Function Digital Output Digital Input For details on how to enable an installed I/O device, see I/O Settings, Administrator Mode Chapter, GV-IPCAM Firmware Manual on the Software DVD.

  • Page 203: Vandal Proof Ip Dome (Part Iii)

    Vandal Proof IP Dome (Part III) 17. Vandal Proof IP Dome (Part III) The information in this chapter applies to GV-VD3700 / 4700 / 5700. 17.1 Packing List • H.265 Vandal Proof IP Dome • Torx Wrench • Long Screw x 4 •...
  • Page 204 • Cable Stopper • Anti-Drop Wire • Screw (for the Anti-Drop Wire) • Silica Gel Bag x 2 • Sticker (for Silica Gel Bag) x 2 • GV-IPCAM Software DVD • GV-Software DVD • Pan Angle Notification Card • Warranty Card Note: The supplied anti-drop wire is used for attaching the camera body to GV-Mount206.

  • Page 205: Overview

    Vandal Proof IP Dome (Part III) 17.2 Overview...
  • Page 206 Name Description Rotational Screw Loosen to rotate the lens. Insert a micro SD card (SD/SDHC/SDXC/ SD Card Slot UHS-I, Class 10) to store recording data. * UHS-II card type is not supported. Base Screw Loosen to pan the camera. Tilt Screw Loosen to tilt the camera.

  • Page 207: Installation

    Vandal Proof IP Dome (Part III) 17.3 Installation The Vandal Proof IP Dome is designed for outdoors. With the standard package, you can install the camera on the ceiling. Remove the housing cover with the supplied torx wrench. Thread the Ethernet cable into conduit connector. For details, see step 6, 10.3 Installation.
  • Page 208 Connect the audio wires (optional), power adapter wires and I/O devices (optional) to the camera. See 16.4 Connecting the Camera. Secure the back plate to the ceiling. Paste the sticker to the ceiling. The triangle on the sticker indicates the direction that the camera faces. Ceiling mount template Drill 4 holes for screws.
  • Page 209 Vandal Proof IP Dome (Part III) Align and secure the back plate to the rear side of the camera with the supplied short screws. Insert your micro SD card into the SD card slot. Access the live view. See 26.2 Accessing the Live View. Based on the live view, adjust the camera’s angle, focus and zoom.
  • Page 210 Pan Adjustment IMPORTANT: Loosen the Base Screw (No. 3, 17.2 Overview) before adjusting the camera pan angle. The front of the camera is marked with a white line in front of the memory card slot. When adjusting the camera pan angle, avoid turning the camera for more than 180 degrees in either direction.
  • Page 211 Vandal Proof IP Dome (Part III) Paste the silica gel bag with a sticker right behind the lens. Secure the housing cover back to the camera body. Note: You can remove the cable stopper to thread the camera’s cable through the side opening.

  • Page 212: Connecting The Camera

    17.4 Connecting the Camera Connect your Vandal Proof IP Dome to power, network and other cables needed. 17.4.1 Definition Wire Name Definition DI + Digital out + DI - Digital out - 4-Pin terminal block DO + Digital in + DO - Digital in - L –...

  • Page 213: Power Connection

    Vandal Proof IP Dome (Part III) 17.4.2 Power Connection There are two ways to supply power to the camera: Use a Power over Ethernet (PoE) adapter to connect the camera to the network, and the power will be provided at the same time. Connect the wires of your power adapter to the DC 12V+ and DC 12V- pins of the terminal blocks.

  • Page 214: Vandal Proof Ip Dome (Part Iv)

    18. Vandal Proof IP Dome (Part IV) The information in this chapter applies to GV-VD2702 / 2712. 18.1 Packing List • H.265 Vandal Proof IP Dome • Torx Wrench • Screw x 4 • Screw Anchor x 4 • TV-Out Wire •...
  • Page 215 Vandal Proof IP Dome (Part IV) • Installation sticker • RJ-45 Connector Ceiling mount template • Conduit Converter • Water proof rubber sets (for RJ-45 Cat.5 and 12V DC / for RJ-45 Cat.6) Cat.6 Cat.5 (Ø 6 mm) (Ø 5 mm) •...
  • Page 216 Note: You can choose to run the wires through a conduit pipe. After you have threaded all the wires, install the supplied conduit converter and plastic PG21 conduit connector with a self-prepared 1/2’’ conduit pipe to the camera. Power will have to be supplied through a PoE adapter, because the power adapter wire does not fit in a 1/2”...

  • Page 217: Overview

    Vandal Proof IP Dome (Part IV) 18.2 Overview...
  • Page 218 Name Description LED Indicators The power LED (top) turns on (green) when the power is on and turns off when there is no power supply. The status LED (bottom) turns on (green) when the system operates normally and turns off when system error occurs.
  • Page 219 Vandal Proof IP Dome (Part IV) Tilt Screw Loosens the screw to tilt the camera. TV-Out Provides video input (D1 resolution) for a monitor. Conduit Connector Waterproofs the audio / I/O wires. Cable Gland Waterproofs the Ethernet cable. Zoom Screw Adjusts the zoom of the camera.

  • Page 220: Installation

    18.3 Installation The Vandal Proof IP Dome is designed for outdoors. With the standard package, you can install the camera on the ceiling. Note: You can also install the camera to ceilings, wall corners (concave or convex), and poles using optional mounting kits. For details on these installations, see GV-Mount Accessories Installation Guide on the Software DVD.
  • Page 221 Vandal Proof IP Dome (Part IV) Remove the back plate with the supplied torx wrench and remove the safety lock with a Philips screwdriver. Keep the removed screw for later use. Safety lock Thread wires into the camera. A. Rotate to remove the cap of the conduit connector.
  • Page 222 B. Unplug the conduit connector inside the housing and disintegrate the connector. You should have 3 parts: C. Thread the audio wires and I/O wires through the conduit entry and then through part 1, 2, and 3 of the conduit connector. Tip: 1.
  • Page 223 Vandal Proof IP Dome (Part IV) 3.2 mm: Audio 1.9 mm: DIDO IMPORTANT: Use the supplied ruler and leave at least 14 cm of I/O wires and 10 cm of audio wires between their connectors on the camera and the cable gland.
  • Page 224 If you use cat 6 Ethernet cable, you need to thread the DC 12V wires through the conduit connector. Followings are the corresponding holes. 3.2 mm: Audio 1.9 mm: DIDO mm: DC 12V IMPORTANT: Leave more than 10 cm of power wires between their connectors on the camera and the cable gland.
  • Page 225 Vandal Proof IP Dome (Part IV) B. Thread an Ethernet cable (the end with no RJ-45 connector) and the optional power adapter wires from the back panel through the cable gland. IMPORTANT: Use the supplied ruler and leave about 14 cm of the Ethernet cable between the connector on the camera and the cable gland.
  • Page 226 Connect the wires to the camera and insert the memory card to the memory card slot. Install the terminal blocks to the power adapter and I/O devices. See 18.4 Power Connection and 18.5 I/O Connector. Install the supplied RJ-45 connector to the Ethernet cable. Plug all the connectors to the camera panel.
  • Page 227 Vandal Proof IP Dome (Part IV) Sort out the wires at the back. You can have the wires come out from position A and B or from C. Secure the back plate to the ceiling. A. Paste the sticker to the ceiling. The arrow on the sticker indicates the direction that the camera faces.
  • Page 228 Secure the camera to the ceiling. Secure the safety lock to the camera with the screw you removed from the back plate in step 2. Safety lock Thread all the wires into the ceiling and connect them. C. Secure the camera to the back plate with the torx wrench.
  • Page 229 Vandal Proof IP Dome (Part IV) Access the live view. See 2.1 Accessing the Live View, GV-IPCam Firmware Manual. Note: The TV-out function can be used to access the live view. For details, see the note for TV-out in 4.3 Overview. 10.
  • Page 230 11. Replace the silica gel bag, press all the wires and cables into the notch and secure the camera cover with the torx wrench.

  • Page 231: Connecting The Camera

    Vandal Proof IP Dome (Part IV) 18.4 Connecting the Camera Use a standard network cable to connect the camera to your network. Optionally connect a speaker and an external microphone. Optionally connect a monitor using a Video Out wire. Enable this function by selecting your signal format at the TV Out field on the Web interface.

  • Page 232: I/O Connector

    18.5 I/O Connector The camera supports one digital input and one digital output of dry contact. Supplied I/O Cable Function Digital Output Black White Digital Input For details on how to enable an installed I/O device, see 4.2 I/O Settings, GV-IPCam Firmware Manual.

  • Page 233: Target Vandal Proof Ip Dome

    Target Vandal Proof IP Dome 19. Target Vandal Proof IP Dome 19.1 Packing List • Target Vandal Proof IP • Torx Wrench Dome • Screw x 4 • Screw Anchor x 4 • TV-Out Wire • Audio Wires x 2 •...
  • Page 234 • Conduit Converter • Water proof rubber sets (for RJ-45 Cat.5 and 12V DC / for RJ-45 Cat.6) Cat.6 Cat.5 (Ø 6 mm) (Ø 5 mm) • Big Concave hexagon • Small Concave hexagon Wrench Wrench • Silica Gel Bag •...
  • Page 235 Target Vandal Proof IP Dome Note: With the supplied Conduit Converter, you can choose to run the wires through a conduit pipe. The installation of conduit converter and conduit pipe is illustrated as below. You may optionally purchase a plastic or metal PG21 conduit connector for a 1/2”...

  • Page 236: Overview

    19.2 Overview 13 12...
  • Page 237 Target Vandal Proof IP Dome Name Description The power LED (top) turns on (green) when the power is on and turns off when there is no power supply. The status LED (bottom) LED Indicators turns on (green) when the system operates normally and turns off when system error occurs.

  • Page 238: Installation

    19.3 Installation The Target Vandal Proof IP Dome is designed for outdoors. With the standard package, you can install the camera on the ceiling. Remove the housing cover with the supplied torx wrench. Remove the back plate with the supplied torx wrench and remove the safety lock with a Philips screwdriver.
  • Page 239 Target Vandal Proof IP Dome Thread an Ethernet cable and/or the adapter wire into the camera. Rotate to remove the indicated cap. B. Take out and disintegrate the connector. You should have 3 parts: C. Thread an Ethernet cable (the end without RJ-45 connector) and/or the adapter wire from the back panel.
  • Page 240 D. Thread an Ethernet cable / adapter wire through part 1 of the connector. According to the below situation, replace the connector if necessary. For users of PoE with a Cat.5 Ethernet cable, stay with 1a connector on the camera body. For users of PoE with a Cat.6 Ethernet cable, change the 1a connector to the supplied Waterproof rubber set (1b).
  • Page 241 Target Vandal Proof IP Dome Re-install the cap (part 3) with the supplied big concave hexagon wrench. Make sure the cap is installed tightly to waterproof the camera. Thread audio wires (optional) into the camera. Rotate to remove the cap of the conduit connector. Take out and disintegrate the connector.
  • Page 242 Re-install the cap (part 3) with the supplied small concave hexagon wrench. Make sure the cap is installed tightly to waterproof the camera. Tip: Use a pair of pliers to help you pull the wires through the camera. IMPORTANT: Use the supplied ruler and leave about 10 cm of the audio wires between the connectors and the cable gland.
  • Page 243 Target Vandal Proof IP Dome Sort out the wires at the back. You can have the wires come out from both positions A and B, or from C. Secure the back plate to the ceiling. Paste the sticker to the ceiling. The arrow on the sticker indicates the direction that the camera faces.
  • Page 244 Drill A & B holes or only C hole for sorting out the wires according to step 6. Secure the back plate to the ceiling with the supplied screws. Secure the camera to the ceiling. Secure the safety lock to the camera with the screw you removed from the back plate in step 2.
  • Page 245 Target Vandal Proof IP Dome Access the live view. See 26.2 Accessing the Live View in the Quick Start Guide. Note: The TV-out function can be used to access the live view. See the Note for TV-out in 18.2 Overview. 10.
  • Page 246 11. Replace the silica gel bag, press all the wires and cables into the notch and secure the camera cover with the torx wrench.

  • Page 247: Connecting The Camera

    Target Vandal Proof IP Dome 19.4 Connecting the Camera There are two ways to supply power to the camera: • Use a Power over Ethernet (PoE) adapter to connect the camera to the network, and the power will be provided at the same time. •...

  • Page 248: Fixed Ip Dome

    20. Fixed IP Dome The information in this chapter applies to GV-FD1200 / 1500 / 2400 / 2500 / 3400 / 1210 / 1510 / 2510 / 2410 / 3410 / 5300. 20.1 Packing List 20.1.1 Packing List for Hard-Ceiling Mount •...

  • Page 249: Packing List For In-Ceiling Mount

    Fixed IP Dome 20.1.2 Packing List for In-Ceiling Mount • In-Ceiling Housing Cover • Mounting Plate • Mounting Bracket x 3 • Copper Pillar x 3 • Copper Pillar Screw x 6 • Bracket Screw x 3 • Thread Lock Screw •...

  • Page 250: Overview

    20.2 Overview 10 11 12 13 14 15 Name Description Focus Screw Adjusts the focus of the camera. Zoom Screw Adjusts the zoom of the camera. Rotational Screw Loosens to adjust the camera angle. Tilt Screw Loosens the screw to tilt the camera. Pan Disc Loosens to pan the camera.
  • Page 251 Fixed IP Dome Name Description Audio Out Connects a speaker for audio output. LAN / PoE Connects to a 10/100 Ethernet or PoE. Connects to I/O devices. For details, see I/O Terminal Block Fixed IP Dome Chapter in the GV-IPCAM Firmware Manual on the Software DVD.

  • Page 252: Installation

    20.3 Installation The Fixed IP Camera is designed for indoors. With the standard packing, there are three ways to install the Fixed IP Camera: hard-ceiling mount, in-ceiling mount and wall-surface mount. 20.3.1 Hard-Ceiling Mount Paste the supplied sticker onto a desired location on the ceiling. Drill the three red dots and the ellipse mark only if you wish to run the wires into the ceiling.
  • Page 253 Fixed IP Dome Take out the camera body Secure the camera body and the mounting plate to the ceiling with the three ceiling screws. Ceiling mounting plate Connect the network and power cables to the camera. See 19.4 Connecting the Camera in the Quick Start Guide. Access the live view.
  • Page 254 Pan Adjustment Tilt Adjustment Rotational Adjustment...
  • Page 255 Fixed IP Dome Adjust for image clarity using the GV-IP Device Utility program. For details, see 25.3 Adjusting Image Clarity in the Quick Start Guide. Focus Screw Zoom Screw Secure the housing cover as shown in step 2. Remove the indicated part when necessary.

  • Page 256: In-Ceiling Mount

    20.3.2 In-Ceiling Mount Follow step 2 in the Hard-Ceiling Mount section to remove the housing cover and take out the camera body. Paste the supplied sticker onto a desired location on the ceiling and cut a circle on the ceiling along the edge of the sticker. On the mounting plate, locate the 3 holes labeled as 1 and insert the 3 copper pillars from the back side.
  • Page 257 Fixed IP Dome Place the 3 mounting brackets at the indent next to the copper pillars (labeled as 2 on the mounting plate) and secure them using the 3 bracket screws. Place the mounting plate on the camera body with the copper pillars inserted in the locations indicated below.
  • Page 258 On the back side, make sure the black plastic clips are slightly above the ceiling board and pointing outward. Back Side Front Side 10. Tighten the bracket screws from the front side of the camera. 11. Connect the network and power cables to the camera. See 19.4 Connecting the Camera in the Quick Start Guide.
  • Page 259 Fixed IP Dome 15. Place the housing cover on the camera body with the GeoVision logo pointing toward the front of the camera.

  • Page 260: Wall-Surface Mount

    20.3.3 Wall-Surface Mount Follow step 2 in the Hard-Ceiling Mount section to remove the housing cover and take out the camera body. Paste the supplied sticker onto a desired location on the wall. Drill the three red dots, and the ellipse mark only if you wish to run the wires into the wall.
  • Page 261 Fixed IP Dome Follow steps 6 and 7 in the Hard-Ceiling Mount section to adjust the angle, focus and zoom of the camera. Follow step 8 in the Hard-Ceiling Mount section to secure the housing cover.

  • Page 262: Connecting The Camera

    20.4 Connecting the Camera Use a standard network cable to connect the camera to your network. Optionally connect a speaker and an external microphone. Optionally connect a monitor using a Video Out wire. Enable the function by selecting the signal format in the TV Out field in the Web interface.

  • Page 263: Target Fixed Ip Dome

    Target Fixed IP Dome 21. Target Fixed IP Dome 21.1 Packing List • Target Fixed IP Dome • Torx Wrench • Screw x 3 • Screw Anchor x 3 • TV-Out Wire • Installation sticker • GV-IPCam Software DVD • Warranty Card •...

  • Page 264: Overview

    21.2 Overview Name Description Lens Receives image inputs. Focus Screw Adjusts the focus of the camera. Zoom Screw Adjusts the zoom of the camera. Default Resets the camera to default settings. See 29. Button Restoring to Default Settings. TV-Out Provides video inputs (D1 resolution). Rotational Loosens to adjust the camera angle.
  • Page 265 Target Fixed IP Dome Name Description Turns on (orange) when data are being transmitted. DC 12V Port Connects to power. LAN / PoE Connects to a 10/100 Ethernet or PoE. Tilt Screw Loosens the screw to adjust tilt angle. Note: The TV-out function can only be used during installation to adjust the focus of the camera.

  • Page 266: Installation

    21.3 Installation The Target Fixed Dome can be installed on the wall or the ceiling. Before installing the camera, make sure the installing site is shielded from rain and moisture. Use the supplied torx wrench to loosen three screws on the housing cover, and take out the camera body.
  • Page 267 Target Fixed IP Dome Note: The TV-out function can be used to access the live view. For details, see the Note for TV-out in 20.2 Overview. Adjust image clarity using the GV-IP Device Utility program. For details, see 25.3 Adjusting Image Clarity in the Quick Start Guide. Loosen the tile screw, pan screw or rotational screw.

  • Page 268: Connecting The Camera

    21.4 Connecting the Camera Connect power using one of the following methods: • Plug the power adapter to the 12V terminal block. The power adapter is an optional device. For detail, see Options in the manual. • Use the Power over Ethernet (PoE) function and the power will be provided over the network cable.

  • Page 269: Cube Camera

    Cube Camera 22. Cube Camera 22.1 Packing List • Cube Camera • Supporting Rack • Screw x 3 • Screw Anchor x 3 • GV-IPCam Software DVD • Power Adapter • GV-Software DVD • Warranty Card Note: The power adapter can be excluded upon request.

  • Page 270: Overview

    22.2 Overview Name Description Microphone Receives sounds. Speaker Plays sounds. Connects to a 10/100 Ethernet. Turns red when the system powers on. Turns Status LED orange when the system is ready. Turns green when the camera is connected to the LAN LED Internet.

  • Page 271: Installation

    Cube Camera 22.3 Installation Follow the steps below to install, connect to and adjust your Cube Camera. Put the supporting rack on the desired location and make marks for screw anchors. Drill the marks and insert the screw anchors. Secure the supporting rack onto the wall using the supplied screws. Screw the camera onto the supporting rack and fasten the indicated screw.
  • Page 272 Adjust the angles of the camera based on live view and fasten the indicated screw.

  • Page 273: Connecting The Camera

    See 26.2 Accessing the Camera in the Quick Start Guide. IMPORTANT: Be sure to use the GeoVision power adapter to power up the camera. To use your own power cable, make sure you look up the...

  • Page 274: Advanced Cube Camera

    23. Advanced Cube Camera 23.1 Packing List • Cube Camera • Supporting Rack • Screw x 3 • Screw Anchor x 3 • GV-IPCam Software DVD • Power Adapter • GV-Software DVD • Warranty Card Note: The power adapter can be excluded upon request.

  • Page 275: Overview

    Advanced Cube Camera 23.2 Overview 2 3 4 5 6 7 Name Description Plays sounds for tampering and motion alarm, and listens to the audio around the camera. To Speaker set up alarm sound, see Speaker section, Administrator Mode Chapter, GV-IPCAM Firmware Manual on the Software DVD.
  • Page 276 Name Description Stand screw Connects to the Supporting Rack. Power port Connects to the power adapter. Reflects system status of the camera. See the Ready LED below table. Reflects LAN status of the camera. See the below LAN LED table. Memory Receives a micro SD card (SD/SDHC, version 2.0 Card Slot...

  • Page 277: Installation

    Advanced Cube Camera 23.3 Installation Follow the steps below to install, connect to and adjust your Advanced Cube Camera. Put the supporting rack on the desired location and make marks for screw anchors. Drill the marks and insert the screw anchors. Secure the supporting rack onto the wall using the supplied screws.
  • Page 278 Adjust the angle of the camera based on live view and fasten the indicated screw. For GV-CAW120/220, to connect to the Internet through wireless service, follow the steps in 25.2.3 Configuring the Wireless Connection in the Quick Start Guide.

  • Page 279: Connecting The Camera

    Advanced Cube Camera 23.4 Connecting the Camera Use a standard network cable to connect the camera to your network. Connect power using one of the following methods: • Plug the power adapter to the power port. • Use the Power over Ethernet (PoE) function and the power will be provided over the network cable.

  • Page 280: Camera

    24. PT Camera 24.1 Packing List • GV-PT130D/220D/320D • Mounting Base • Mounting Cover • Wall Mount Bracket • Screw Anchor x 3 • Long Screw x 3 • Short Screw x 3 • Round Screw x 3...
  • Page 281 PT Camera • Terminal Block • Washer x 3 • Power Adapter • GV-IPCAM Software DVD • GV-Software DVD • Warranty Card Note: The power adapter can be excluded upon request.

  • Page 282: Overview

    24.2 Overview 6 7 8...
  • Page 283 PT Camera Name Description DC 12V / AC 24V Connects to a DV 12V or AC 24V Power Terminal Block Adapter. LAN / PoE Connects to a 10/100 Ethernet or PoE. Connects to I/O terminal device. For details, see I/O Terminal Block, PTZ I/O Terminal Block Camera Chapter, GV-IPCAM Firmware Manual on the Software DVD.

  • Page 284: Installation

    24.3 Installation The GV-PT series is designed for indoor usage. Make sure that the installing location is shielded from rain and moisture. There are two ways to install the camera: Ceiling Mount and L-Shaped Wall Mount. 24.3.1 Ceiling Mount Use the mounting base to make 3 marks on the wall for screw anchors.
  • Page 285 PT Camera Fix the mounting base (now with the PT Camera attached) to the wall with 3 long screws. Put on the mounting cover. To fit the installation environment, you can cut the parts indicated by arrows to make an opening for wires and cables.

  • Page 286: L-Shaped Wall Mount

    24.3.2 L-Shaped Wall Mount You may wall-mount the GV-PT series with or without the mounting cover. Take the wall mount bracket and make 2 marks on the wall for screw anchors. wall Drill the marks and insert 2 screw anchors. Insert the long screws and leave enough distance (approximately 2 mm) to hang the wall mount bracket later.
  • Page 287 PT Camera Hang the wall mount bracket on the screws and push the wall mount bracket downward. Make sure the long screws are tightened. Without Mounting Cover Attach the wall mount bracket with the PT Camera using 3 washers and 3 round screws. Screw Washer...
  • Page 288 With Mounting Cover To install the mounting cover, attach the mounting base to the camera and then put on the mounting cover. See steps 3 and 5 in 23.3.1 Ceiling Mount. Attach the wall mount bracket with the PT Camera using 3 round screws.

  • Page 289: Connecting The Camera

    PT Camera 24.4 Connecting the Camera Use a standard network cable to connect the camera to your network. Optionally connect a speaker and an external microphone. Connect power using one of the following methods: • plugging the power adapter to the power port. •...

  • Page 290: Pinhole Camera

    25. Pinhole Camera 25.1 Packing List • Pinhole Camera • 1 m (3.28 ft) RJ-12 Cable • RJ12 connector • Camera Adhesive Tape x 2 • Installation Sticker • Main Body Mount...
  • Page 291 Pinhole Camera • Main Body Adhesive Tape • M3 Screw x 2 • M2 Screw • GV-IPCAM Software DVD • • GV-Software DVD GV-IPCAM Quick Start Guide • GV-NVR Quick Start Guide • Warranty Card...

  • Page 292: Overview

    25.2 Overview Camera Lens Main Body...
  • Page 293 Pinhole Camera Name Description Lens Receives images. Microphone Receives sounds. Lens Screw Loosens to adjust the camera lens. Use the supplied RJ12 cable to connect RJ12 Port the camera lens and main body. Turns on (green) when the camera lens RJ12 Status LED and main body are connected.

  • Page 294: Installation

    25.3 Installation The Pinhole Camera is designed for indoors. You can install the camera lens behind a wall or the ceiling board. Note that the thickness of the wall or ceiling board must be under 4 mm. There are two ways of installing the camera.
  • Page 295 Pinhole Camera Paste the installation sticker on the ceiling or the wall where you want to install the camera lens. Drill a hole 9 mm in diameter. Be sure to remove the sticker after you finish drilling. Paste one of the supplied camera adhesive tapes onto the camera lens.
  • Page 296 Remove the backing paper on the other side of the adhesive tape and attach the camera lens onto the wall or ceiling. The arrows on the camera lens point toward the top of the camera view. Loosen the lens screw and adjust the position of the lens so that the lens is pressing against the wall or ceiling.
  • Page 297 Pinhole Camera Place the main body mount where you want to install it, and secure the mount using one of the methods below. • Insert and tighten the two supplied M3 screws. • Paste the main body adhesive tape on the bottom side of the main body mount.
  • Page 298 Align the main body with the mount as shown below and secure with the supplied M2 screw. Connect the camera lens and the main body using the RJ-12 cable. Connect the main body to the network and supply power via the PoE cable.

  • Page 299: Connecting The Camera

    Pinhole Camera 25.4 Connecting the Camera Use the supplied RJ12 cable to connect the camera lens and the main body. The direction of cable can be changed by using the RJ12 connector. Use a Power over Ethernet (PoE) adapter to connect the camera to the network, and the power will be provided over the network cable.

  • Page 300: Accessing The Camera

    26. Accessing the Camera 26.1 System Requirement To access the GV-IP Camera through the Web browser, ensure your PC connects to the network properly and meets this system requirement: • Microsoft Internet Explorer 7.x or later Note: For the users of Internet Explorer 8, additional settings are required.

  • Page 301: Accessing The Live View

    Accessing the Camera 26.2 Accessing the Live View When the camera is connected to a network with a DHCP server, it will be automatically assigned with a dynamic IP address. See 26.2.1 Checking the Dynamic IP Address to look up this IP address. However, if you do not have a DHCP server on your network, access the camera by its default IP address 192.168.0.10 and see 26.2.2 Configuring the IP Address for more detail.

  • Page 302: Checking The Dynamic Ip Address

    26.2.1 Checking the Dynamic IP Address Follow the steps below to look up the IP address and access the Web interface. Install the GV-IP Device Utility program included on the GV-IPCAM software DVD. Note: The PC installed with GV-IP Device Utility must be under the same LAN with the GV-IPCAM you wish to configure.
  • Page 303 Accessing the Camera Find the camera with its Mac Address, click on its IP address and select Web Page. The login page appears. Type the default ID and password admin and click Apply to log in.

  • Page 304: Configuring The Ip Address

    Click Apply. The camera is now accessible by entering the assigned IP address on the Web browser. To enable the updating of images in Microsoft Internet Explorer, you must set your browser to allow ActiveX Controls and perform a one-time installation of GeoVision’s ActiveX component onto your computer.
  • Page 305 Accessing the Camera IMPORTANT: If Dynamic IP Address or PPPoE is enabled, you need to know which IP address the camera will get from DHCP server or ISP to log in. If your camera is installed in the LAN, use the GV-IP Device Utility to look up its current dynamic IP address.

  • Page 306: Configuring The Wireless Connection

    26.2.3 Configuring the Wireless Connection You may create wireless connection to the Internet for GV-BX1200 series / 1500 series / 2400 series / 2700 series / 3400 series / 5300, GV-MFD1501 Series / 2401 series / 3401 series / 5301 series, and GV-CAW120/220. To set up the wireless LAN for the first time, power on and connect a standard network cable to the camera.
  • Page 307 Accessing the Camera D. Select the Authentication Type using the drop-down list. You can also obtain this information by clicking the Access Point Survey button. E. Type the WPA-PSK Pre-shared Key or WEP depending on the encryption setting for the Access Point. Click Apply to save the configuration.
  • Page 308 Enable wireless LAN. On the Web interface, select Network and LAN. This page appears. Select Wireless for Optional Network Type. To use a dynamic IP address assigned by the DHCP server, select Dynamic IP address. To use a fixed IP address, select Static IP address and type the IP address information.

  • Page 309: Adjusting Image Clarity

    Accessing the Camera 26.3 Adjusting Image Clarity You can adjust the image clarity using the GV-IP Device Utility. Make sure that you have connected your GV-IPCAM to the network and install the GV-IP Device Utility program under the same LAN. Note: This feature only applies to the cameras that allow manual focus adjustment.
  • Page 310 Select Focus Value. The Login dialog box appears. Type the user name and password of the camera selected. The default is admin for both user name and password. This window appears. For IK10+ models (GV-VD120D / 121D / 220D / 221D / 320D / 321D / 1500 / 2400 / 3400 / 1530 / 2430 / 2530 / 3430 / 4711 / 5711), hold the supplied Focus Adjustment Cap over the camera view.
  • Page 311 Accessing the Camera For Target Mini Fixed Dome and Target Mini Fixed Rugged Dome, hold the camera cover close to the lens and use the supplied focus adjustment tool for precise focus adjustment. For Mini Fixed Dome and Mini Fixed Rugged Dome, hold the camera cover close to the lens for precise focus adjustment.

  • Page 312: Using Focus Adjustment Cap

    26.3.1 Using Focus Adjustment Cap There are two types of Focus Adjustment Caps for GV-VD120D / 121D / 220D / 221D / 320D / 321D / 1500 / 2400 / 3400 / 1530 / 2430 / 2530 / 3430 / 4711 / 5711. Focus Adjustment Cap Type I: Hold the Focus Adjustment Cap on top of the camera view, keep...
  • Page 313 Accessing the Camera Do not leave a distance between the Focus Adjustment Cap and the camera.

  • Page 314: The Web Interface

    27. The Web Interface 12 13...
  • Page 315 The Web Interface No. Name Function Play Plays live video. Stop Stops playing video. Broadcasts to the surveillance site from a remote PC. Note this function is not available for Ultra Bullet Camera and Target Series. For Cube Camera and Advanced Cube Camera, click the Microphone Push to talk button (from the pop-up menu) for the camera to switch between audio transmission and...
  • Page 316 No. Name Function Enables the PTZ Control Panel or the Visual PTZ. PTZ Control Note this function is supported by PTZ Camera and Panel PT Camera, and only partially supported by GV-IP Cameras with motorized varifocal lens. Enables the I/O Control Panel and Visual Automation.

  • Page 317: Upgrading System Firmware

    Upgrading System Firmware 28. Upgrading System Firmware GeoVision periodically releases updated firmware on the website. The new firmware can be simply loaded into the GV-IPCAM by using the Web interface or IP Device Utility included in the software DVD. IMPORTANT: To update the camera firmware from versions earlier than V2.07 to...
  • Page 318 Click the Upgrade button to start the upgrade. WARNING: The interruption of power supply during updating causes not only update failures but also damages to the camera. In this case, please contact your sales representative and send your device back to GeoVision for repair.

  • Page 319: Restoring To Default Settings

    Restoring to Default Settings 29. Restoring to Default Settings You can restore factory default settings through the Web interface or directly on the camera. 29.1 Using the Web Interface On the left menu of Web interface, select Management and select Tools.

  • Page 320: Directly On The Camera

    29.2 Directly on the Camera Box Camera Keep the power and network cables connected to the camera. Use a pin to press and hold the default button for about 8 seconds on the back panel of the camera. Default button Release the default button when the status LED blinks.

  • Page 321: Ultra Box Camera And Target Box Camera

    Restoring to Default Settings Ultra Box Camera and Target Box Camera Press and hold the default button on the back panel of the camera for about 8 seconds. Release the default button when the status LED blinks. For details, see Box Camera, 29.2 Directly on the Camera . Default button Status LED...

  • Page 322: Mini Fixed Dome

    Mini Fixed Dome Press and hold the default button for about 8 seconds. Release the default button when the status LED blinks. For details, see Box Camera, 29.2 Directly on the Camera . • GV-MFD120 / 130 / 320 Default button Status LED •...

  • Page 323: Mini Fixed Rugged Dome

    Restoring to Default Settings Mini Fixed Rugged Dome Press and hold the default button for about 8 seconds. Release the default button when the status LED blinks. For details, see Box Camera, 29.2 Directly on the Camera . Status LED Default button IR Arctic Box Camera Note the following procedure is only applicable to GV-BX2510-E / 5310-E.

  • Page 324: Target Mini Fixed Target Mini Fixed Rugged Dome

    Target Mini Fixed Target Mini Fixed Rugged Dome Press and hold the default button for about 8 seconds. Release the default button when the status LED blinks. For details, see Box Camera, 29.2 Directly on the Camera . Status LED Status LED...

  • Page 325: Bullet Camera

    Restoring to Default Settings Bullet Camera Press and hold the default button. Release the default button when the status LED blinks. For details, see Box Camera, 29.2 Directly on the Camera . • For GV-BL3700 / 5700, hold the button for 5 seconds. The ready LED blinks.

  • Page 326: Ultra Bullet Camera

    Ultra Bullet Camera Press and hold the default button for about 8 seconds to restore the default settings. For details, see Box Camera, 29.2 Directly on the Camera . Default button Target Bullet Camera Press and hold the default button for about 8 seconds to restore the default settings.

  • Page 327: Vandal Proof Ip Dome

    Restoring to Default Settings Vandal Proof IP Dome Press and hold the default button. Release the default button when the status LED blinks. For details, see Box Camera, 29.2 Directly on the Camera . • For GV-VD3700 / 4700 / 5700, hold the default button for 5 seconds. Note the camera model doesn’t have the LED.

  • Page 328: Fixed Ip Dome

    Target Vandal Proof IP Dome Press and hold the default button for about 8 seconds. Release the default button when the status LED blinks. For details, see Box Camera, 29.2 Directly on the Camera . Default Status LED Fixed IP Dome Press and hold the default button for about 8 seconds.

  • Page 329: Target Fixed Ip Dome

    Restoring to Default Settings Target Fixed IP Dome Press and hold the default button for about 8 seconds. Release the default button when the status LED blinks. For details, see Box Camera, 29.2 Directly on the Camera . Cube Camera Press and hold the default button for about 8 seconds.

  • Page 330: Advanced Cube Camera

    Advanced Cube Camera Press and hold the default button for about 8 seconds. Release the default button when the status LED blinks. The status LED turns green when the camera is ready to use. For details, see Box Camera, 29.2 Directly on the Camera .

  • Page 331: Pinhole Camera

    Restoring to Default Settings Pinhole Camera Press and hold the default button for about 8 seconds. Release the default button when the status LED blinks. For details, see Box Camera, 29.2 Directly on the Camera . Status LED Load Default...
