3. Installation

In order to take off the cover, remove the two locking screws and lift it by an angle of approx.
60º. Install the siren on flat surface, in a hard-to-reach place, so as to minimize the risk of
tampering.
Note: Leave a distance of at least 2.5 cm between the upper edge of the siren housing and
the ceiling or another object located above the siren. Otherwise, replacement of the
cover may be impossible.
The siren should be secured to the mounting surface by means of screws and screw
anchors. Be careful when screwing down the tamper element to which the tamper contact is
fastened, so as not to break the narrowings.

4. Connection

All electric connections may only be made with power supply disconnected.
The SP-4003 siren can work in conjunction with any device at the output(s) of which +12V
DC voltage will appear in emergency. The signal is triggered after +12 V voltage is applied to
the corresponding terminals of the siren (SA for acoustic signaling, SO for optical signaling).
Make sure that the output current rating of the signaling control outputs is sufficient and will
guarantee correct operation of the device.

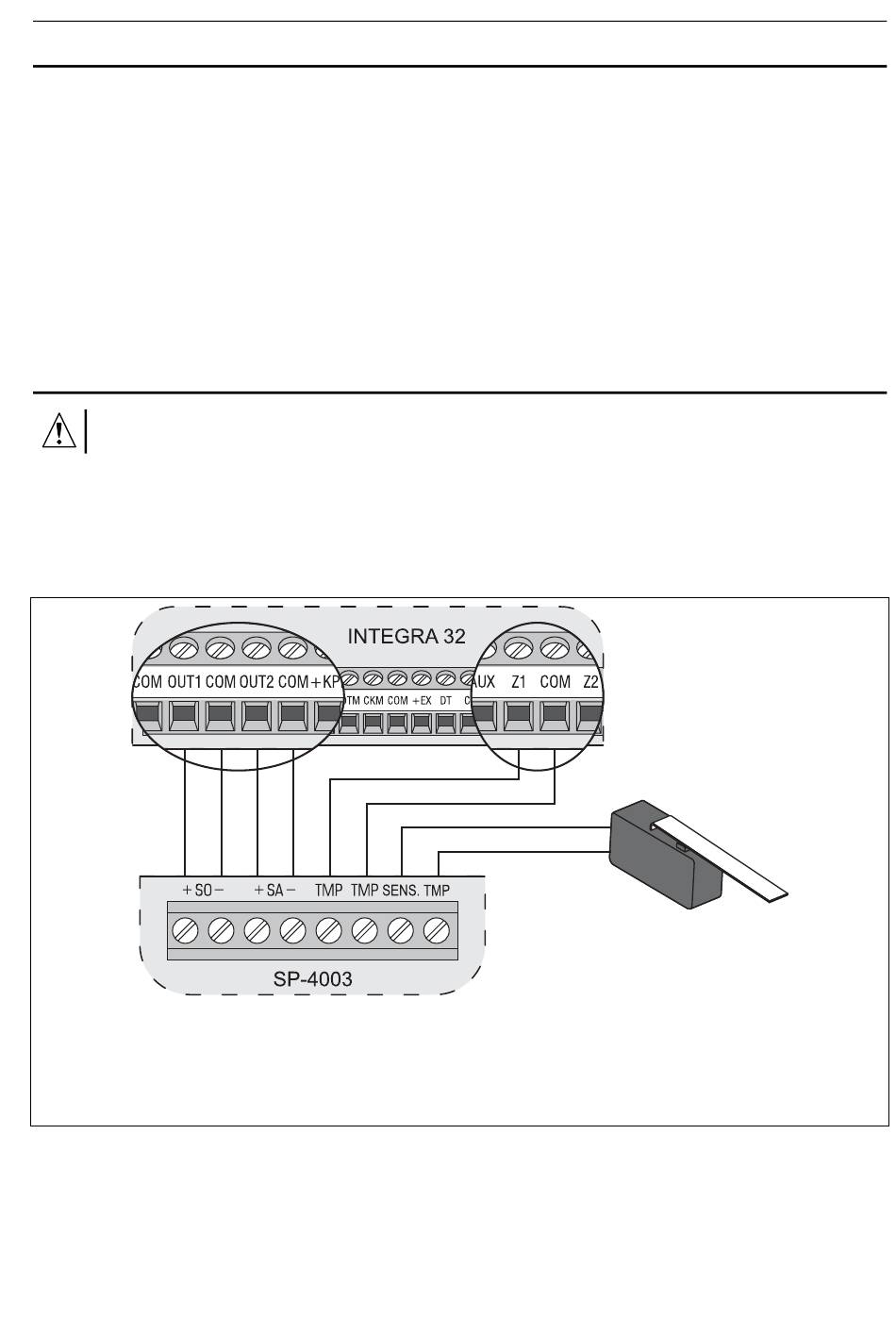

Fig. 4. Method of connecting the SP-4003 siren to control panel. Output OUT1 triggers optical
signaling and output OUT2 – acoustic signaling (the high-current outputs with normal polarity
– activation means that +12 V voltage is supplied). Zone Z1 should be programmed as 24 h
SP-4003
tamper.
