OPTICAL-ACOUSTIC OUTDOOR SIREN

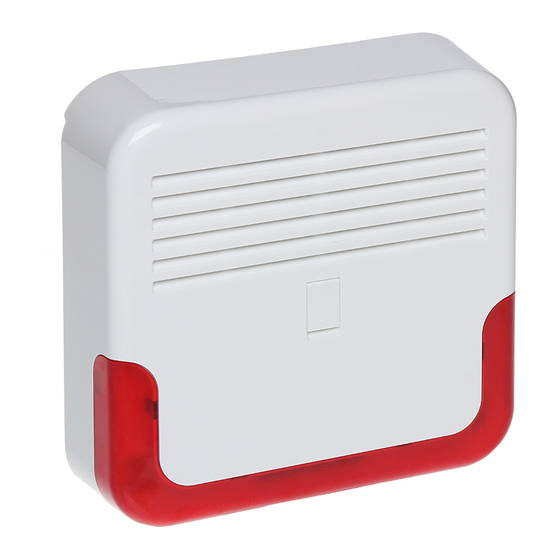

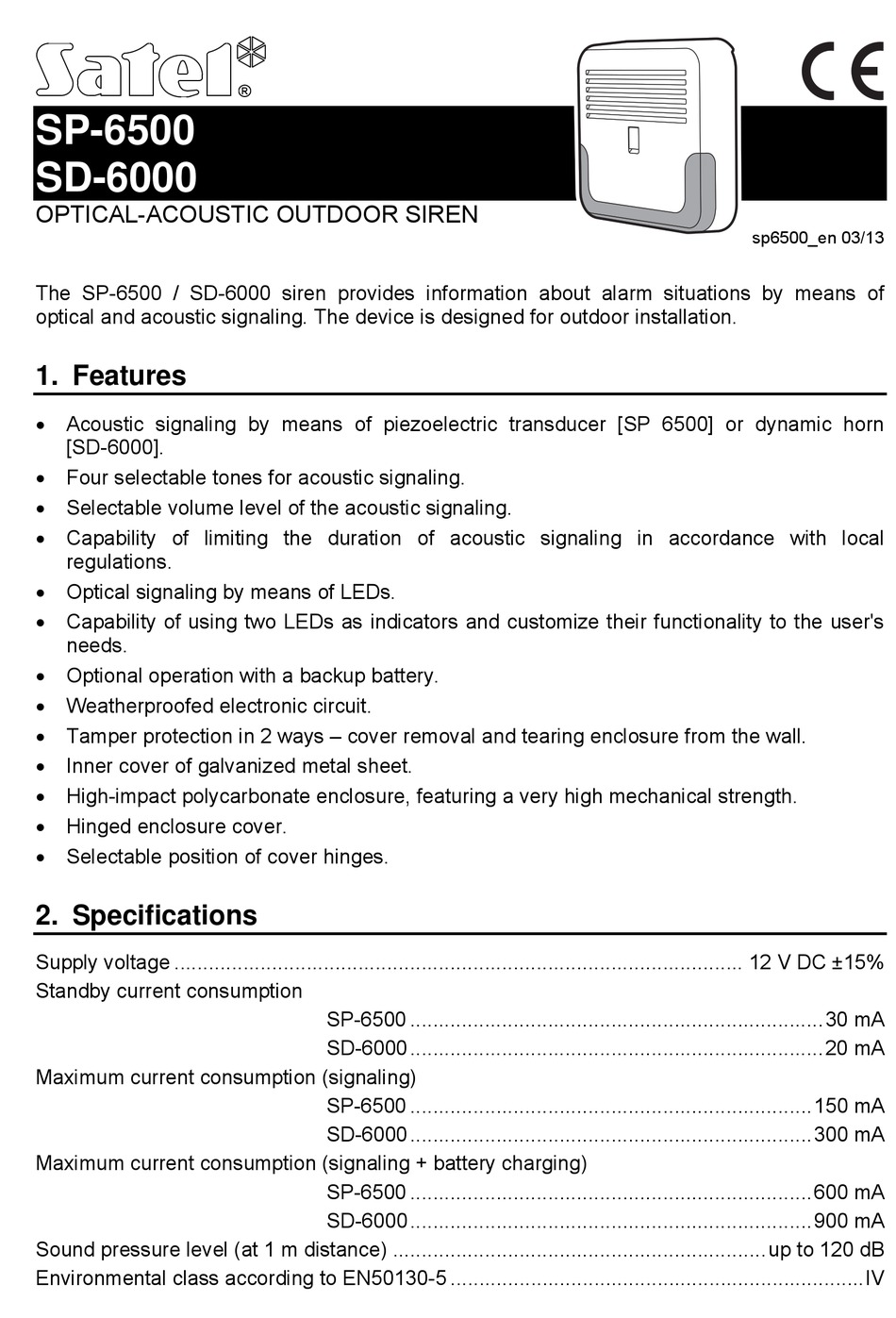

The SP-6500 / SD-6000 siren provides information about alarm situations by means of
optical and acoustic signaling. The device is designed for outdoor installation.

1. Features

 Acoustic signaling by means of piezoelectric transducer [SP 6500] or dynamic horn
[SD-6000].
 Four selectable tones for acoustic signaling.
 Selectable volume level of the acoustic signaling.
 Capability of limiting the duration of acoustic signaling in accordance with local
regulations.
 Optical signaling by means of LEDs.
 Capability of using two LEDs as indicators and customize their functionality to the user's
needs.
 Optional operation with a backup battery.
 Weatherproofed electronic circuit.
 Tamper protection in 2 ways – cover removal and tearing enclosure from the wall.
 Inner cover of galvanized metal sheet.
 High-impact polycarbonate enclosure, featuring a very high mechanical strength.
 Hinged enclosure cover.
 Selectable position of cover hinges.

2. Specifications

Supply voltage ................................................................................................... 12 V DC ±15%
Standby current consumption
Maximum current consumption (signaling)
Maximum current consumption (signaling + battery charging)
Sound pressure level (at 1 m distance) .................................................................up to 120 dB
Environmental class according to EN50130-5 ........................................................................IV
®
SP-6500 ........................................................................30 mA
SD-6000 ........................................................................20 mA
SP-6500 ......................................................................150 mA
SD-6000 ......................................................................300 mA
SP-6500 ......................................................................600 mA
SD-6000 ......................................................................900 mA
sp6500_en 03/13
