1. GENERAL

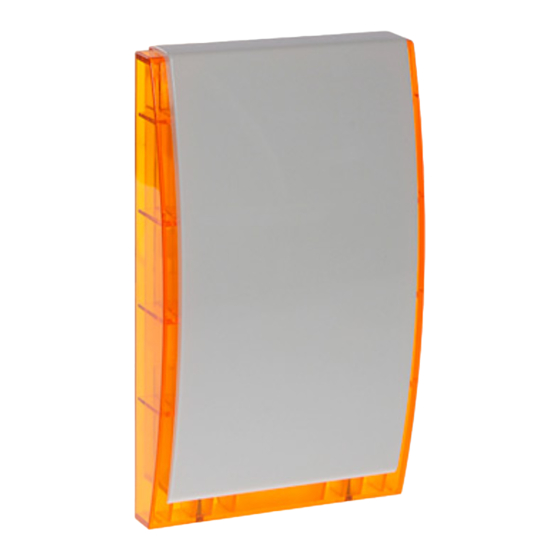

The SP-4002 outdoor siren is designed for application in burglary and panic alarm systems, as well
as in fire alarm systems. The signaling function is performed in two ways: optically (by red lamp
blinking) and acoustically (with a modulated high-volume sound signal). The source of light is a
xenon flasher, while the sound signal is generated by means of a piezoelectric transducer. Design
of the siren housing and the inner galvanized sheet cover ensure a high degree of tamper
protection (against opening and/or pull-off from the mounting surface). Electronic circuit of the siren
is made in SMD technology and impregnated against adverse effect of weather conditions, which
ensures a high reliability of the equipment. As the outer shell of the SP-4002 is made of PC LEXAN
high-impact polycarbonate, it features a very high mechanical strength and guarantees esthetic
look of the equipment even after many years of service.
2. INSTALLATION
The SP-4002 siren should be mounted on flat surface, at a place as much inaccessible as possible
so that the risk of tampering is minimized. The siren must be attached to the surface by means of
screws and expansion plugs. In order to take off the cover, remove the two retaining screws and lift
it by an angle of approx. 60°. Be particularly careful when dismounting and remounting the inner
sheet metal cover.
NOTE: Make sure there is a suitable distance (minimum 2.5cm) between the upper edge of the
siren base and the ceiling or another element restricting the mounting position from the
above. Otherwise, replacement of the cover may be impossible.
cover locking screws
After installation of the siren, it is recommended that the mounting holes as well as the cable inlet
be sealed by means of silicone compound.
3. OPERATION OF THE SIREN
The SP-4002 siren can work in conjunction with any alarm signal source. The acoustic and optical
signaling circuits have separate control inputs. The signaling is triggered after a change of polarity
®
Anti-tamper
„S" element
SCREWED DOWN
TO THE SURFACE!
Do not overtighten so as
not to break the narrowings

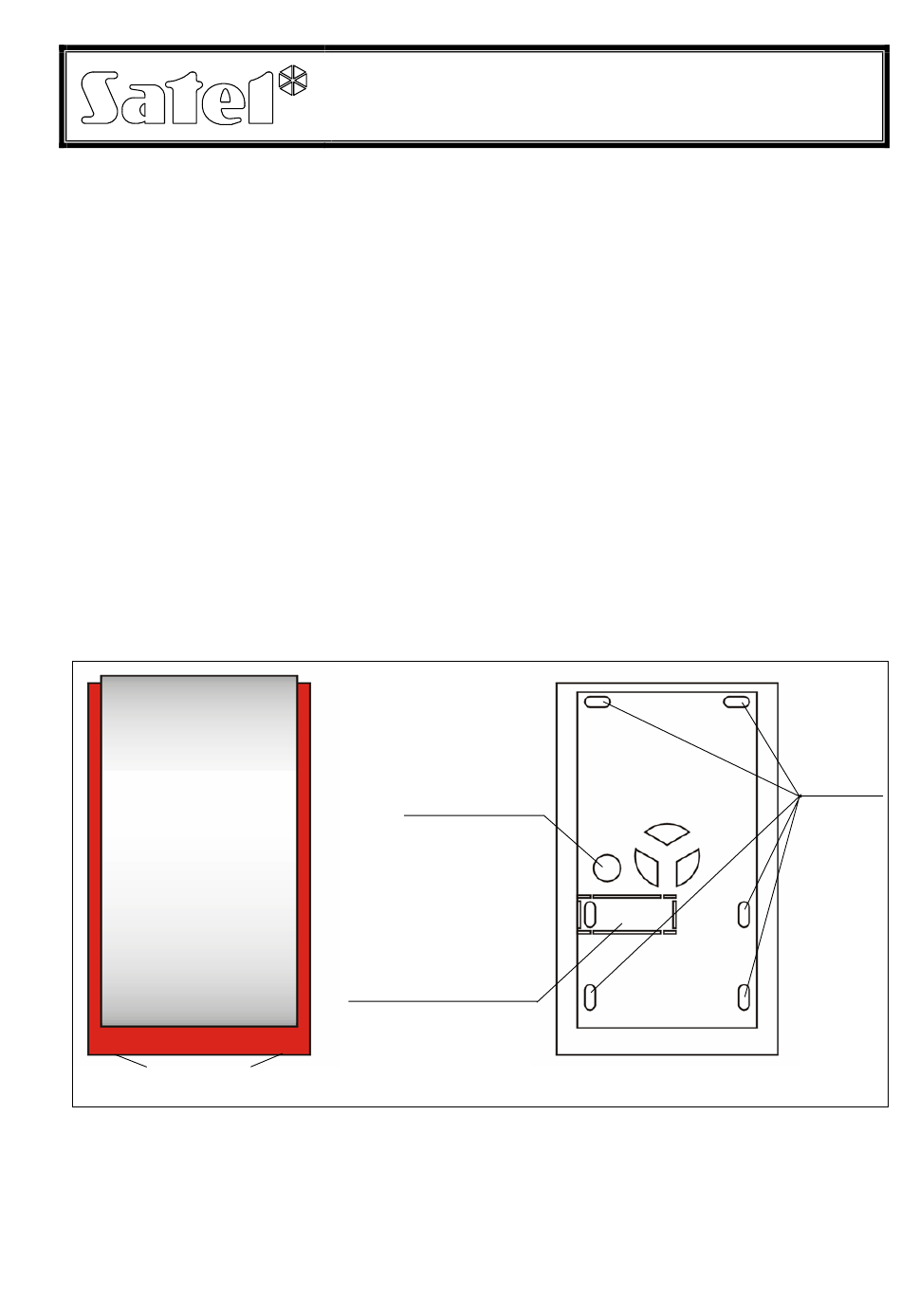

Figure 1. Housing of the siren
SP-4002
OUTDOOR SIREN
cable inlet
MUST BE
sp4002_en 08/08
mounting
holes
