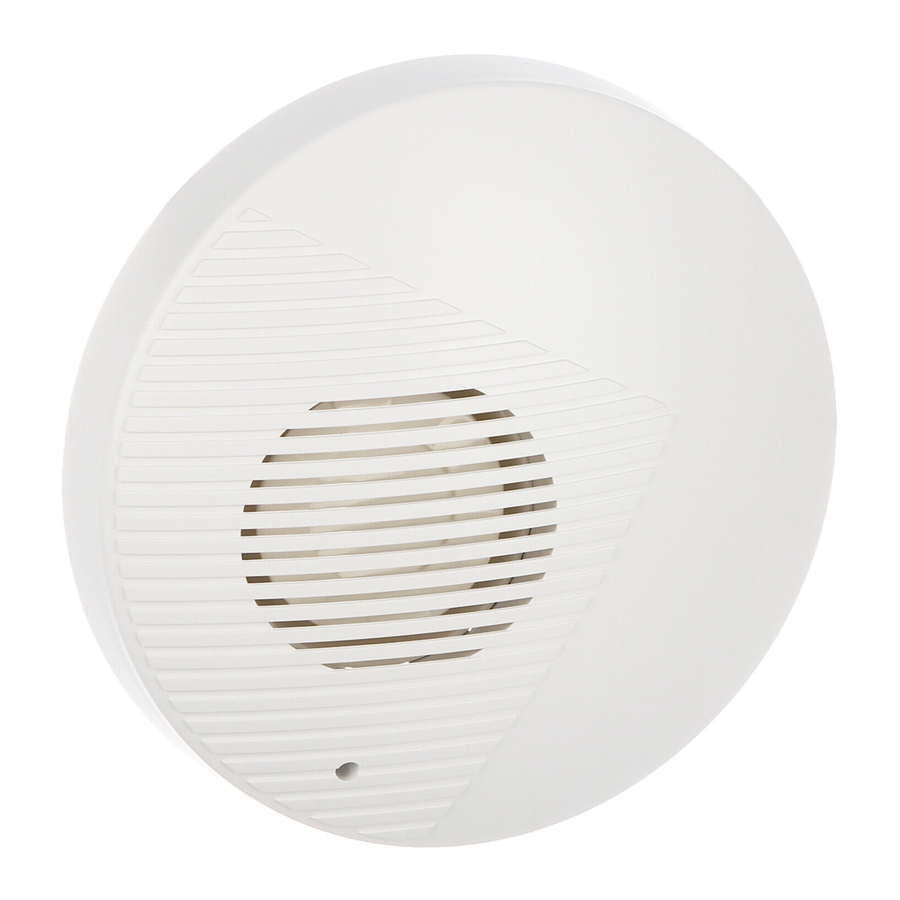

Satel SPW-100 - INDOOR SIREN Manual
FEATURES
- Acoustic signaling by means of piezoelectric transducer.
- Three selectable tones for acoustic signaling.
- Tamper protection in 2 ways – cover removing and tearing housing from the wall.
INSTALLATION HINTS
- The siren may only be used indoor.
- The siren should be installed on a flat surface by means of screws and expansion bolts.
- Cut off the power before you make the connections.
FIGURE 1. Removing the cover.
SPECIFICATIONS
| Supply voltage | 12 V DC ±15% |
| Maximum current consumption | 320 mA |
| Sound pressure level (at 1 m distance) | up to 120 dB |
| Environmental class according to EN50130-5 | II |
| Operating temperature range | -10°C...+55°C |
| Maximum humidity | 93 ±3% |
| Dimensions | 130 x 130 x 40 mm |
| Weight | 170 g |
FIGURE 2. The siren inside with cover removed.
- cable entry holes.
- mounting holes.
- electronics board (Fig. 3).
- piezoelectric transducer.
FIGURE 3. Siren electronics board.
- terminals:
+SA- - a coustic signaling control – +12 V DC voltage supplied to the terminals will trigger signaling. To control the signaling, the control panel high-current output can be used.
TMP - tamper circuit – opening any tamper contact means opening the circuit (NC circuit). The terminals can be connected to the control panel zone preprogrammed as a tamper one.
- tamper contact, which opens when the cover is removed.
- pins for tone selection.
- description of setting jumpers for respective acoustic signals.
FIGURE 4. Selection of acoustic signal type.
- tone 1;
- tone 2;
- tone 3;
(
- pins shorted;
- pins open).
FIGURE 5. Siren dimensions.
The declaration of conformity may be consulted at www.satel.eu/ce
