SOW-300
INDOOR LED BEACON
sow300_en 11/09

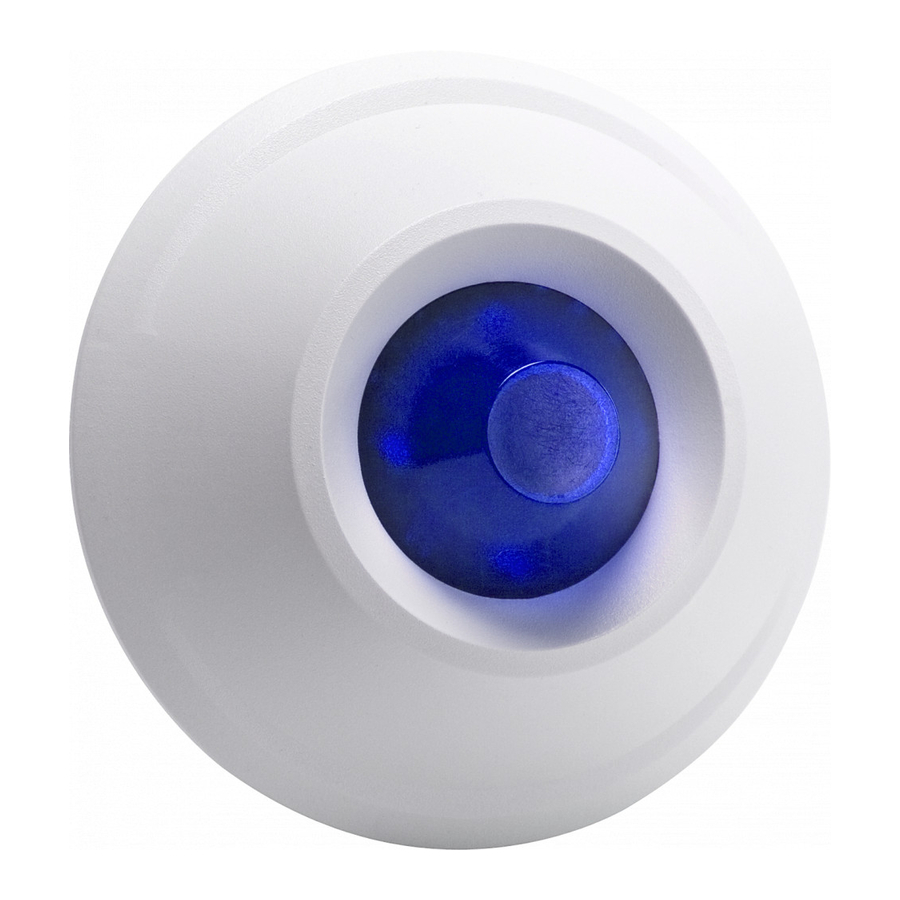

The SOW-300 indoor LED beacon is offered in two versions differing by the color of optical
signal (red in SOW-300 R, blue in SOW-300 BL).
1. F
EATURES
• Optical signaling by means of super bright LEDs.
• 3 selectable signaling modes.
• Tamper protection against opening the housing.
Fig. 1. View of the indoor LED beacon.
Explanations for Figure 1:
1 - housing base.
2 - screw for fixing the electronics board to the cover.
3 - electronics board.
4 - transparent element of the cover for light diffusion.
5 - cover.
6 - LEDs.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SOW-300 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Satel SOW-300 Series

  • Page 1 ® SOW-300 INDOOR LED BEACON sow300_en 11/09 The SOW-300 indoor LED beacon is offered in two versions differing by the color of optical signal (red in SOW-300 R, blue in SOW-300 BL). 1. F EATURES • Optical signaling by means of super bright LEDs. •...
  • Page 2 SOW-300 SATEL 2. D ESCRIPTION OF ELECTRONICS BOARD JP1 SETTINGS SLOW FLASHING FAST FLASHING DOUBLE FLASH - LONG BREAK TMP TMP COM +12V Fig. 2. View of the electronics board. Explanations for Figure 2: 1 - way of placing jumpers for suitable signaling mode:...
  • Page 3 SATEL SOW-300 Fig. 3. Removing the cover. SOW-300 INTEGRA 32 TMP TMP COM 12V Fig. 4. Way of connecting the LED beacon to the alarm control panel, when signaling is to be triggered by applying +12 V voltage (activating the OUT1 normal polarity high-current output).
  • Page 4 Operating temperature range..................-10...+55 °C Dimensions ......................ø 97 x 37 mm Weight..........................48 g The latest EC declaration of conformity and product approval certificates are available for downloading on website www.satel.eu SATEL sp. z o.o. ul. Schuberta 79 80-172 Gdańsk POLAND tel.
