The SP-4002 optical-acoustic outdoor siren comes in three versions differing by the color of optical
signaling (red in SP-4002 R, blue in SP-4002 BL and orange in SP-4002 O).
1. Features
•
Acoustic signaling by means of piezoelectric transducer.
•
Optical signaling by means of LEDs.
•
Battery as backup power supply.
•
Four selectable tones for acoustic signaling.
•
Weatherproofed electronic circuit.
•
Tamper protection in 2 ways – cover opening or tearing housing from the wall.
•
Inner cover of galvanized metal sheet.
•
Housing made of PC LEXAN high-impact polycarbonate, featuring a very high mechanical
strength.

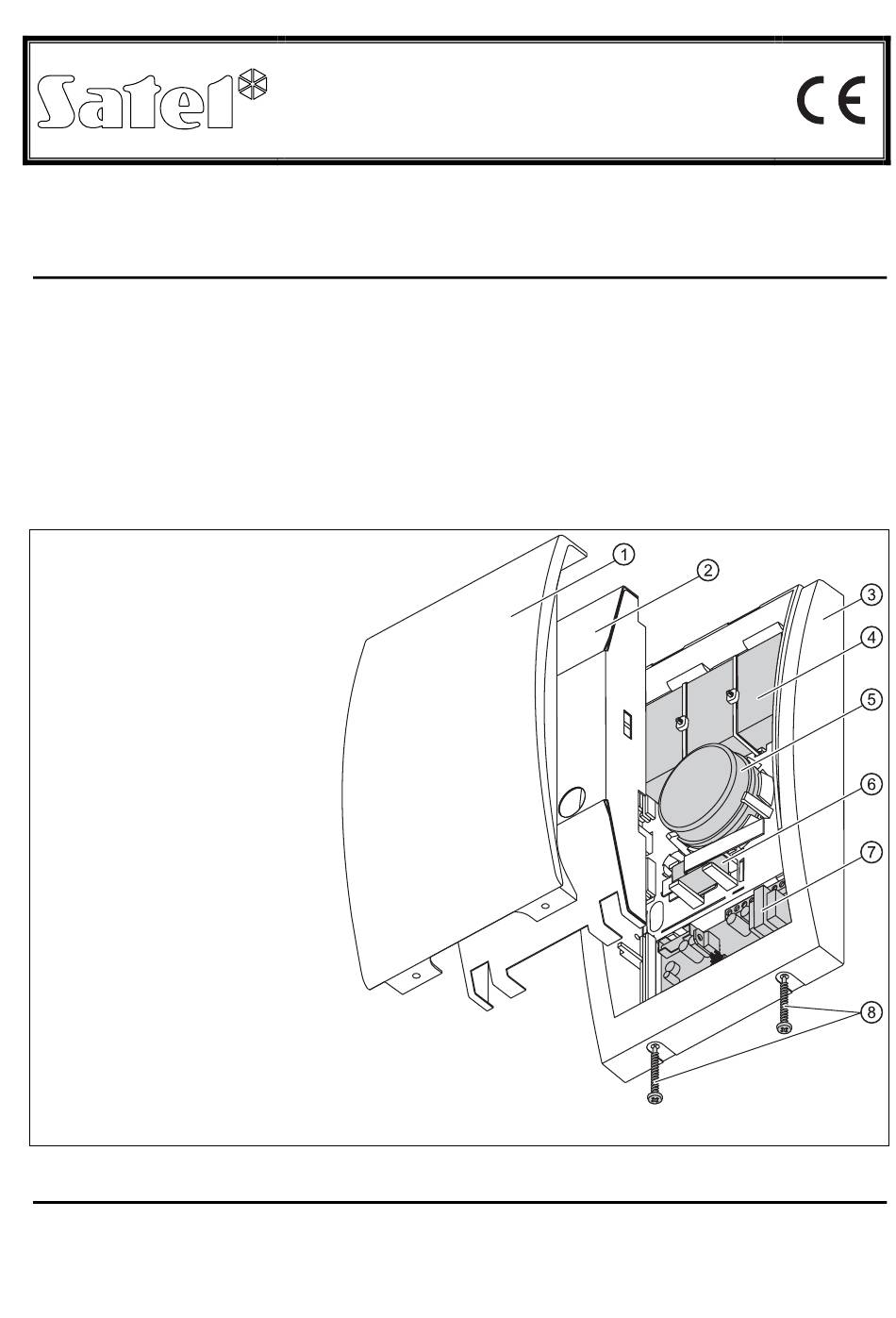

Explanations for Fig. 1:
1 - housing cover.
2 - inner cover of galvanized
sheet.
3 - housing base.
4 - battery.
5 - piezoelectric transducer.
6 - tamper contact (NC).
7 - electronics board.
8 - housing
cover
screws.
2. Functioning
The siren requires 12 V ±15% power supply. The signaling is generated by changing the STA input
status (acoustic signaling) or the STO input status (optical signaling). The way of triggering the alarm
is set by means of the PLA and PLO pins. The alarm can only be triggered 20 seconds after power-
up, provided that during that time the signaling control input status was stable and consistent with that
OPTICAL-ACOUSTIC
OUTDOOR SIREN
®
locking
SP-4002
Fig. 1. View of the siren.
sp4002_en 12/09
Advertisement
Table of Contents
Related Manuals for Satel SP-4002
Summary of Contents for Satel SP-4002
- Page 1 OUTDOOR SIREN ® SP-4002 sp4002_en 12/09 The SP-4002 optical-acoustic outdoor siren comes in three versions differing by the color of optical signaling (red in SP-4002 R, blue in SP-4002 BL and orange in SP-4002 O). 1. Features • Acoustic signaling by means of piezoelectric transducer.
- Page 2 SP-4002 SATEL set by means of pins for inactive status. The 20-second delay prevents the alarm from being accidentally triggered during installation work. The maximum duration of acoustic signaling is set by means of the TM0 and TM1 pins (the fact that the acoustic signaling control output of the control panel will be active longer is of no significance).
- Page 3 SATEL SP-4002 7 - LED indicating external power supply (a short flash approximately every 3 seconds). 8 - LEDs for visual indication of the alarm. 4. Configuring siren - pins shorted; - pins open Type of acoustic signaling Two sound frequencies (1450 Hz/2000 Hz) alternating during 1 second Sound with a smoothly rising and falling frequency (1450 Hz –...
-
Page 4: Specifications
SP-4002 SATEL Fig. 3. Way of connecting the SP-4002 siren to the alarm control panel. The OUT2 high-current output is programmed as supply. The OUT7 & OUT8 low-current outputs control the signaling (OUT7 triggers acoustic signaling, OUT8 – optical). The Z4 zone is programmed as tamper, NC type. The R resistor value is 2.2 kΩ.
