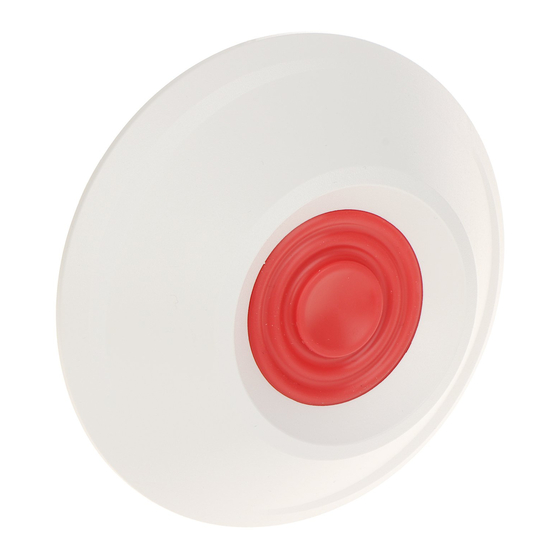

Satel Micra MPB-300 Manual

Wireless panic button
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MPB-300
Wireless panic button
EN
Firmware version 1.00
mpb-300_en 10/21
SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND
tel. +48 58 320 94 00
www.satel.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Micra MPB-300 and is the answer not in the manual?

Questions and answers

Related Manuals for Satel Micra MPB-300

Summary of Contents for Satel Micra MPB-300

  • Page 1 MPB-300 Wireless panic button Firmware version 1.00 mpb-300_en 10/21 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.eu...
  • Page 2 13 August 2005). The device meets the technical regulations of the Eurasian Customs Union. SATEL aims to continually improve the quality of its products, which may result in changes in their technical specifications and software. Current information about the changes being introduced is available on our website.

  • Page 3: Table Of Contents

    CONTENTS Features ........................... 2 Description ........................2 2.1 Button operates as a detector..................2 Radio transmissions ....................2 Alarms ........................2 Test mode ......................... 3 LED ........................... 3 Battery status control ....................3 2.2 Button operates as a keyfob ..................3 Radio transmissions ....................

  • Page 4: Features

    MPB-300 SATEL The MPB-300 panic button is used to trigger a panic alarm or call for help in emergency situations. It can also be used to control the operation of various devices (e.g. automation or access control system devices). The button is supported by: ...

  • Page 5: Test Mode

    SATEL MPB-300 Test mode For 20 minutes after battery is inserted or tamper switch is opened, the button operates in a special mode that allows you to test the button. The LED is enabled in the test mode. The LED will flash for about 5 seconds after the battery is inserted to indicate warm-up of the button.

  • Page 6: Electronics Board

    MPB-300 SATEL 3. Electronics board battery (CR14250). tamper switch activated by removal from mounting surface. button. LED. tamper switch activated by cover removal. fixing screw hole. 4. Installation There is a danger of battery explosion when using a different battery than recommended by the manufacturer, or handling the battery improperly.
  • Page 7 SATEL MPB-300 The button is designed for indoor installation. 1. Remove the button cover (Fig. 2). 2. If the button is to work in the MMD-300 detector mode, insert the battery (this operating mode is set by default). If the button is to operate in the MPT-350 keyfob mode, select this operating mode (see “Selecting the button operating mode”...
  • Page 8 MPB-300 SATEL 5. Place the button at its future mounting location. 6. Press the button. If the transmission is received, continue with the installation. If the transmission is not received, select a different mounting location and repeat the test. Sometimes, it is sufficient to shift the detector ten or twenty centimeters.

  • Page 9: Selecting The Button Operating Mode

    SATEL MPB-300 4.1 Selecting the button operating mode 1. Remove the button cover (Fig. 2). 2. Press and hold the tamper switch activated by cover removal. 3. Insert the battery and release the tamper switch. The LED will start flashing rapidly.
  • Page 10 MPB-300 SATEL Dimensions ......................ø97 x 29 mm Weight ..........................73 g...
