Satel SPL-2010 Manual

Optical-acoustic signaling device

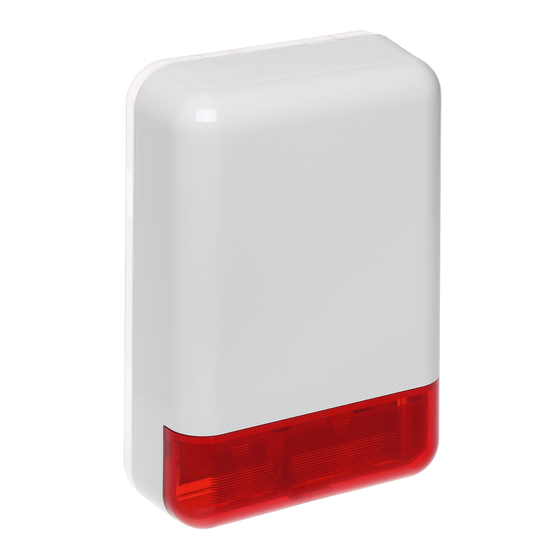

The SPL-2010 optical-acoustic signaling device (siren) is designed for application in the

burglary and assault signaling systems. The signaling function is performed in two ways:

visually (by blinking of indicator LEDs situated in the lower part of the enclosure) and

acoustically (by a modulated high-volume sound signal). As the light source, a set of LEDs is

used, whereas the sound signal is generated by means of a piezoelectric transducer. Design

of the signaling device housing as well as internal shield made of galvanised plate ensure

a high degree of tamper protection (against opening, tearing off from the base, as well as

against clogging of converter). The electronic circuit is made by the use of SMD technique

and impregnated against the adverse influence of weather conditions, which ensures a high

reliability of the device. As the SPL-2010 external housing is made of the PC LEXAN

high-impact polycarbonate, it is characterized by a very high mechanical strength, and a nice

appearance of the device is guaranteed even after many years of service.

1. Installing

The SPL-2010 siren should be mounted on flat vertical basis in inaccessible place in order to

minimize tampering possibility. It must be attached to the surface by means of screws and

expansion plugs (the screws and expansion plugs are included in the device delivery set).

Note: Make sure to leave a distance of about 4.5cm between the upper edge of the

signaling device base and the ceiling or another element which limits the mounting

position from above. With no gap, mounting of the signaling device external housing

may be difficult.

OPTICAL-ACOUSTIC

SIGNALING DEVICE

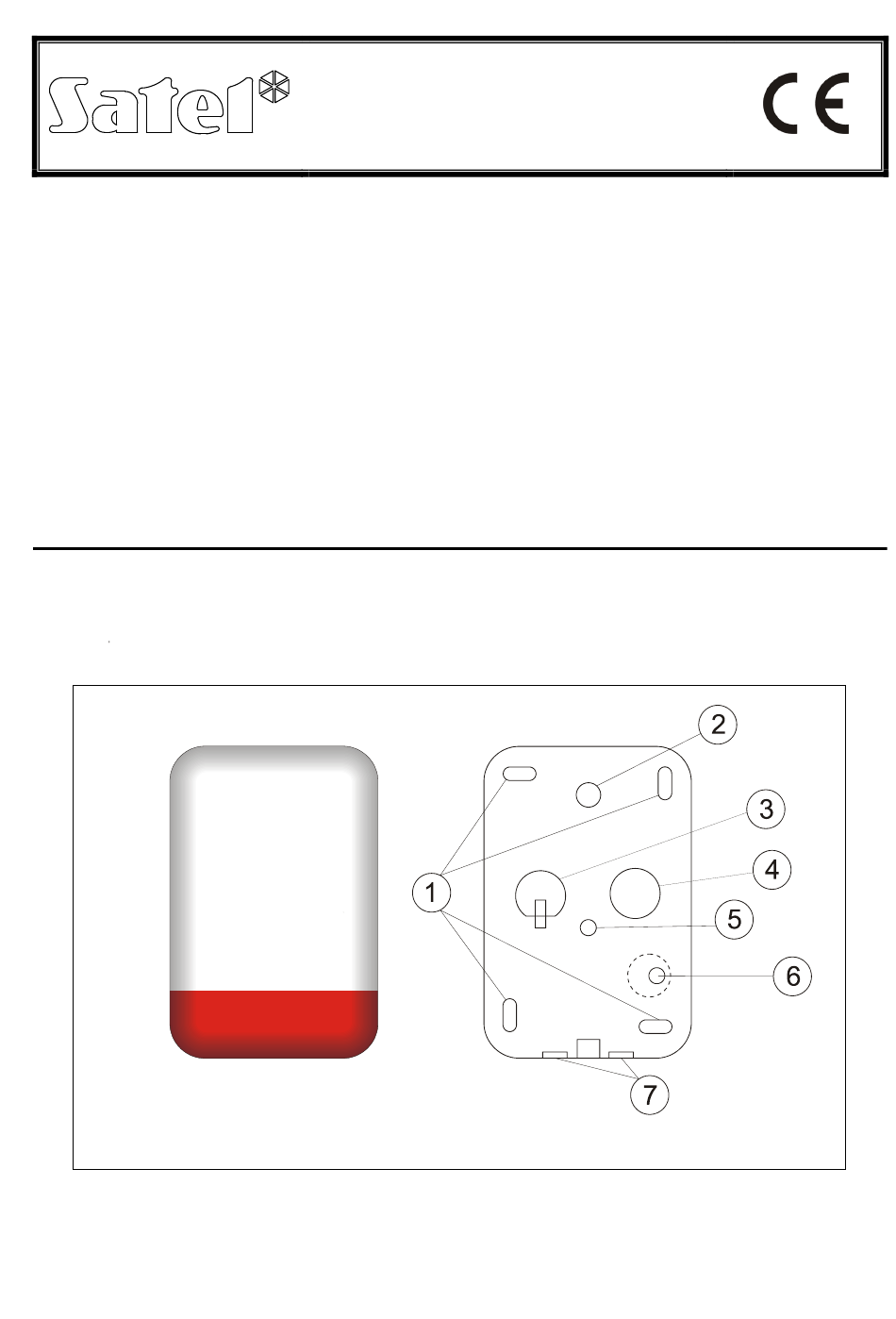

Fig. 1. View of the SPL-2010 siren enclosure

SPL-2010

spl2010_en 09/08

Table of Contents

Do you have a question about the SPL-2010 and is the answer not in the manual?

Page 1 1. Installing The SPL-2010 siren should be mounted on flat vertical basis in inaccessible place in order to minimize tampering possibility. It must be attached to the surface by means of screws and expansion plugs (the screws and expansion plugs are included in the device delivery set).
Page 2 2. Connections The SPL-2010 siren can be used with any source of alarm signal which in emergency situation generates 12V direct voltage on its alarm output(s). Connecting +12 V power supply to the "+ SA –" terminals will trigger the acoustic signaling, and to the "+ SO –" terminals - the optical signaling in the SPL-2010 device.
Page 3 OUT2 COM Z1 SPL-2010 Fig. 3. Connecting the SPL-2010 siren to high-current outputs of INTEGRA 32 control panel. The OUT1 output will release optical signaling, and the OUT2 output – acoustic (high-current outputs with normal polarization - activated when +12 V voltage is supplied). The Z1 zone is programmed as 24 h tamper.
Page 4 OUT8 SPL-2010 Fig. 4. Connecting the SPL-2010 siren to low-current outputs of INTEGRA 32 control panel. The OUT2 output has been programmed as power output. The OUT3 output controls the P1 relay, which releases acoustic signaling, and the OUT4 output controls the P2 relay, which releases optical signaling (low-current outputs with normal polarization - activated by shorting the terminal directly to the common ground 0 V).
