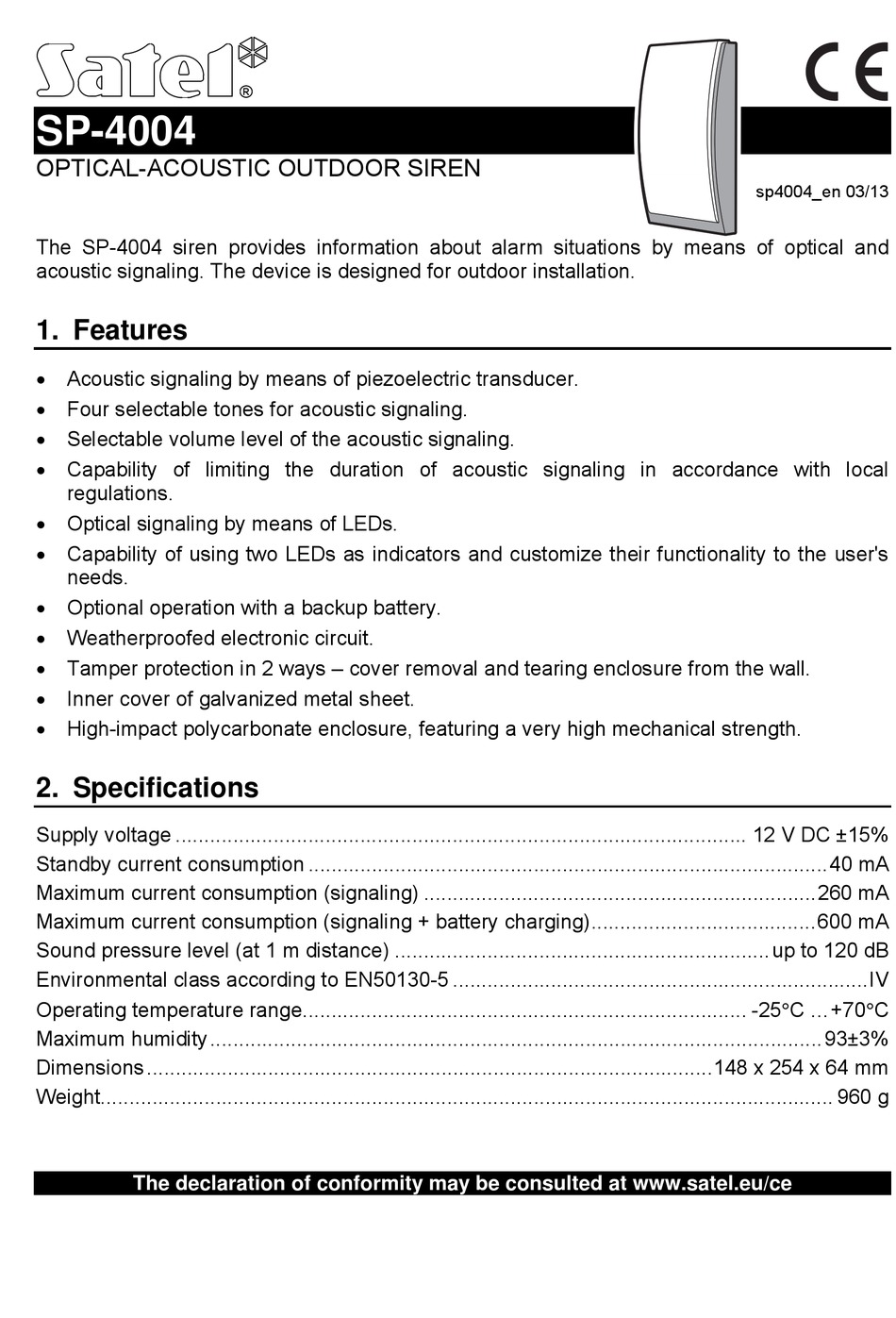

SP-4004

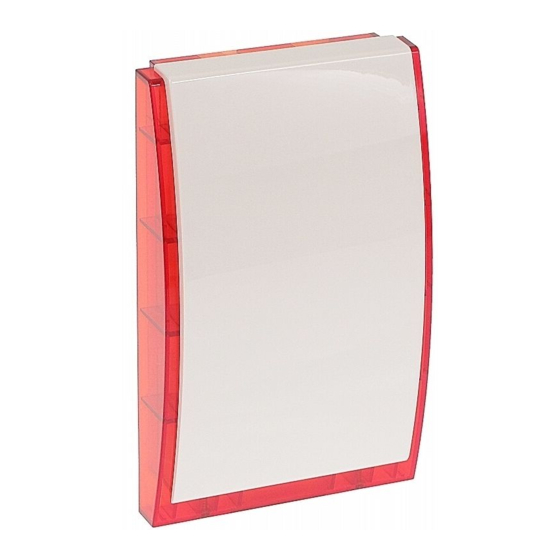

OPTICAL-ACOUSTIC OUTDOOR SIREN
The SP-4004 siren provides information about alarm situations by means of optical and
acoustic signaling. The device is designed for outdoor installation.

1. Features

 Acoustic signaling by means of piezoelectric transducer.
 Four selectable tones for acoustic signaling.
 Selectable volume level of the acoustic signaling.
 Capability of limiting the duration of acoustic signaling in accordance with local
regulations.
 Optical signaling by means of LEDs.
 Capability of using two LEDs as indicators and customize their functionality to the user's
needs.
 Optional operation with a backup battery.
 Weatherproofed electronic circuit.
 Tamper protection in 2 ways – cover removal and tearing enclosure from the wall.
 Inner cover of galvanized metal sheet.
 High-impact polycarbonate enclosure, featuring a very high mechanical strength.

2. Specifications

Supply voltage ................................................................................................... 12 V DC ±15%
Standby current consumption ..........................................................................................40 mA
Maximum current consumption (signaling) ....................................................................260 mA
Maximum current consumption (signaling + battery charging).......................................600 mA
Sound pressure level (at 1 m distance) .................................................................up to 120 dB
Environmental class according to EN50130-5 ........................................................................IV
Operating temperature range............................................................................. -25C ...+70C
Maximum humidity .......................................................................................................... 93±3%
Dimensions ..................................................................................................148 x 254 x 64 mm
Weight............................................................................................................................... 960 g
The declaration of conformity may be consulted at www.satel.eu/ce
®
sp4004_en 03/13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP-4004 and is the answer not in the manual?

Questions and answers

Related Manuals for Satel SP-4004

Summary of Contents for Satel SP-4004

  • Page 1 ® SP-4004 OPTICAL-ACOUSTIC OUTDOOR SIREN sp4004_en 03/13 The SP-4004 siren provides information about alarm situations by means of optical and acoustic signaling. The device is designed for outdoor installation. 1. Features  Acoustic signaling by means of piezoelectric transducer.  Four selectable tones for acoustic signaling.
  • Page 2 Duration of the acoustic signaling is limited (LIMIT SIGN. or TIME 0 and TIME 1 pins). Note: For the SATEL alarm control panels, the OC type low current outputs can be used to trigger the signaling (as well as to control the LED input). Reverse polarity must be...
  • Page 3 SATEL SP-4004 Delay of the triggering the alarm signal The signaling can be triggered, if +12 V DC or 0 V voltage has been applied to the STA input for 30 seconds since powering up the siren. Such a delay will prevent the signaling from being accidentally triggered during installation work.
  • Page 4 SP-4004 SATEL Siren configuration pins - jumper on; - jumper off LED INT/EXT Allow you to set how the LEDs used as indicators are to be controlled. The LEDs used as indicators show that power supply is available (inner control).
  • Page 5 SATEL SP-4004 Sound with smoothly rising and falling frequency (1450 Hz – 2000 Hz – 1450 Hz) within 1 second. Sound with falling frequency (from 2000 Hz to 1450 Hz) within 1 second. POLARITY A Allow you to set polarity for the STA input.
  • Page 6 SP-4004 SATEL 4. Installation and start-up Power down the control panel before connecting the siren to it. The siren must be installed on the wall, high above the floor, at a hard to access location, so as to minimize the risk of tampering. Maintain an adequate distance (minimum 2.5 cm) between the top edge of the siren enclosure and the ceiling or another element situated above the siren.
  • Page 7 SATEL SP-4004 13. Install the inner metal cover. 14. Replace the siren cover, close the cover and then lock it with the screws. 15. Power on the control panel. When the two LEDs stop blinking rapidly, you can test the siren for correct functioning.
  • Page 8 SATEL sp. z o.o. • ul. Schuberta 79 • 80-172 Gdańsk • POLAND tel. + 48 58 320 94 00 info@satel.pl www.satel.eu...
