Satel SP-4003 R Manual

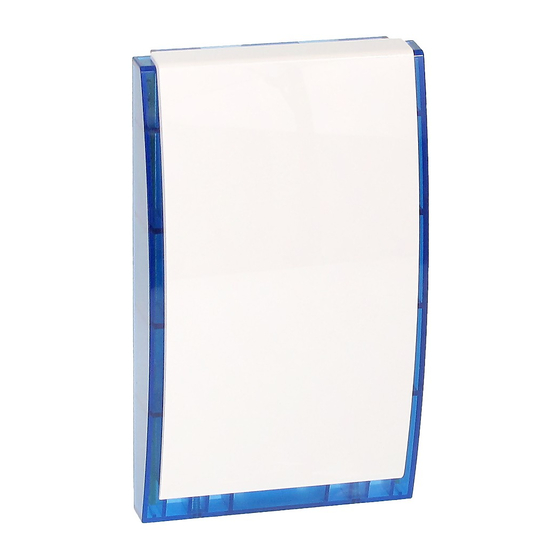

The SP-4003 optical-acoustic outdoor siren comes in three versions differing by the color of
optical signaling (red in SP-4003 R, blue in SP-4003 BL and orange in SP-4003 O).

1. Features

• Acoustic signaling by means of piezoelectric transducer.
• Optical signaling by means of two sets of LEDs.
• Three selectable tones for acoustic signaling.
• Weatherproofed electronic circuit.
• Tamper protection in 2 ways – cover opening or tearing housing from the wall.
• Inner cover of galvanized metal sheet.
• Housing made of PC LEXAN high-impact polycarbonate, featuring a very high mechanical
strength.

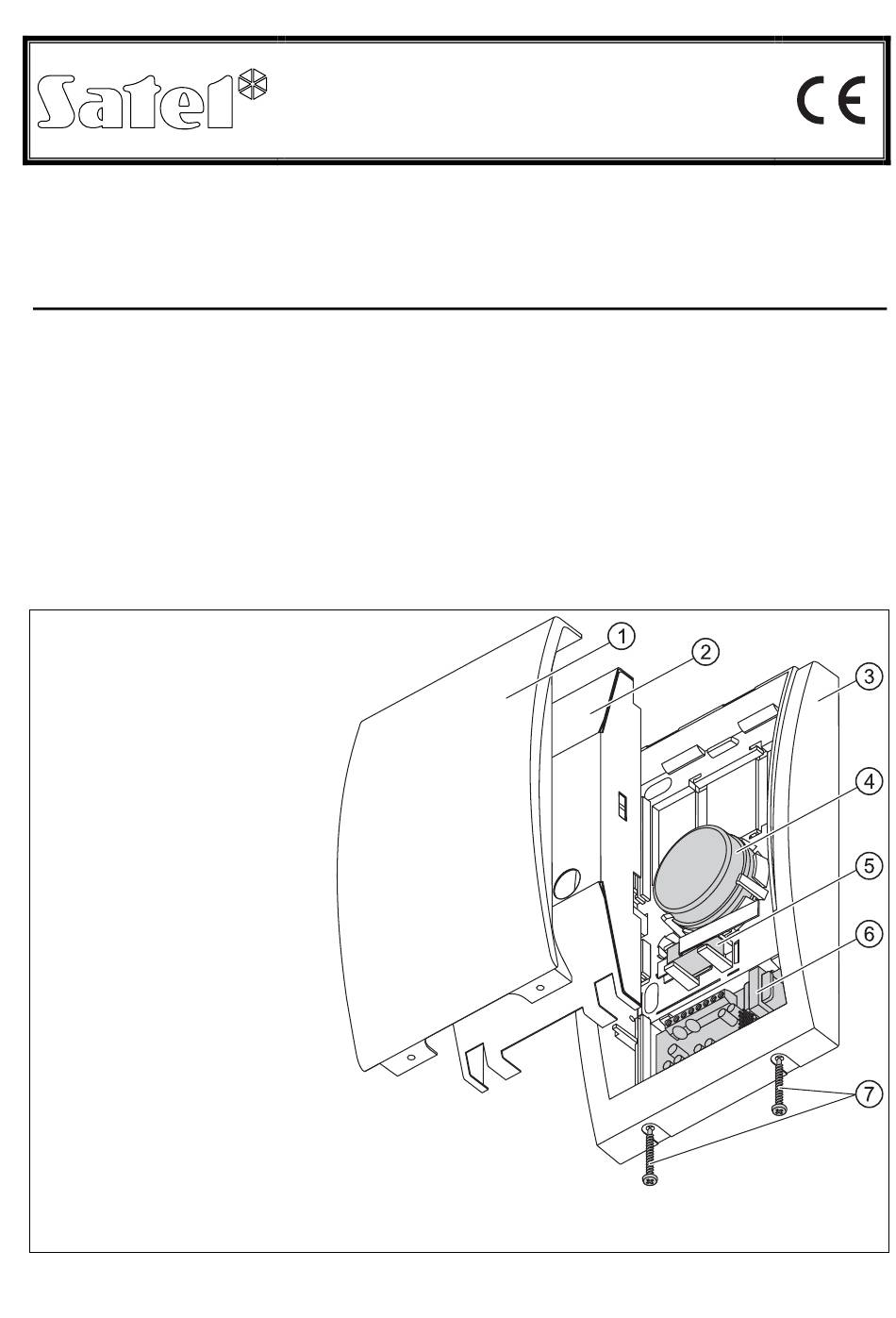

Explanations for Figure:
1 - housing cover.
2 - inner cover of galvanized
metal sheet.
3 - housing base.
4 - piezoelectric transducer.
5 - tamper contact (NC).
6 - electronics board.
7 - housing cover
screws.
OPTICAL-ACOUSTIC
OUTDOOR SIREN
®
locking
SP-4003
Fig. 1. View of the siren.
sp4003_en 05/10
