- Page 1 Optical-acoustic siren SPL-2010 spl2010_en 07/23 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.pl...
- Page 2 Changes, modifications or repairs not authorized by the manufacturer shall void your rights under the warranty. SATEL aims to continually improve the quality of its products, which may result in changes in their technical specifications and software. Current information about the changes being introduced is available on our website.
- Page 3 CONTENTS 1. Features ..........................2 2. Description ........................2 Terminals .......................... 3 Pins for selecting acoustic signal ..................3 Enclosure base ......................... 3 3. Installation and start-up ..................... 4 4. Specifications ........................5...

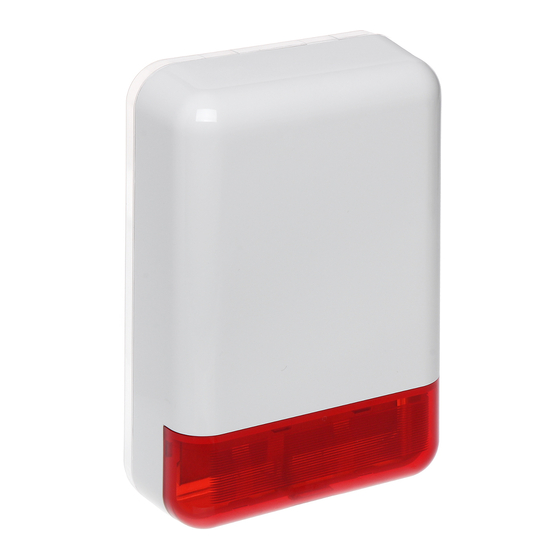

- Page 4 SPL-2010 SATEL The SPL-2010 siren provides information about alarm situations by means of optical and acoustic signaling. It is designed for outdoor installation. This manual applies to the siren with electronics version 1.7. 1. Features • Acoustic signaling by means of sounder.
- Page 5 SATEL SPL-2010 Terminals +SO- - input to trigger the optical signaling. The signaling will be triggered after +12 VDC voltage is applied to terminal “+” and 0 V voltage (common ground) is applied to terminal “-”. +SA- - input to trigger the acoustic signaling. The signaling will be triggered after +12 VDC voltage is applied to terminal “+”...
- Page 6 SPL-2010 SATEL electronics board. tamper element with mounting hole. water drain holes (do not plug). 3. Installation and start-up Power down the control panel before connecting the siren to the control panel. The siren must be installed on the wall, high above the floor, at a hard to access location, so as to minimize the risk of tampering.
- Page 7 SATEL SPL-2010 After the siren is mounted, it is recommended to seal the mounting holes and cable entry hole with silicone paste. 4. Specifications Supply voltage ....................12 VDC ±15% Maximum current consumption: optical signaling ......................35 mA acoustic signaling ...................... 250 mA optical and acoustic signaling ..................
- Page 8 SPL-2010 SATEL Operating temperature range ................-35°C...+55°C Maximum humidity ......................93±3% Dimensions ....................298 x 197 x 90 mm Weight ..........................1,22 kg...
