700-701-100-02

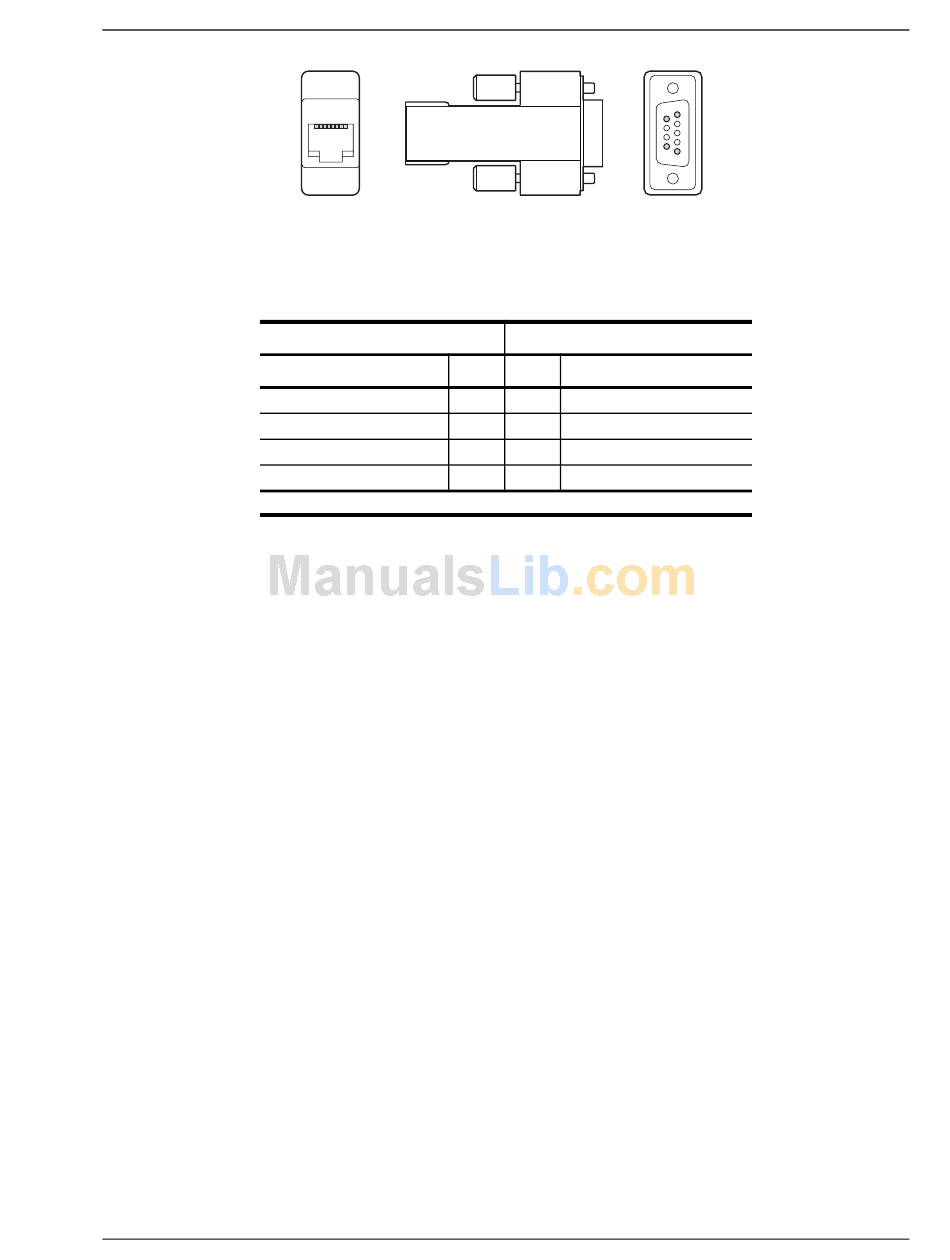

Figure 47. ECA-802 DB9M to RJ-45 Connector Adapter, Part Number 150-1472-01
Table 38. ECA-802 DB9M to RJ-45 Connector Adapter Pinouts
(a) Pins 1, 6, 4, and 5 not used on single-pair HDSL cards.
UTU-701 and ETU-751 List 1
8
1
DB9M Connector
Signal Pin
HDSL Loop 1 (Ring)
HDSL Loop 1 (Tip)
HDSL Loop 2 (Ring)
HDSL Loop 2 (Tip)
August 9, 2002
6
9
RJ-45 Connector
(a) (a)
Pin Signal
4 1 HDSL Loop 1 (Ring)
9 2 HDSL Loop 1 (Tip)
1 4 HDSL Loop 2 (Ring)
6 5 HDSL Loop 2 (Tip)
Reference Information
1
5
