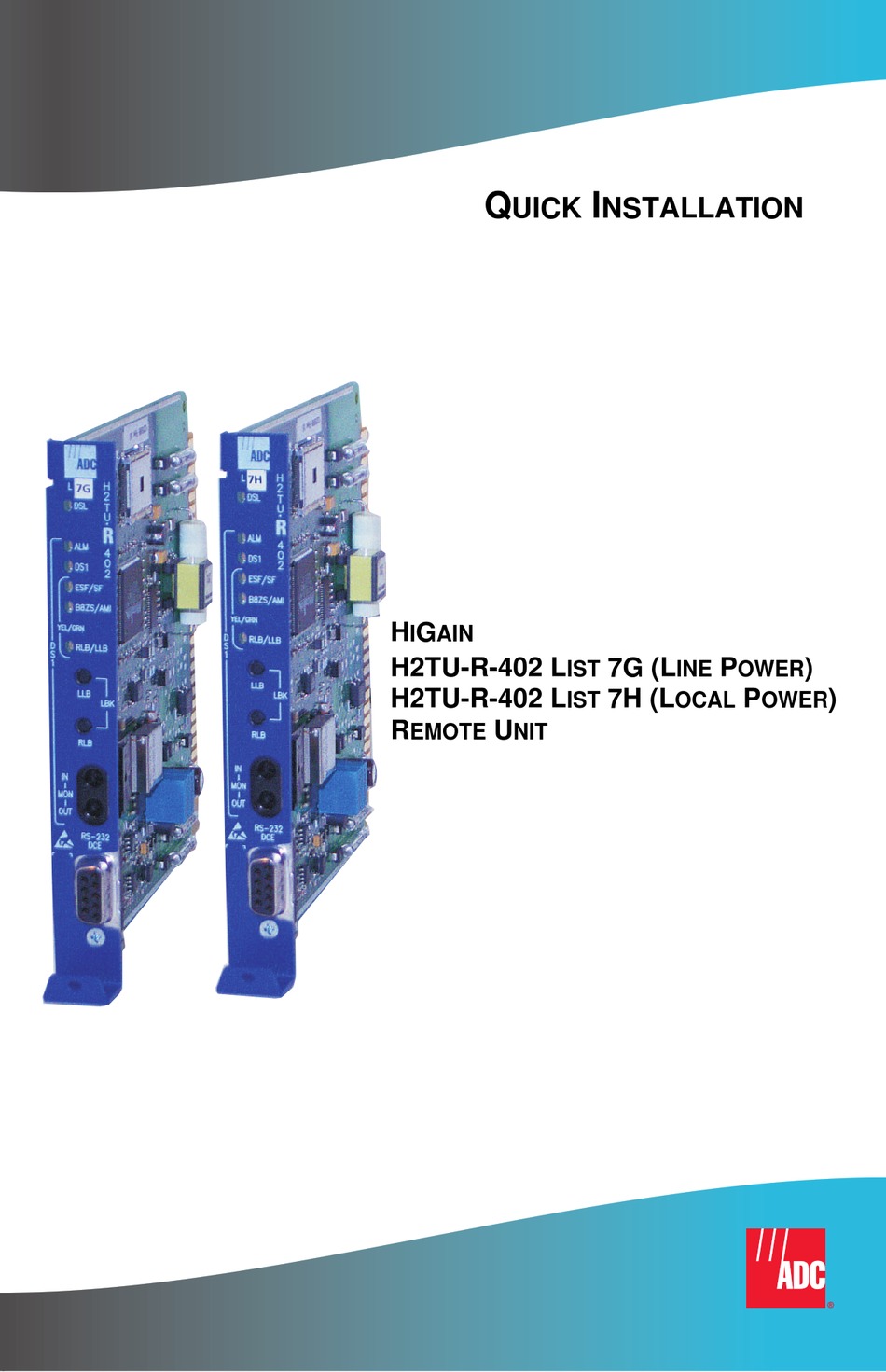

- Page 1 UICK NSTALLATION H2TU-R-402 L 7G (L OWER H2TU-R-402 L 7H (L OCAL OWER EMOTE...
-
Page 2: Specifications
H2TU-R-402 L 7G/L The H2TU-R-402 List 7G/List 7H (H2TU-R) functions as the remote end of a ® repeaterless T1 transmission system when connected to a HiGain , Wideband System ® 3190, or Soneplex HDSL2 line unit (H2TU-C). The H2TU-R-402 List 7G is line powered and the H2TU-R-402 List 7H is locally powered. -
Page 3: Installation
NSTALLATION Remote enclosure H2TU-R-402 H0260-A Wear an antistatic wrist strap when installing the H2TU-R. Avoid touching components on the circuit board. Align the H2TU-R with the enclosure slot guides and slide the unit in until it touches the backplane card-edge connector. Place your thumbs on the H2TU-R front panel and push the unit into the card-edge connector. - Page 4 H2TU-C. Once logged on, you can view system settings and inventory, initiate loopbacks, monitor performance, and configure the circuit. Monitor Performance Event Log Config Inventory Report Rlogon Help +------------------------------------------------+ ADC DSL Systems, Inc. HiGain HDSL2 Voice: 800.366.3891 ext 73223 714.730.2400 +------------------------------------------------+ ID: xxxx--xxxx--xxxx--xxxx 01/24/2003 06:38:12 H2TU-C System: OK...
-
Page 5: Loopback Commands
Downloading status and performance monitoring data to file. For more information about the HDSL2 line unit maintenance screens, refer to the H2TU-C line unit user manual. Copies of ADC line unit user manuals can be downloaded from the ADC website at www.adc.com. - Page 6 Card-edge connector List number Indicates the list number of the H2TU-R-402. DSL Status LED DS1 IN ALM LED DS1 LED Ring Do not use Framing LED ESF/SF Line code LED B8ZS/AMI YEL/GRN Do not use Loopback control pushbuttons RLB/LLB Loopback LED Press the pushbutton for 5 seconds to activate a dual loopback at the network (RLB) or at the customer (LLB).
- Page 7 Service for details. Modifications Any changes or modifications made to this device that are not expressly approved by ADC DSL Systems, Inc. voids the user's warranty. All wiring external to the products should follow the provisions of the current edition of the National Electrical Code.
