Table 21. Fields Displayed in Config Alarms HDSL Span 1 Menu
Field
Margin (MAR)
Margin Threshold
Errored Seconds (ES)
24 HR ES Threshold
Loss of Sync Word (LOSW)
Power Feed Open
Power Feed Short
S
F
ET TO
ACTORY
Set to Factory Dflts is the screen from which all operating options can be reset to the ADC factory defaults.
1
Type
F
at the Config drop-down menu to display the Set to Factory Dflts screen
2
Press
ENTER
to reset value to factory defaults. A confirmation message appears at the bottom of the display:
SETTING FACTORY DEFAULTS ... SERVICE *WILL* BE INTERRUPTED! ARE YOU SURE(Y/N)?
44
Description
Selects whether the alarm is disabled (DIS), or enabled and reported as a Minor (MIN) or Major
(MAJ) Alarm when the margin falls below the threshold. This indicates a potential degradation of
line quality. If an alarm is configured as a protection switch (PSW), it will behave as a Major (MAJ)
Alarm, and cause protection switching to engage.
Selects the margin alarm threshold (from 0 dB to 15 dB) for all four margin measurements of the
span.
Selects whether the alarm is disabled (DIS), or enabled and reported as a Minor (MIN) or Major
(MAJ) Alarm when 24-hour ES count exceeds the threshold.
Selects the errored seconds threshold (0 to 255) for all four errored seconds measurements of the
span measured over a 24-hour period.
Selects whether the alarm is disabled (DIS), or enabled and reported as a Minor (MIN) or Major
(MAJ) Alarm when the LOSW condition (HDSL loop down) occurs.
Not supported. These units do not supply power to other units.
Not supported. These units do not supply power to other units.
D
EFAULTS

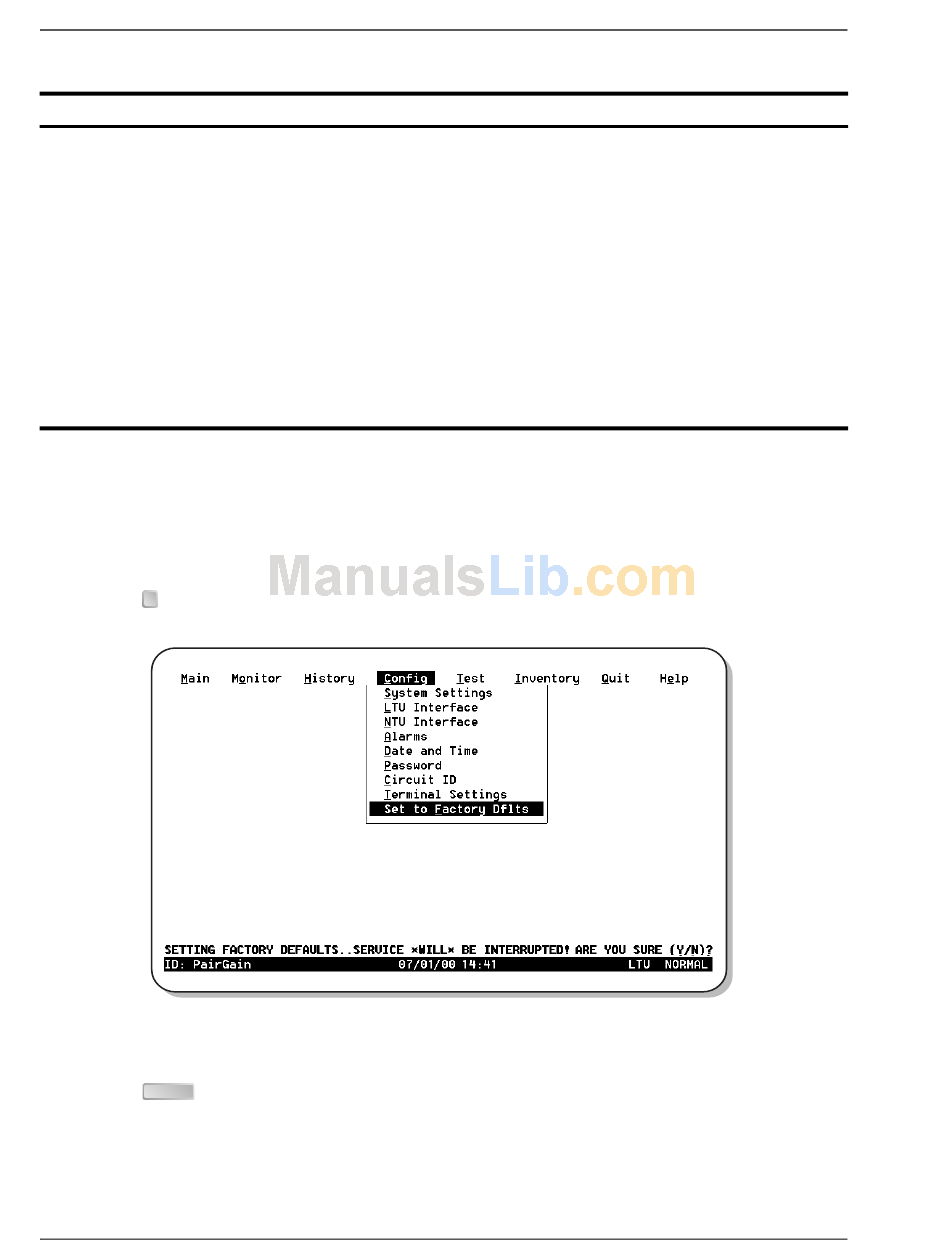

Figure 28. Set to Factory Defaults Screen
August 9, 2002
700-701-100-02
(Figure
28).
UTU-701 and ETU-751 List 1
