Electrical Connections - Tormax Automatic Smart Drive 1101 Manual

Mains Connection
Emergency-off Switch
Activator and Safety
Facilities
16
Installation On Site SWINGDOOR Smart Drive 1101 T-1132 e
6

Electrical Connections

Observe wiring diagram T-1135 e for lintel mounting and T-1154 e for door-leaf mounting!
A system switch must be mounted on site.
Before beginning the work described here check that the mains supply is switched off.
!
If possible, route the mains connection along the side of the power supply to the operator.
The connecting cables must be of the type "PVC cable H05VV-F" or "rubber hose cable
H05RR-F".
Round the edges and remove burrs from all conduits used for the mains connection.

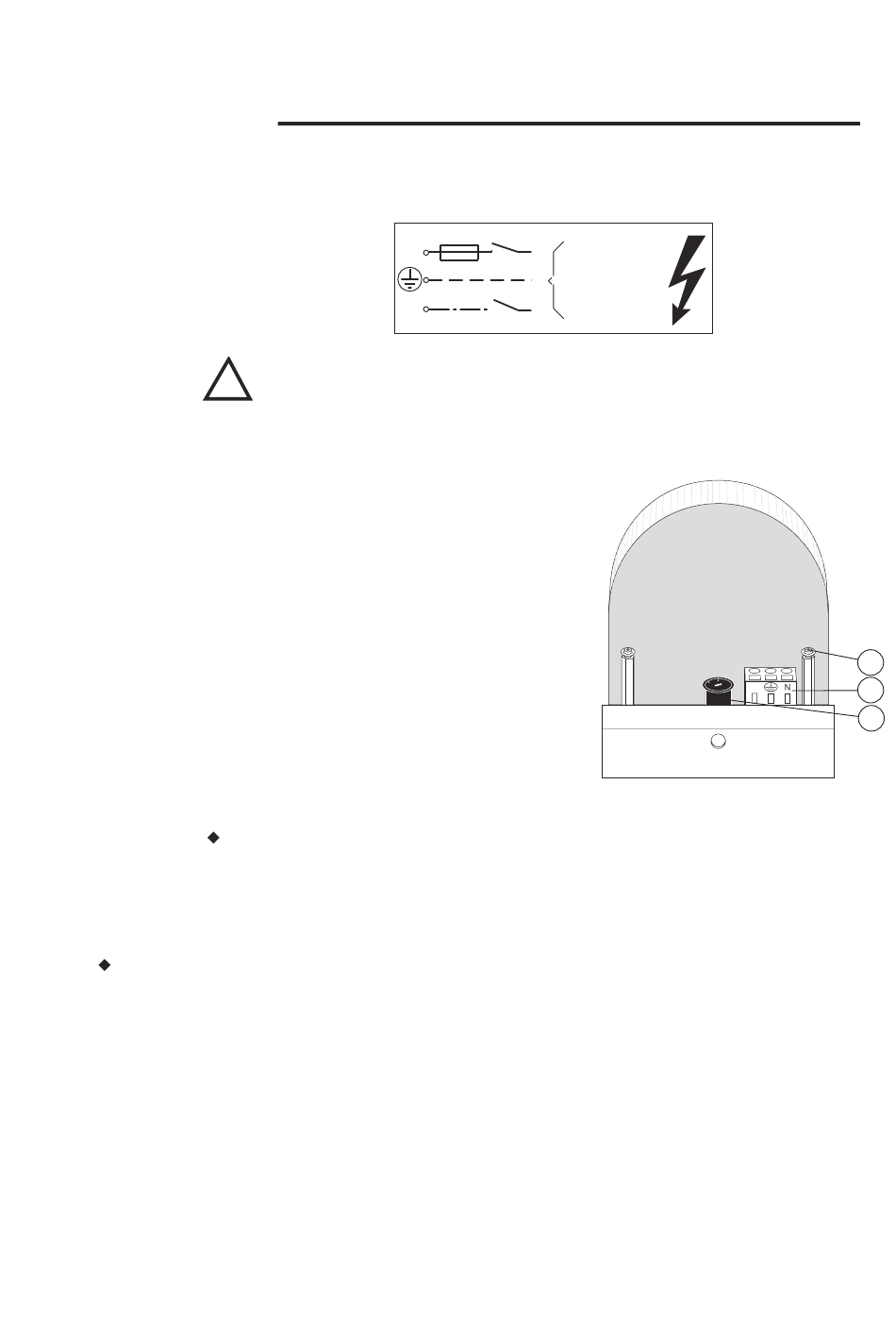

• Remove mains supply cover (1).
• Connect the mains cable to terminal (11) in
accordance with figure.
• Route the mains cable either through the
prepared holes of the side cover or through
the slots in the mounting plate.
• Use only cable bushings made from syn-
thetic materials. Metallic bushings are to be
earthed.
• Check correct adjustment of the voltage
selector (12) and reinstall the mains supply
cover (1).
• Secure mains cable with a cable strap at the
plastic nub (17) and at the supporting metal
sheet.
• Mount the emergency-off switch in accordance with the contract order and route the
mains connection via emergency-off switch.
• Mount in accordance with contract order
• Connect in accordance with connection diagram and the manufacturer's specification
• Adjust the detection field/sensitivity and action radius according to the requirements
and the surroundings of the system.
10AT
L1
3mm
N
230/115V~
50/60 Hz
T1132/1
1
L1
11
12
T1132/34
