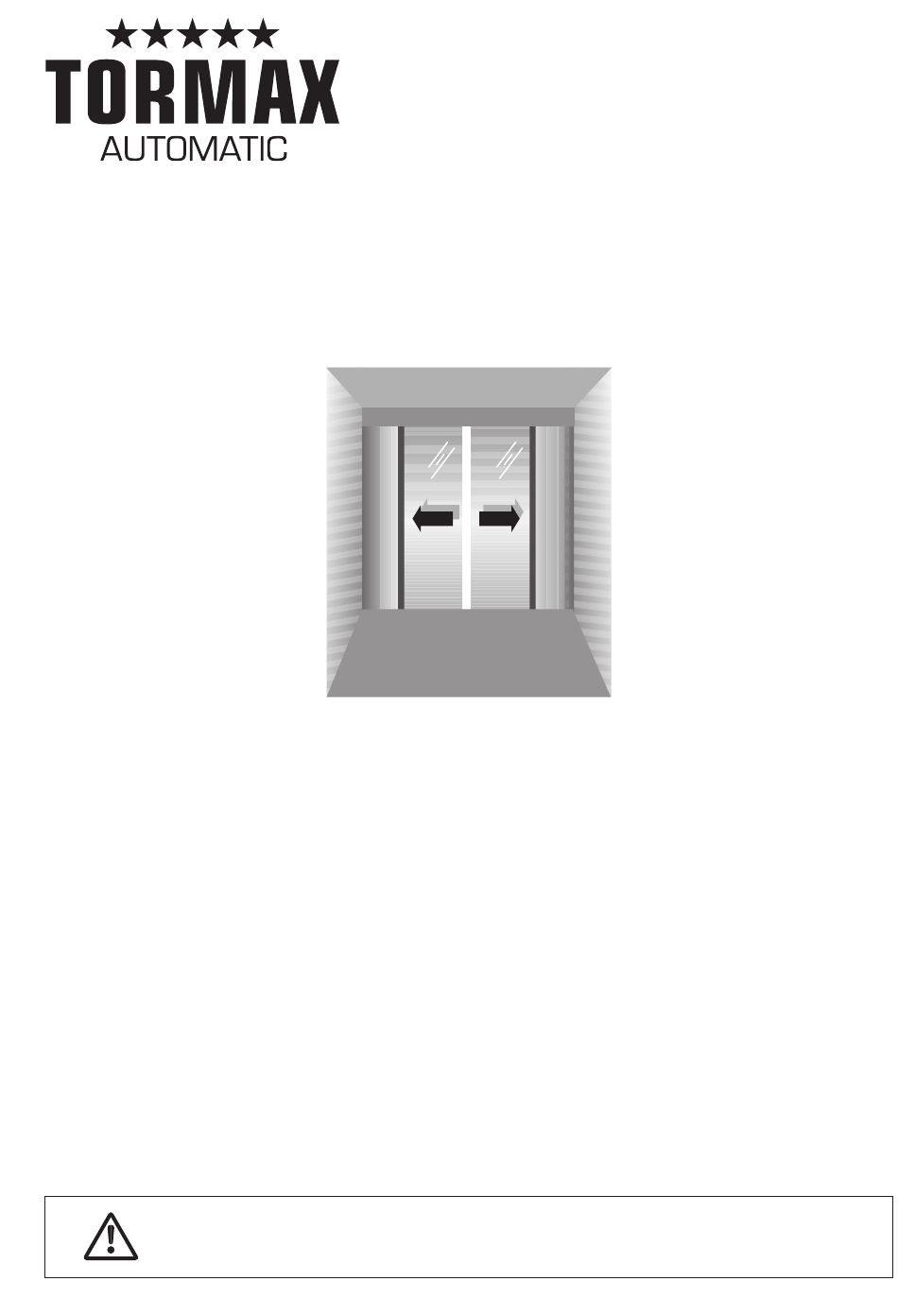

Instructions for Use
For Automatic Sliding Doors with Drive:
iMotion
2202 Sliding Door Drive
®
iMotion
2202.A / 2202.A-IP68 Sliding Door Drive
®
iMotion
2202.RETRO-TSP / TFP Sliding Door Drive
®
iMotion
2202.A-RETRO-TSP / TFP Sliding Door Drive
®
iMotion
2301 / 2301.IP68 Sliding Door Drive
®
iMotion
2302 Sliding Door Drive
®
iMotion
2401 / 2401.IP68 Sliding Door Drive
®
Safety instructions in chapter 2 must be observed!
T-1321 e 16.3.21
Translation of the original
instructions for use
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tormax Automatic iMotion 2202
Summary of Contents for Tormax Automatic iMotion 2202
- Page 1 T-1321 e 16.3.21 Translation of the original instructions for use Instructions for Use For Automatic Sliding Doors with Drive: iMotion 2202 Sliding Door Drive ® iMotion 2202.A / 2202.A-IP68 Sliding Door Drive ® iMotion 2202.RETRO-TSP / TFP Sliding Door Drive ®...
-
Page 2: Table Of Contents
Contents General Information Target Groups Storage and Forwarding of the Manual Explanation of the Symbols Technical Data Safety Responsibilities Use for the Purpose Intended Improper use Pre-conditions for the Operation of the System Hazards and Risks Checks Decommissiong the System in the Event of a Fault Disposal System Overview System Functions... -
Page 3: General Information
.A = New drive generation .A-RETRO-TSP = Adapter for conversion of type TSP to iMotion 2202.A .RETRO-TSP/TPF = Adapter for conversion of type TSP or TFP to iMotion 2202 .IP68 = Protective class of drive Door system identification plate (example): Identification plate with the serial number: located on the side panel of the drive. -
Page 4: Explanation Of The Symbols
2401.IP68: 1,5 A to +30 °C, 1,0 A to +50 °C Protective class, drive IP20: iMotion 2202, 2202.A, 2301, 2302, 2401 IP65 / IP68: iMotion 2202.A-IP68, iMotion 2301.IP68, 2401.IP68 Fuse 5 AT Ambient temperature –20 °C bis +50 °C... -
Page 5: Safety
• Children must be supervised to ensure that they do not play close to the system and do not operate any available operating controls. • The iMotion 2202.A-IP68, 2301.IP68 and iMotion 2401.IP68 drives are suitable for applications with exacting requirements involving water, rust and dust, for example pedestrian access on ships, oil platforms, car washes, in marine environments, green-houses with potential water ingress into the drive if the drive is cleaned using water. -
Page 6: Improper Use
• Use in abrasive and corrosive environments or in areas subject to the danger of explosions. • Use in abrasive and corrosive environments. The drives iMotion 2202.A-IP68, 2301.IP68 and iMotion 2401.IP68 are suitable for environments with exacting requirements involving water, rust and dust. -
Page 7: Hazards And Risks
2.5 Hazards and Risks Depending on the system design and equipment, there is a residual risk of crushing (1), entanglement (2) and collision (3) in the movement area of the door leaves – albeit with restricted force. Öffnen HK: Hauptschliesskante NK: Nebenschliesskante GK: Gegenschliesskante Schliessen... -
Page 8: Decommissiong The System In The Event Of A Fault
2.7 Decommissiong the System in the Event of a Fault If there is a fault the automatic door may only be taken out of service by a specialist, the operator or a person who is instructed to do so by the operator. This must be done on all occasions on which the safety of persons could be compromised. -
Page 9: System Overview
3 System Overview 5a, 7a 2a 4d Drive side Opposite drive side T1321_4e Drive Cladding Motor unit MCU32 control system with monitoring system, power limitation and perma- nent diagnosis Guide system with noise-absorbent guide rail Drive accessories £ Lock with a) £... - Page 10 Block diagram All work on the mains power supply cable and the system's cabling must only be undertaken by an authorised and properly trained person who must refer to all necessary documents. 230 VAC / 115 VAC Combined sensor Mains filter IEC plug drive side Combined sensor...
-
Page 11: System Functions
4 System Functions It is the responsibility of the system operator to ensure that the automatic sliding door can be freely used at all times and particularly that access to the sliding door is not blocked. T1321_12 4.1 Automatic Door Operation with Sensors When operating automatically (AUTOMATIC operating mode) the door is automatically opened from both sides by sensors when a person approaches. -
Page 12: Operating Modes
4.6 Operating Modes By using the TORMAX user interface u it is possible to operate the automatic door system in 6 operat- ing modes and with status displays or to use a simple operating mode switch u to operate the door in 3 operating modes. -
Page 13: Operation
5 Operation The automatic sliding door may only be operated by a specialist, the operator or a person instructed by the operator. 5.1 Commissioning Before switching on the mains power supply: • Unlock the optional mechanical door lock e.g. floor lock. •... -
Page 14: Operation With An Operating Mode Switch
Fault Display E.g. H31 or E11 See chapter 8 for the meaning of the display. • Reset by pressing the selector key 2 briefly. Resetting the System • Press the selector key 2 for at least 5 seconds. The software is restarted. The control system then conducts a calibration run, checks the travel distance and looks for the end position again. -
Page 15: Procedure In The Event Of A Fault
6 Procedure in the Event of a Fault Faults are evident from abnormal door behaviour and/or as an error message on the user interface. Error messages on the user interface take the form of a flashing “E” or “H” followed by two figures. H = notification >... -
Page 16: Maintenance
7 Maintenance The system was tested and approved by an expert before initial commissioning. The manufacturer recommends that you conclude a service contract in order to maintain the value of your system for as long as possible as well as to ensure the system operates reliably and safely for a long time. Only genuine TORMAX spare part should be used. -
Page 17: Appendix
8 Appendix 8.1 Fault Table System Behaviour Cause Remedy/ Rectification The door stops when Electronic obstacle recognition on Remove the obstruction. Clean the opening. opening by a person, wind pressure, floor guide. ventilation or dirt in the floor guide. Door reverses when Electronic obstacle recognition on Remove the obstruction. - Page 18 System Behaviour Cause Remedy/ Rectification The door opens slowly. The safety facility in the opening di- Remove objects from within the rection is permanently active range of the sensor(s). Otherwise (> 1 minute) or defective. have the system repaired by an expert.
-
Page 19: Check-List For Functional Checks
8.2 Check-list for Functional Checks Item To Be Checked Procedure Result Sensors • Walk through the door direct- The door opens at the right time ly from the front and from dif- and with sufficient speed so that ferent directions at normal passage through the door Is not speed, starting both from the hindered. - Page 20 Item To Be Checked Procedure Result System Vicinity • Check access to the door Access to the door is free from and the movement area of objects and items likely to cause the door leaves. the user to trip. There are no objects such as shelves, plant containers and umbrella stands within a radius of 50 cm of the...
-
Page 21: Declaration Of Conformity
EC Declaration of Conformity The manufacturer (installation company) of the complete door system declares Manufacturer’s address: that the product (door system) Type designation: Serial number: is in conformity with the directive 2006/42/EC (Machinery Directive) is in conformity with regulations of the guidelines: - 2014/35/EU (low tension) - 2014/30/EU (electro-magnetic-compatibility) and the following harmonised standards have been adhered to:... - Page 24 the passion to drive doors TORMAX Swing Door Drives TORMAX Sliding Door Drives TORMAX Folding Door Drives TORMAX Revolving Door Drives installation repairs Producer Installation company ( , maintenance) TORMAX Unterweg 14 CH-8180 Bülach-Zürich Phone +41 58 500 5000 +41 58 500 5099 www.tormax.com info@tormax.com TORMAX is a division and a registered trademark of LANDERT Group AG...
