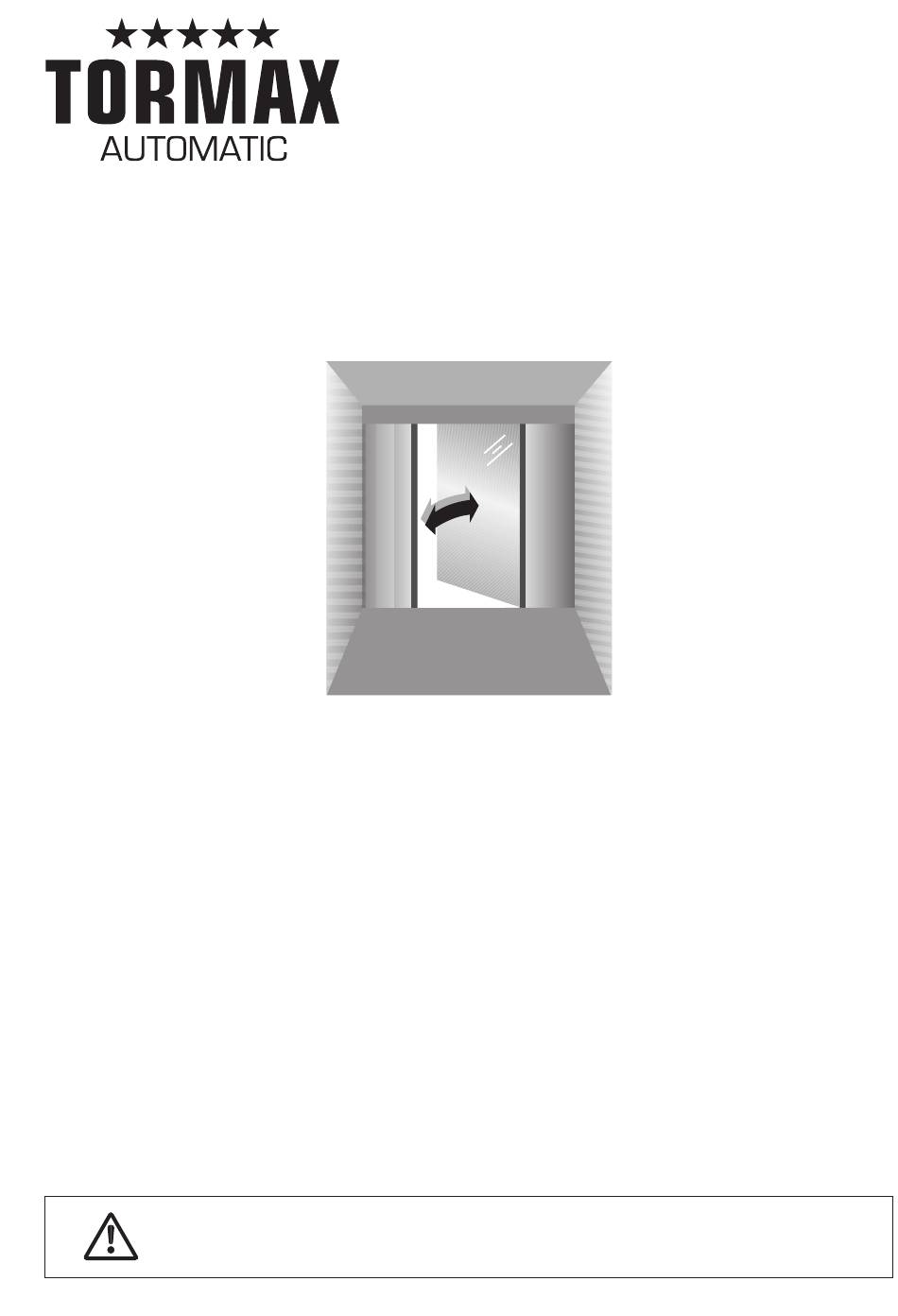

- Page 1 T-1737 e 16.3.21 Translation of the original instructions for use Instructions for Use For Automatic Swing Doors with Drive: iMotion 1302.KI Swing Door Drive ® Safety instructions in chapter 2 must be observed!
-
Page 2: Table Of Contents
Procedure in the Event of a Fault Maintenance Cleaning Functional Checks Maintenance and Testing Appendix Fault Table Check-List for Functional Checks Declaration of Conformity First edition: 3.15, Updsate: 3.21 We reserve the right to make technical changes. Instructions for Use iMotion 1302.KI T-1737 e... -
Page 3: General Information
– Proof of the regular examinations System test book T-879 Area of Application Product name, door system: Automatic swing door Product name, door drive: iMotion 1302.KI Swing Door Drive ® Identification plate: Instructions for Use iMotion 1302.KI T-1737 e... -
Page 4: Explanation Of The Symbols
6 … 225 W Sensor power supply: 24 V DC (+0,5 –1,5 V) 0,75 A Protective class, drive: IP22 Ambient temperature: –15 °C to +50 °C Noise emission level: < 70 db (A) Instructions for Use iMotion 1302.KI T-1737 e... -
Page 5: Safety
• Arrange to have any faults rectified immediately by a skilled person. Hazards and Risks Depending on the system design and equipment, there is a residual risk of crushing, shearing and collision with limited force in the movement area of the door leaf. Instructions for Use iMotion 1302.KI T-1737 e... -
Page 6: Checks
• Open the door manually and secure in the open position if it is installed in an escape route. • Fire doors must never be secured in the open position even in emergencies. See section 7 for rectification of faults. Instructions for Use iMotion 1302.KI T-1737 e... -
Page 7: Disposal
Warning Flying around parts • Relieve the spring tension before dismantling the drive. Warning Broken glass • Risk of injury when dismantling the door leaves. • Take care when transporting the door leaves. Instructions for Use iMotion 1302.KI T-1737 e... -
Page 8: Product Description
Output message £ Bell / gong £ Light £ Door status 10 Lock u a) £ Electrical door opener b) £ Door handle c) £ Mechanical door lock £ Depending on the system’s equipment Instructions for Use iMotion 1302.KI T-1737 e... -
Page 9: System Function
You can find further information on this subject in section 5 “Procedure in the Event of a Fault”. Electric Lock u The system can be locked in the closed position by means of an electric lock u. Instructions for Use iMotion 1302.KI T-1737 e... -
Page 10: Operating Modes
AUTOMATIC 1 or AUTOMATIC 2. Additionally the door can be locked auto- matically by the door lock u. The door lock can be permanently unlocked in this operating mode in case of need. Instructions for Use iMotion 1302.KI T-1737 e... - Page 11 The system is reset after leaving this operating mode. In this operating mode the door lock can also be permanently unlocked depending on the setting pro- grammed at the time of commissioning. Instructions for Use iMotion 1302.KI T-1737 e...
-
Page 12: Operation
Access will be automatically blocked again for 60 s after the button has been pressed for the last time. Selection of Operating Modes • Press selector keys 1 or 2 briefly. The corresponding operating mode symbol is illuminated. Instructions for Use iMotion 1302.KI T-1737 e... -
Page 13: Operation With An Operating Mode Switch
• Select operating mode OFF (operating mode switch , user interface ) or disconnect the operator from mains (installation switch, mains plug). • Push the door leaf back into the initial position. • Choose operating mode AUTOMATIC 1 or switch on operator. Instructions for Use iMotion 1302.KI T-1737 e... -
Page 14: Procedure In The Event Of A Fault
TORMAX dealer. In this case note the fault number and inform the dealer. See the last page or the service tag on the system for the dealer’s address. Instructions for Use iMotion 1302.KI T-1737 e... -
Page 15: Maintenance
The content of the maintenance work is specified by the manufacturer in an inspection list. System Test Book The test findings are recorded after the test in the system test book. The operator must keep it in a safe place. Instructions for Use iMotion 1302.KI T-1737 e... -
Page 16: Appendix
The door stands still. Control system shut down for safety Perform a software-reset. E8.. reasons. The door collides with – Safety device or setting inadequate. Shut down the system. people. (see section 2.6). Instructions for Use iMotion 1302.KI T-1737 e... -
Page 17: Check-List For Functional Checks
There are no ob- jects such as shelves, plant con- T1540_7 tainers and umbrella stands within a radius of 50 cm of the movement area. Instructions for Use iMotion 1302.KI T-1737 e... -
Page 18: Declaration Of Conformity
Base document: - Declaration of incorporation by TORMAX | LANDERT Group AG - Risk evaluation for automatic swing doors | T-1186 Person responsible for documents Name/address: Place, date: Signatory (CE authorized person): Signature Instructions for Use iMotion 1302.KI T-1737 e... - Page 20 the passion to drive doors TORMAX Sliding Door Drives TORMAX Swing Door Drives TORMAX Folding Door Drives TORMAX Revolving Door Drives (installation, repairs,service) Producer Installation company TORMAX Unterweg 14 CH-8180 Bülach-Zürich Phone +41 58 500 5000 +41 58 500 5099 www.tormax.com info@tormax.com TORMAX is a Division and a registered trademark of LANDERT Group AG...
