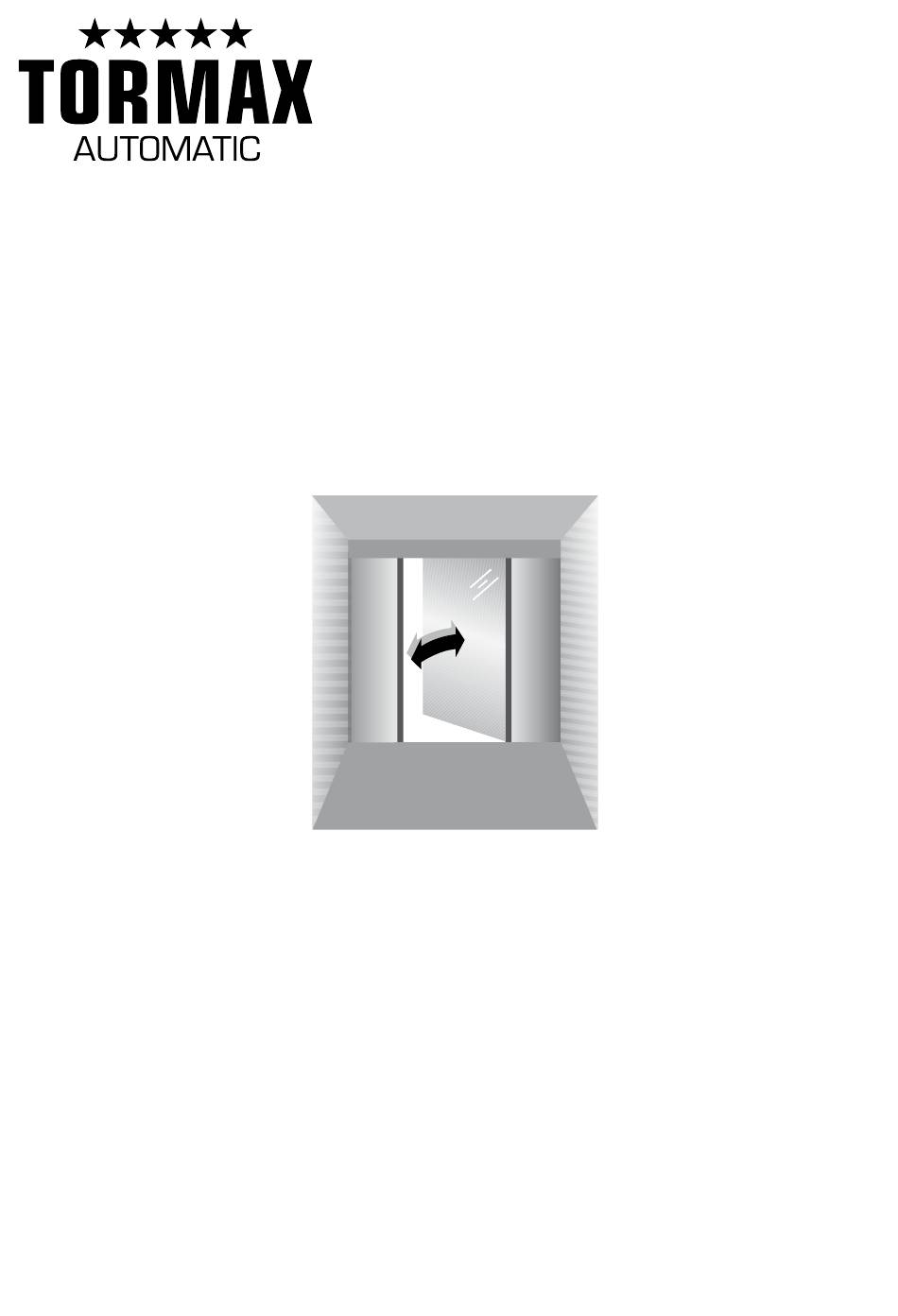

- Page 1 T-1305 e 10.08 Operating Instructions for Automatic Swing Doors iMotion 1301 Swing Door Drive ® iMotion 1401 Swing Door Drive ®...
-
Page 2: Table Of Contents
Additional Notes Technical Data Warranty Claims Optional Extras Disposal First edition: 10.08 We print on environment-friendly paper bleached without chlorine. The companies Landert Motoren AG and Landert GmbH are certified according to ISO 9001. Operating instructions iMotion 1301/ 1401 T-1305 e... -
Page 3: Regarding These Instructions
The system operator is responsible for the operation and maintenance of the system. Area of Application This document is applicable for swing doors with TORMAX automatic door operator of type: iMotion® 1301 Swing Door Drive iMotion® 1401 Swing Door Drive Explanation of Symbols In these instructions we have marked all positions which concern your safety with this symbol. -
Page 4: Safety
2.2 Permissible Use The automatic door system TORMAX iMotion 1301 and iMotion 1401 Swing Door Drive are built according to the current state of technology as well as the recognized safety-relevant rules. The swing door system is intended exclusively for the deployment in dry rooms and/or, for outer doors, at the inside of a building in the pedestrian passageway. -
Page 5: Functions Of The System
On failure of a safety-relevant component, the system changes automatically into a safe state. Thereby, the fault number is displayed on the user interface. Please refer to chapter 8 “Trouble Shooting” for further information. Operating instructions iMotion 1301/ 1401 T-1305 e... -
Page 6: Electromechanical Lock U
AUTOMATIC 1, or are centrally controlled by a time clock (e.g. OFF / AUTOMATIC 1). Push buttons, elbow switches etc. can be installed in place of, or in addition to the sensors. Operating instructions iMotion 1301/ 1401 T-1305 e... -
Page 7: Operation Through Tormax User Interface
Selection of the Operating Mode The operating mode can be set directly. System reset – by changing the operating mode (in case of malfunction. – by separating the system from mains supply for at least 5 seconds. Operating instructions iMotion 1301/ 1401 T-1305 e... -
Page 8: Operation On Power Failure
Systems with an Electric Door Lock u The lock unlocks at every valid opening impulse. The door lock must be manually unlocked with Operating instructions iMotion 1301/ 1401 T-1305 e... -
Page 9: Maintenance
Genuine spare parts are to be used exclusively. 7.1 Cleaning and Maintenance • In operating mode “P”, clean the door leaf, casing parts and user interface with a damp cloth using a commercial cleaning agent. Operating instructions iMotion 1301/ 1401 T-1305 e... -
Page 10: Checks By The System Operator
• Perform this check at the entrance and exit sides of the door. Manual Opening Activators Push-Buttons Key Switch u etc.) Checks: • Operate the corresponding activator briefly: The door opens and closes after the pre-set hold-open time. T1134/5 Operating instructions iMotion 1301/ 1401 T-1305 e... -
Page 11: Annual Maintenance And Inspection
Qualified professionals are persons who have adequate knowledge in the discipline of power operated doors based on their vocational training and experience and who are acquainted with the applicable accident prevention regulations, guidelines and generally recognized rules of that Operating instructions iMotion 1301/ 1401 T-1305 e... -
Page 12: Trouble Shooting
TORMAX dealer. In this case, note the error number and pass the information to the specialist. Address see back page or service label at the system. Operating instructions iMotion 1301/ 1401 T-1305 e... - Page 13 Avoid exposure to the sun. Door remains open. Control unit safety power off Perform a software-reset. E8.. Door hits a person. – Safety facility or adjustment inadequate. Shut down the system. (see section 2.3) Operating instructions iMotion 1301/ 1401 T-1305 e...
-
Page 14: Additional Notes
This system must be properly dismantled at the end of its working life and its disposal carried out in accordance with national regulations. We recommend that you contact a specialist dis- posal company. When disassembling the battery module, there is a potential hazard from acid! Operating instructions iMotion 1301/ 1401 T-1305 e... - Page 15 (W = 0) iMotion 1401 Before opening the case, remove the tension on the spring right up to the stop, as in the drawing. T1182_4 Contents subject to technical changes! Operating instructions iMotion 1301/ 1401 T-1305 e...
