Panic Fitting U - Tormax Automatic Smart Drive 1101 Manual

T1132/11
I
T1132/23
4x Ø5
130
T1132/44
H) insert bearing trestle into sliding rail
I) Mount side covers of sliding rail
Connect to mains,
Trigger factory reset, (see paragraph 7.3 programmimg table)
Choose operating mode OPEN (only with operating mode switch
axis will turn 20°
K) Slide connecting part over cone and push up to the operator
insert other end completely into bearing threstle, tighten cone (hexagon-socket screw) and connecting part
L) Fasten cover
M) Snap in side plates
N) Fasten rubber stop on the lintel, so that the connecting part will rest on it, when triggering the panic fitting.
14 Installation On Site SWINGDOOR Smart Drive 1101 T-1132 e

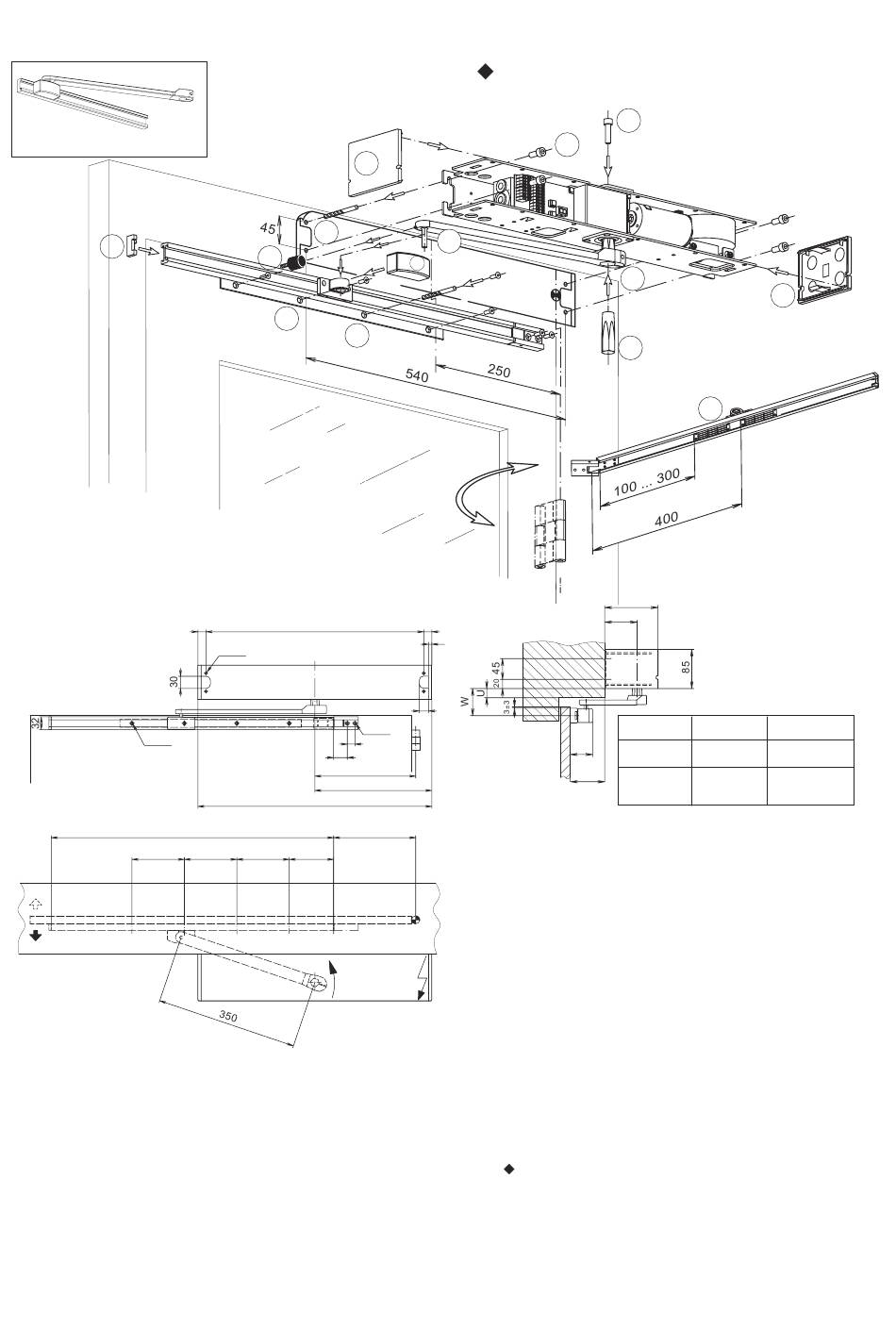

4.4 Panic Fitting
B
N
H
F
20 540
4x Ø7
19
34
580
700 160 + X/2
130 110
130
M
A
L
20
8
23
4x Ø5
250
290
A) Glue on template
B) Drill holes
C) Attach cone (length according Y)
D) Tighten hexagon-socket screw in a way that the
cone can be turned by hand
E) Fasten operator
F) Fasten hinge of panic fitting and holding plate
according to dimensional specifications on door
leaf
G) Adjust the desired holding force of the magnet by
sliding it in the rail.
or by connecting terminals no 2 and 3)
D
E
K
C
G
116
70.5
U
W
49
0 – 20 59 ± 3
X
0 – 80 119 ± 3
M
X
0...+150
0...+150
