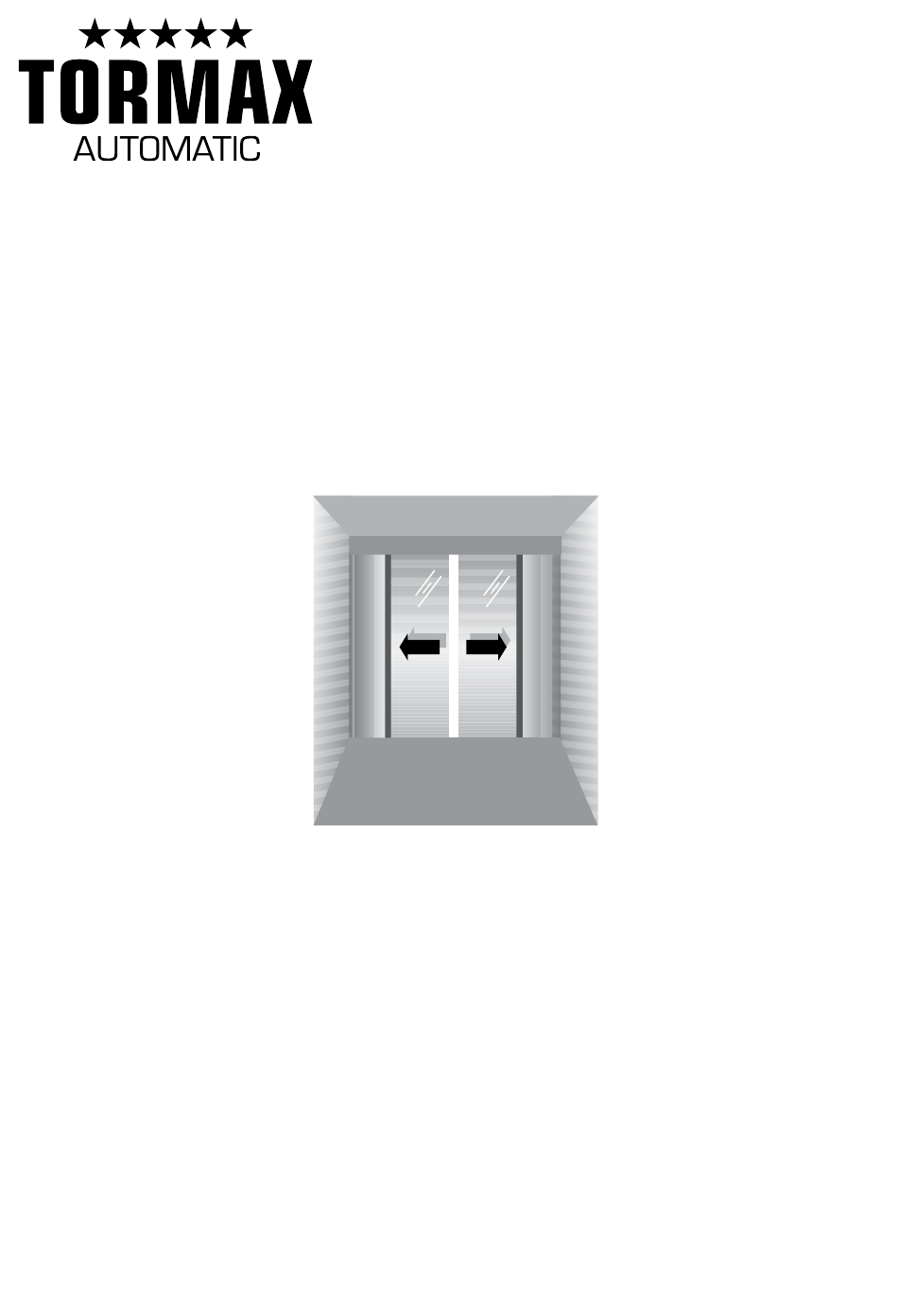

- Page 1 T-1165 e 19.4.12 Translation of the original instructions for use Instructions for Use For Automatic Sliding Doors with Drive Win Drive 2201 Sliding Door Drive...
-
Page 2: Table Of Contents
First edition: 9.04, Update: 19.4.12 We reserve the right to make technical changes. Printed on environmentally friendly paper bleached without the use of chlorine. Landert Motoren AG and Landert GmbH are certified to ISO 9001. Instructions for Use Win Drive 2201 T-1165 e... -
Page 3: General Information
24 V DC, 4,9 A Sensor supply 24 V DC, 1 A Protective class, drive IP 22 Ambient temperature – 20 °C to +50 °C Noise emission level < 70 db (A) Instructions for Use Win Drive 2201 T-1165 e... -
Page 4: Safety
2.4 Hazards and Risks Depending on the system design and equipment, there is a residual risk of crushing, entanglement and collision in the movement area of the door leaves – albeit with restricted force. Instructions for Use Win Drive 2201 T-1165 e... -
Page 5: Checks
– Risk of injury when dismantling the rubber cord suspension. – Take care when releasing the tension on the rubber cord. – Broken glass. – Risk of injury when dismantling the door leaves. – Take care when transporting the door leaves. Instructions for Use Win Drive 2201 T-1165 e... -
Page 6: Product Description
£ Emergency on/off switch c) £ Fire alarm system Output message u £ Bell / gong £ Light / ventilation £ Door locked £ Door status ……………… £ Depending on the system’s equipment Instructions for Use Win Drive 2201 T-1165 e... -
Page 7: System Function
In the event of a power failure the locks can also be directly activated by the optional manual facility. Operation in the Event of a Power Failure Depending on the equipment installed, the following functions are possible: – Immediate emergency opening or closing by a mechanical energy store system. Instructions for Use Win Drive 2201 T-1165 e... -
Page 8: Operating Modes
The door leaves can be freely moved. This operating mode can be used for cleaning the door leaves and the floor guide or for temporarily shutting down the door. The system is reset after leaving this operating mode. Instructions for Use Win Drive 2201 T-1165 e... -
Page 9: Operation
Fault indication e.g. LED 4 flashes. See Section 5 for how to proceed in the event of faults and how to reset the system. See chapter 7 for the definition of the fault. Instructions for Use Win Drive 2201 T-1165 e... -
Page 10: Operation With An Operating Mode Switch
The key switch must not remain permanently in the “on” opposition. The battery is activated using the “wake up” function. The door is unlocked, opens, closes slowly and locks again. The battery switches off automatically again after 90 seconds. Instructions for Use Win Drive 2201 T-1165 e... -
Page 11: Procedure In The Event Of A Fault
TORMAX dealer. In this case note the fault number and inform the dealer. See the last page or the service tag on the system for the dealer’s address. Instructions for Use Win Drive 2201 T-1165 e... -
Page 12: Maintenance
The content of the maintenance work is specified by the manufacturer in an inspection list. System Test Book The test findings are recorded after the test in the system test book. The operator must keep it in a safe place. Instructions for Use Win Drive 2201 T-1165 e... -
Page 13: Appendix
• Emergency power sup- • Wait for 15 min. till drive ply switched off. has cooled down. • Drive is overheated. • If no success, call TORMAX service. Instructions for Use Win Drive 2201 T-1165 e... -
Page 14: Check-List For Functional Checks
There are no objects such as shelves, plant containers and umbrella stands within a radius of 50 cm of the T1321_12 movement area. Instructions for Use Win Drive 2201 T-1165 e... -
Page 15: Declaration Of Conformity
Furthermore, the guideline 2006 /95 / EG (low tension) and 2004 /108 / EG (electro-magnetic- compatibility) must also be adhered to. This product is in conformity with the base documents and standards listed above (Declaration of Conformity T-1364). Place: Date: CE authorized person: Instructions for Use Win Drive 2201 T-1165 e... - Page 16 the passion to drive doors TORMAX Sliding Door Drives TORMAX Swing Door Drives TORMAX Folding Door Drives TORMAX Revolving Door Drives Manufacturer: Advice, sales, installation Repairs and service: TORMAX | CH-8180 Bülach-Zürich Phone +41 (0)44 863 51 11 +41 (0)44 861 14 74 Homepage www.tormax.com E-Mail...
