Value line evaluation board CEC demonstration

Note:

Only the addresses of connected devices are available. If a new device is connected, its

logical address is added to the list of available follower addresses.

Use the LEFT and RIGHT buttons to navigate between the available CEC commands.

Use the SEL button to select the command to be sent

command)

The send status is displayed on the selected display module. Repeat from step 6 if you

want to select another follower and send another command. Reset the device if you

want to select a different device type.

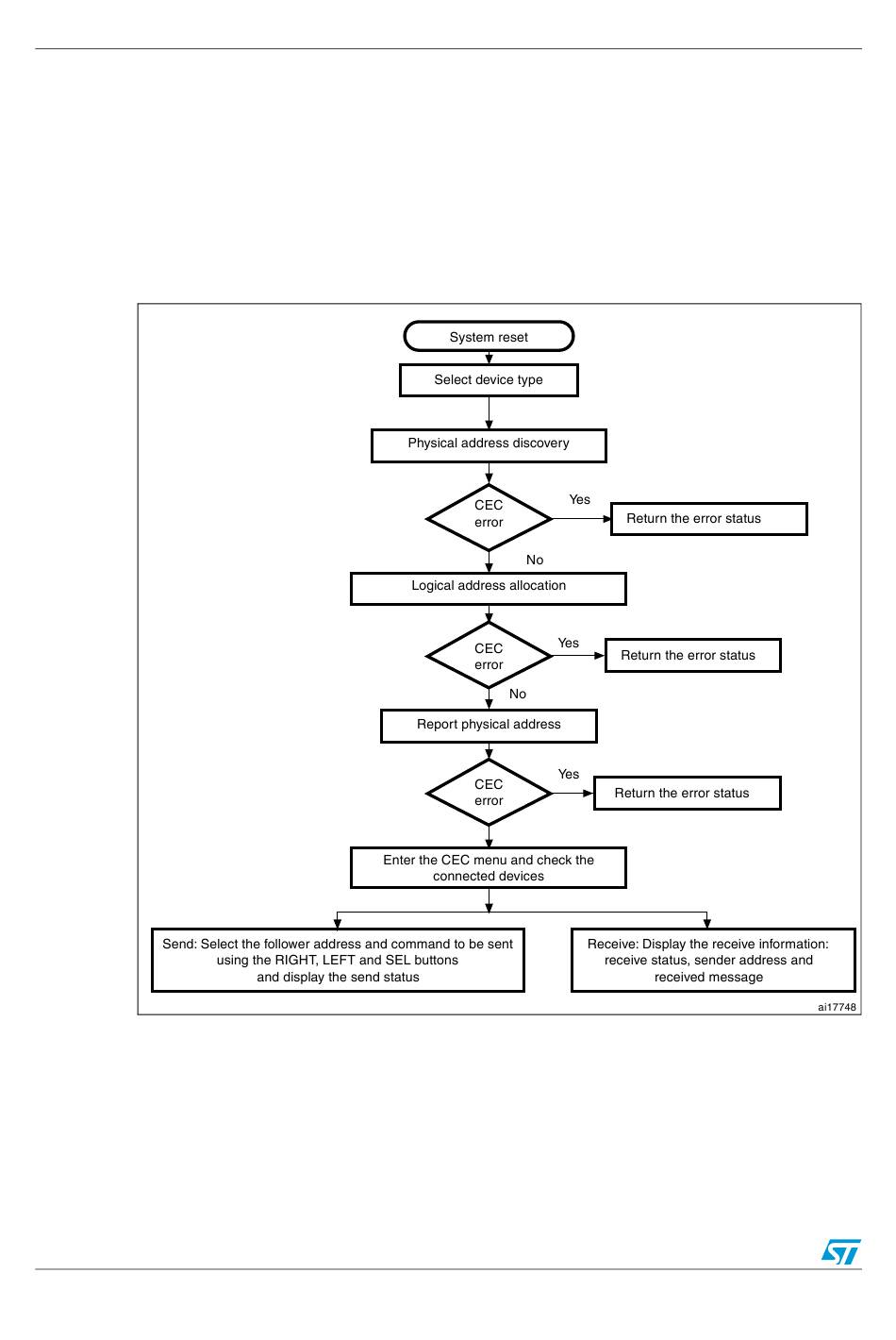

Figure 17. CEC demonstration flowchart
