  • Page 1 EL-41WAD v1.3 HDMI 4 to 1 Mountable Switcher OPERATION MANUAL EL-41WAD_Manual-EN.indd 1 04/05/2011 16:20:14...

  • Page 2: Table Of Contents

    Table of Contents Introduction Features Package Contents Operation Controls and Functions Front Panel Diagram Rear Panel Diagram Remote Control RS232 Pinouts Commands Sets Connection Diagram Specifications EL-41WAD_Manual-EN.indd 2 04/05/2011 16:20:27...

  • Page 3: Introduction

    1. Introduction Each switcher in the Elector Range is compatible to v1.3 HDMI specifications, supporting up to 16 bit Deep Colour together with High Definition audio. 2. Features • v1.3 HDMI, HDCP 1.1 and DVI 1.0 compliant. • HDMI 4 to 1 Mountable Switcher. •...

  • Page 4: Operation Controls And Functions

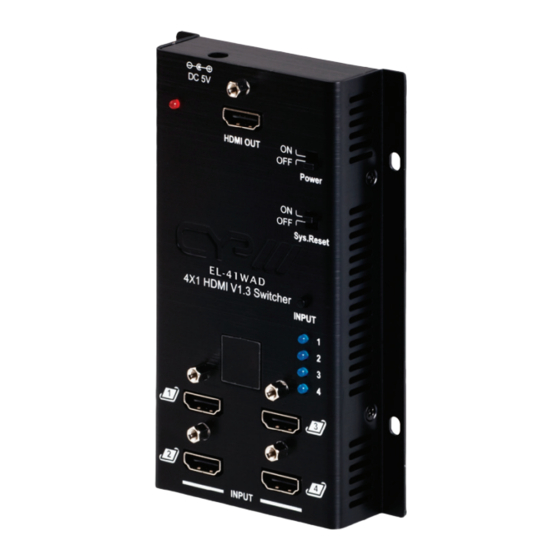

    1. DC 5V: Plug the 5VDC power supply into the unit and connect the adaptor to AC wall outlet. 4.2 Front Panel DC 5V HDMI OUT Power Sys.Reset EL-41WAD 4X1 HDMI V1.3 Switcher INPUT INPUT Page 2 EL-41WAD_Manual-EN.indd 2 04/05/2011 16:20:29...

  • Page 5: Remote Control

    1. HDMI OUTPUT: Connect your LCD TV or HD monitor with HDMI cables. 2. Power LED: Red LED will illuminate when the Power is On. 3. Power switch: Switch to ON to turn on the device or switch to OFF to set the device standby.

  • Page 6: Rs232 Pinouts

    1. Power button: Press to switch On the device, press it again to set the device in standby mode. 1. 1~4: Press the desire input button to select the input source. 7. Connection Diagram Page 4 EL-41WAD_Manual-EN.indd 4 04/05/2011 16:20:34...

  • Page 7: Specifications

    7. Specifications Frequency bandwidth 2.25Gbps (2.25Gbps (single link) Input Ports 4 x HDMI female port Output Port 1 HDMI female ports 480i ~1080p 50/60, 1080p24, HDMI Output Resolution VGA~UXGA 5VDC/2.6A (US/EU standards, CE/FCC/ Power Supply UL Certified) Dimensions (mm) 93 (W) x 148 (D) x 31(H) Chassis Colour Black Chassis Material...
