EL-41PIP
4-Way HDMI Switch with Integrated Picture-in-Picture
(PIP) Technology
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EL-41PIP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CYP EL-41PIP

Summary of Contents for CYP EL-41PIP

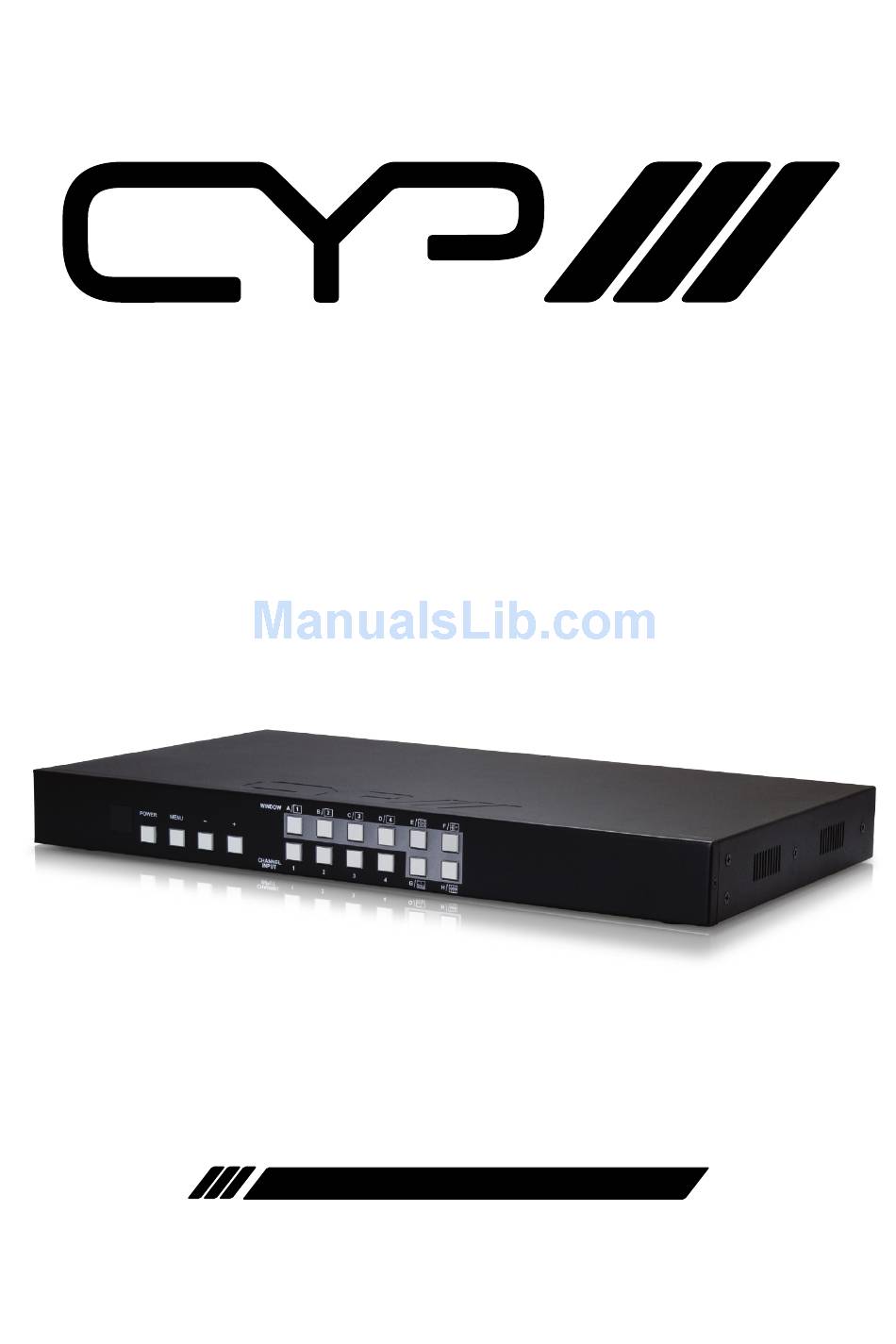

  • Page 1 EL-41PIP 4-Way HDMI Switch with Integrated Picture-in-Picture (PIP) Technology OPERATION MANUAL...

  • Page 3: Copyright Notice

    DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 6.3 Remote Control ........10 6.4 RS-232 Protocols ........11 6.5 RS-232 Commands ........12 6.6 OSD MENU ..........14 7.

  • Page 6: Introduction

    1. INTRODUCTION The EL-41PIP is an advanced 4 Way HDMI switch with integrated Picture in Picture (PIP) technology. This plug and play solution offers advanced control and display options that allow for the integration of 4 sources onto a single screen.

  • Page 7: Features

    5. FEATURES Integration of up to 4 sources on a single display Multiple screen layout configurations Seamless switching channels and on screen windows Fade in out display functionality Ability to mirror and rotate images Zoom & Shrink HDMI Video and / or Overlay Resolution supported : HDTV: 480i to 1080p plus 1080p24fps;...

  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel WINDOW POWER MENU CHANNEL INPUT 1 2 3 4 2 3 4 1 2 3 IR Window Accept IR signal from the device’s remote control included in the package. POWER Press this button to power on the device or set it to standby mode. MENU Press this button to bring up the OSD menu on screen.

  • Page 9: Rear Panel

    6.2 Rear Panel HDMI IN HDMI OUT RS232 DC 12V SERVICE ONLY HDMI IN Connect with source equipments such as DVD/Blu-ray players and or PC/NB devices. HDMI OUT Connect with HD TV/monitor for output image display. USB SERVICE ONLY This slot is reserved for factory use only. RS-232 Connect from PC/NB with D-Sub 15pin cable for RS-232 control.

  • Page 10: Remote Control

    6.3 Remote Control Power Info Power Press this button to switch on the device or press it again to set it to standby CH 1 mode. CH 2 Info CH 3 Press this button to show the device’s CH 4 firmware version.

  • Page 11: Rs-232 Protocols

    Press these buttons to select audio from HDMI input source 1~4. * Functions only work under Window A to D. The system will force to switch to Window A when operate under Window E~H. 6.4 RS-232 Protocols EL-41PIP Remote Control Assignment Assignment...

  • Page 12: Rs-232 Commands

    6.5 RS-232 Commands Command Action POW000 POW001 WND001 Change to Window A WND002 Change to Window B WND003 Change to Window C WND004 Change to Window D WND005 Change to Window E WND006 Change to Window F WND007 Change to Window G WND008 Change to Window H CH1001...
  • Page 13 AUD001 Change Output Audio to Source 1 AUD002 Change Output Audio to Source 2 AUD003 Change Output Audio to Source 3 AUD004 Change Output Audio to Source 4 FAD000 Fade In-Out Off FAD001 Fade In-Out On CHR000 Chromakey Function Off CHR001 Chromakey Function On MIR000...

  • Page 14: Osd Menu

    6.6 OSD MENU Main Menu 1st Layer 2nd Layer 3rd Layer CH 1 0~100 (50) CH 2 0~100 (50) Brightness CH 3 0~100 (50) Adjust CH 4 0~100 (50) Value Reset Menu Exit CH 1 0~100 (50) CH 2 0~100 (50) Contrast Image Adjust CH 3...
  • Page 15 Height Hundred CH1 Hxxx Vxxx Channel 1 Horizontal Unit Select Horizontal Ten Horizontal Position Hundred Vertical Unit Vertical Ten Vertical Hundred Image Output OnOff Window Reset Menu Exit CH2 Wxxx Hxxx Width Unit Width Ten Size Width Hundred Height Unit Height Ten Height Hundred CH2 Hxxx Vxxx...
  • Page 16 Vertical Hundred Image Output OnOff Window Reset Menu Exit CH3 Wxxx Hxxx Width Unit Width Ten Size Width Hundred Height Unit Height Ten Height Hundred CH3 Hxxx Vxxx Horizontal Unit Channel 3 Horizontal Ten Select Horizontal Position Hundred Vertical Unit Vertical Ten Vertical Hundred...
  • Page 17 Size Width Hundred Height Unit Height Ten Height Hundred CH4 Hxxx Vxxx Horizontal Unit Horizontal Ten Channel 4 Horizontal Position Select Hundred Vertical Unit Vertical Ten Vertical Hundred Image Output OnOff Window Reset Menu Exit FAV 1 Store ON/ OFF/OK FAV 2 Store ON/ OFF/OK Favourites...
  • Page 18 Favourites FAV 3 Recall Recall ON/OFF/OK FAV 4 Recall ON/OFF/OK Menu Exit Menu Exit Mirror On/Off Fade In-Out On/ Rotation R90/ Channel 1 L90/Up-Side Convert Down180/Off Window Reset Menu Exit Mirror On/Off Fade In-Out On/ Rotation R90/ Channel 2 L90/Up-Side Convert Down180/Off Window Reset...
  • Page 19 Mirror On/Off Fade In-Out On/ Rotation R90/ Channel 4 L90/Up-Side Convert Down180/Off Window Reset Menu Exit Minimum For R 000~255 Maximum For R 000~255 Minimum For G 000~255 Chromakey Maximum For Setup* G 000~255 Minimum For B 000~255 Maximum For B 000~255 Switch ON/OFF Exit...

  • Page 20: Specifications

    7. SPECIFICATIONS Video Bandwidth 225MHz/6.75Gbps Input port 4x HDMI Output port 1 x HDMI ESD Protection Human body model: ±8kV (air-gap discharge) ±4kV (contact-gap discharge) Power Supply 12V/3A DC (US/EU standards, CE/FCC/UL certified) Dimensions 432mm(W) x 172mm(D) x 44mm(H) Weight 2200g Chassis Material Aluminum...

  • Page 21: Connection And Installation

    8. CONNECTION AND INSTALLATION...
  • Page 24 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
