Summary of Contents for CYP EL-41S-4222

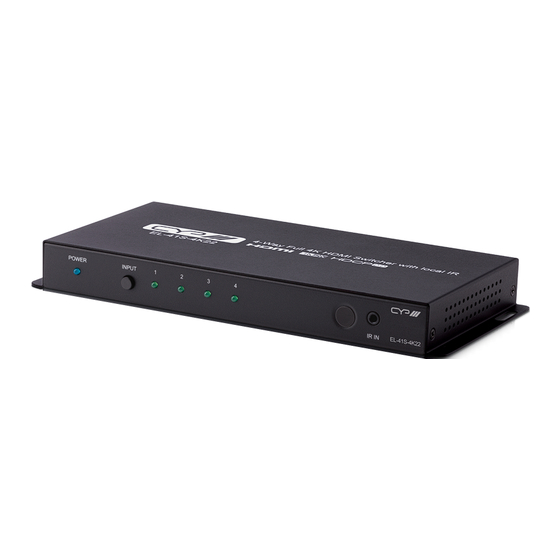

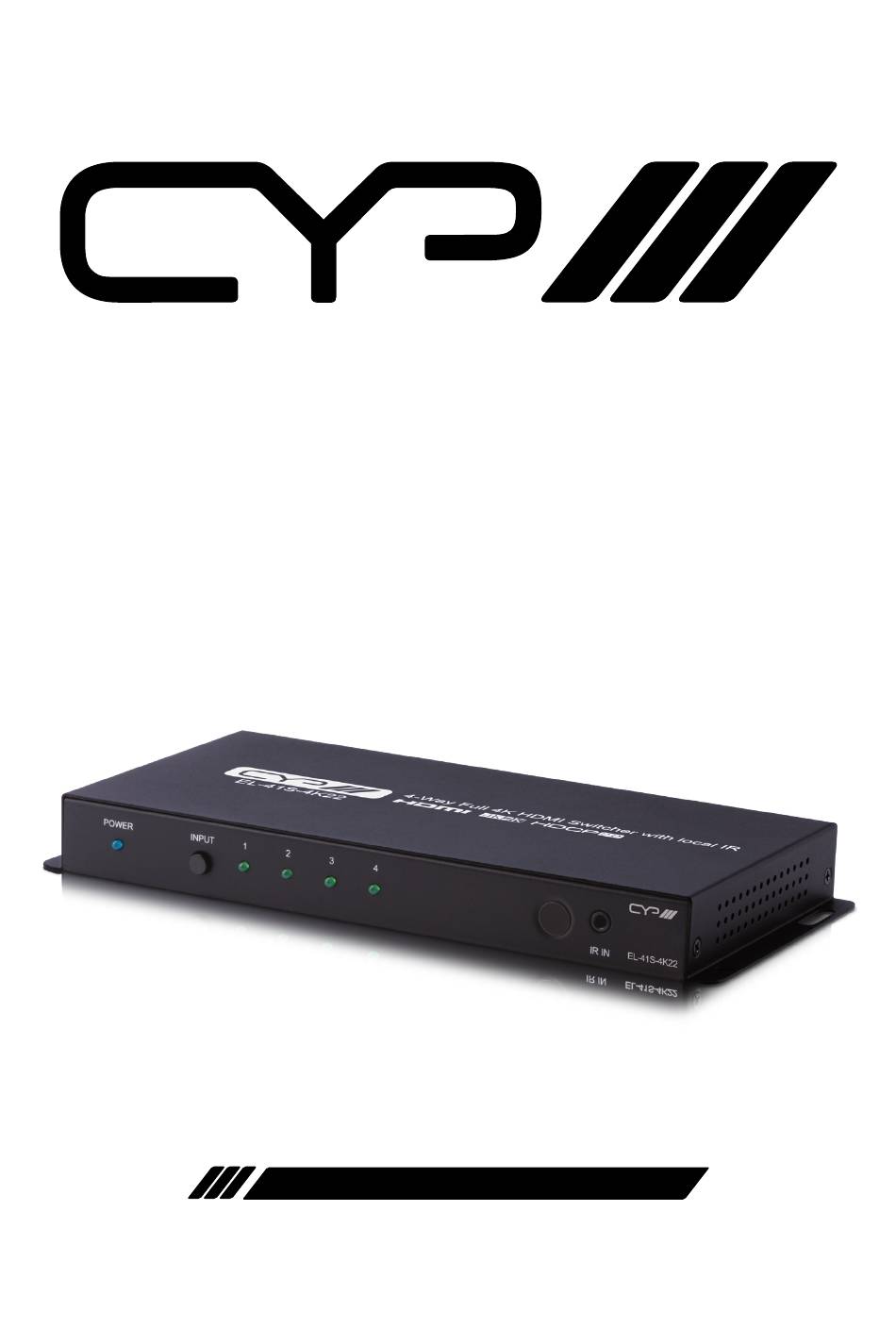

- Page 1 EL-41S-4222 4-Way Full 4K HDMI Switcher with local IR OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents .........1 4. System Requirements ........1 5. Features ............2 6. Operation Controls and Functions ....3 6.1 Transmitter Front Panel ........3 6.2 Transmitter Rear Panel ........4 6.3 IR Remote ...............5 6.4 IR Cable Pin Assignment ........5 6.5 RS-232 Pin Assignment........6 6.7 Factory Default settings ........8 7. -
Page 6: Introduction
1. INTRODUCTION This 4-Way HDMI Switcher is designed to enable the user to switch between any of the four connected HDMI sources to send video and audio to a single HDMI display. This switcher fully supports 4K resolutions and is HDMI2.0 and HDCP 2.2 compliant, ensuring maximum compatibility with the latest 4K UHD sources and displays. -
Page 7: Features
5. FEATURES HDMI2.0, HDCP 2.2 and DVI compatible Supports 4 HDMI inputs and 1 HDMI output Supports HDTV resolutions up to 4K2K (3840x2160@24/25/30/50/60 & 4096x2160 @24/25/30/50/60Hz) including HDR Supports pass-through of HD audio formats of PCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio Supports control via IR remote and RS-232... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front Panel POWER POWER INPUT INPUT IR IN IR IN EL-41S-4K22 Power LED: This LED will illuminate to indicate the unit is on and receiving power. INPUT BUTTON: Press this button to sequentially switch through the available inputs.. -
Page 9: Transmitter Rear Panel
6.2 Transmitter Rear Panel RS-232 OUTPUT INPUT 4 INPUT 3 INPUT 2 INPUT 1 SERVICE DC 5V OUTPUT: Connect to HDMI TVs, monitors or amplifiers for digital video and audio output. INPUT 1~4: Connect to HDMI source equipment such as media players, game consoles or set-top boxes. -
Page 10: Ir Remote
6.3 IR Remote POWER POWER: No function . INPUT 1~4: Press any of these buttons to switch to the corresponding input. INPUT CR-72 6.4 IR Cable Pin Assignment IR Extender IR Signal Power Ground... -
Page 11: Rs-232 Pin Assignment
6.5 RS-232 Pin Assignment Unit Terminal Assignment Assignment ► ◄ Baud Rate: 115,200 bps Data Bit: 8-bit Parity: None Stop Bit: 1-bit Flow Control: None... - Page 12 6.6 RS-232 Commands COMMAND DESCRIPTION PARAMETERS OUT N, N=1~4 (INPUT), SET/SHOW CURRENT INPUT OUT N N=0 (MUTE), N=? (STATUS) SELECTION NONE SOURCEDET SHOW INPUT INFORMATION NONE SINKINFO SHOW SINK INFORMATION HDCPIN N1 N2, N1=1~4 (INPUT), N2=1~3, N=? (STATUS) 1:FOLLOW IN HDCPIN N1 N2 SET/SHOW INPUT HDCP STATUS 2:FOLLOW OUT...
-
Page 13: Factory Default Settings
COMMAND DESCRIPTION PARAMETERS NONE FADEFAULT SET UNIT TO FACTORY DEFAULT NONE SHOW UNIT FIRMWARE VERSION NONE REBOOT SYSTEM REBOOT SHOW DESCRIPTION OF COMMAND NONE SHOW DESCRIPTION OF COMMAND NONE HELP 6.7 Factory Default settings FACTORY DEFAULT SETTINGS INPUT 1 EDID MODE ALL Mode EDID SINK... -
Page 14: Connection Diagram
7. CONNECTION DIAGRAM Blu-ray/PS4 Player Blu-ray/PS4 Player Blu-ray/PS4 Player Blu-ray/PS4 Player HDMI IN RS-232 OUTPUT INPUT 4 INPUT 3 INPUT 2 INPUT 1 SERVICE DC 5V 6G HDMI TV/Display Projector... -
Page 15: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 600MHz/6Gbps Input Ports 4x HDMI 1x IR 1x RS-232 1x Mini-USB Output Ports 1x HDMI Supported Resolutions VGA~WUXGA 480i ~ 1080p@60Hz 4K@24/25/30/50/60 Hz HDMI Cable I/O 3M (4K@60Hz, YUV 4:4:4 8-bit) Distance* 5M (4K@60Hz, YUV 4:2:0 8-bit) 10M (1080p@60Hz, 8-bit) IR Frequency 30~50Hz... -
Page 16: Video Specifications
8.2 Video Specifications Supported Resolutions (Hz) Input Output 640x480@60/72/75/85 800x600@56/60/72/75/85 1024x768@60/70/75/85 1280x1024@60 1366x768@60 1600x1200@60 1920x1080@60 1920x1200@60 720x576i@50 720x480i@59.94/60 720x480p@59.94/60 ... -
Page 17: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM 10GbE 10 Gigabit Ethernet 4K UHD 4K Ultra-High-Definition (10.2Gbps max) Gbps Gigabits per second HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface Light-Emitting Diode LPCM Linear Pulse-Code Modulation Megahertz... - Page 20 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com RDV1a...
