CYP EL-41X Operation Manual

CYP EL-41X Operation Manual

V1.4 xpressview hdmi 4-way switcher

Advertisement

Quick Links

EL-41X
v1.4 Xpressview™ HDMI
4-Way Switcher
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EL-41X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CYP EL-41X

  • Page 1 EL-41X v1.4 Xpressview™ HDMI 4-Way Switcher OPERATION MANUAL...
  • Page 2: Safety Precautions

    Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment:  Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 3: Table Of Contents

    Table of Contents Introduction ……………………..……………………...…..….……. Applications …………………..………………….……....….. Package Contents ………………………...………....… System Requirements ……………..………..………....……. Features …………………………………………..……..…...…… Specifications ………………………………...……..………..…. Operation Controls and Functions ……………...……....…… Front Panel ................Rear Panel .……………...…………………..……..…..….… Right Panel ................Left Panel .…………………………………..……..…..….… Top Panel .…………………………………..……..…...….… Remote Control ….…………………......…..…..…..OSD Menu ….…………………........…..…..…..
  • Page 4: Introduction

    1. Introduction This is a high performance four-input & one-output High-Definition Multimedia Interface (HDMI) v1.4 switcher with digital audio inputs and outputs. It supports HDCP repeater functions and fast switching between any of the four of HDMI input ports. The system supports all 3D TV formats in addition to all HDTV formats up to 1080p 12-bit Deep Color.
  • Page 5: Features

    5. Features Support multiplexed HDMI 4-input and 1-output  HDMI 1.4, HDCP 1.4 and CEC1.4 compliant  HDMI 1.4 support:   Audio Return Channel (ARC)  3D TV support  CEC1.4 Fast switching on all HDMI input ports  Character and icon based On-Screen Display (OSD) ...
  • Page 6: Specifications

    6. Specifications Frequency Bandwidth 2.25Gbps Input Ports 4 x HDMI Female ports Output port 1 x HDMI Female port HDMI Audio Output PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1, DD+, D-TrueHD, DTS-HD HDMI Cable In 1080p 8-bit (10M), 12-bit (10M) HDMI Cable Out 1080p 8-bit (15M), 12-bit (15M) Coaxial Audio Output PCM2CH...
  • Page 7: Operation Controls And Functions

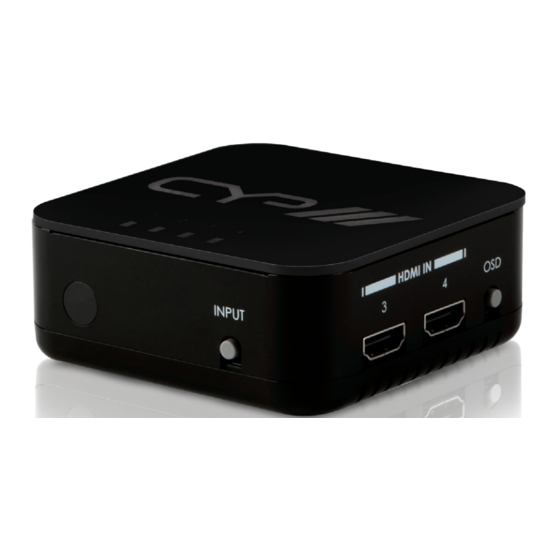

    7. Operation Controls and Functions 7.1 Front Panel INPUT ① ② ① IR sensor: This is a IR receiver window that receives IR signals from the remote control included in the package. ② INPUT: Press this button to select the desires input source, the LED will switch on according to the selection.
  • Page 8: Right Panel

    7.3 Right Panel HDMI IN ① ② ① HDMI IN 3 & 4: These slots are where you connect the input source devices for sending a signal to the input source with HDMI cables. ② OSD: Press this button to bring up the OSD on the display and press it again to turn it off.
  • Page 9: Remote Control

    8. Remote Control ① MENU: Press to enter into menu selection, an OSD MENU ENTER will appear from the display. ① ② ② Enter: Press to confirm the selection. ③ 1, 2, 3, 4: Press to select input port. ④ pqtu : Use these buttons to select/adjust OSD menu ’...
  • Page 10: System Info

    9.1 System Info Press [ p / q ] to highlight an option Press [Enter] to check the input/output device information and software version. Press [MENU] to exit menu Press [Enter] to confirm/exit the selection 9.2 Sink Edid Press [ p / q ] to highlight an option Press [ t / u ] to select the option Press [Enter] to confirm/exit the selection Press [MENU] to exit menu...
  • Page 11: Exit

    Press [ ↑ / ↓ ] to highlight an option Press [Enter] to confirm/exit the selection 10. Connection and Installation Blu-ray Player HD Receiver HD Receiver Media Streamer HDMI HD D M Inputs Inpu EL-41X COAXIAL- ARC Ouput AV Amplifier AV Am HDMI Output HDTV (ARC Enabled)
  • Page 12: Acronyms

    Acronyms Acronym Complete Term HDCP High-bandwidth Digital content protection HDMI High-Definition Multimedia Interface Consumer Electronics Control...
  • Page 13 www.cypeurope.com...
