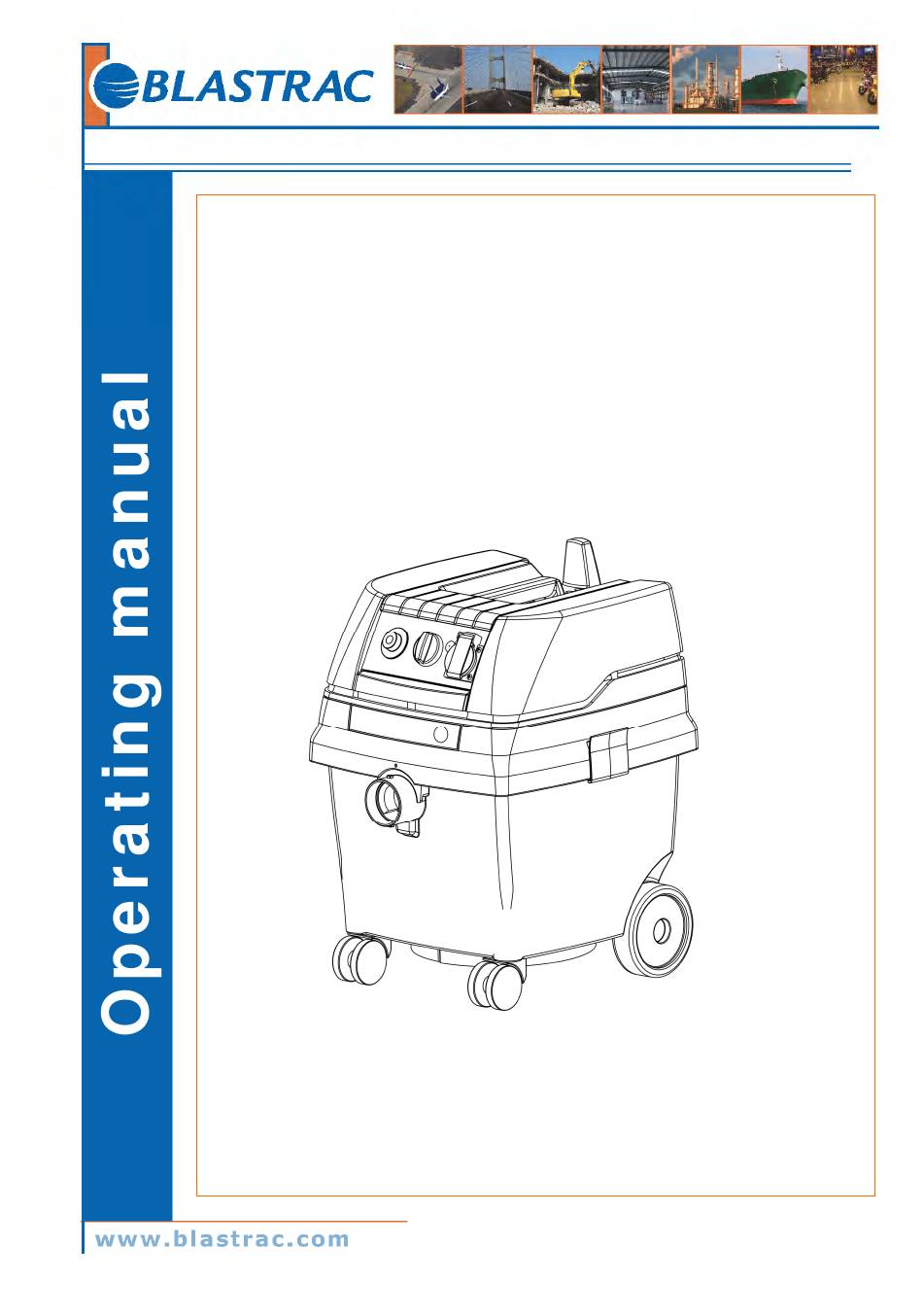

  • Page 1 Operating manual BDC-1112 BDC-1112 EN - Version 1.0 info@blastrac.eu...

  • Page 2: Ec Declaration Of Conformity

    Operating manual BDC-1112 2/16 EC DECLARATION OF CONFORMITY in accordance with Appendix II sub A of Directive 98/37/EC BLASTRAC B.V. Utrechthaven 12 NL - 3433 PN NIEUWEGEIN Tel: 0031 (0)30 601 88 66 Fax: 0031 (0)30 601 83 33 Info@Blastrac.nl...

  • Page 3: Table Of Contents

    Operating manual BDC-1112 3/16 Table of contents EC Declaration of Conformity 1. Introduction 2. Machine description Application Accessories 3. Safety Safety precautions - general Safety precautions - with regard to transport Safety regulations Labels 4. Initial operation Checkpoints of electrical safety Functions 5.

  • Page 4: Introduction

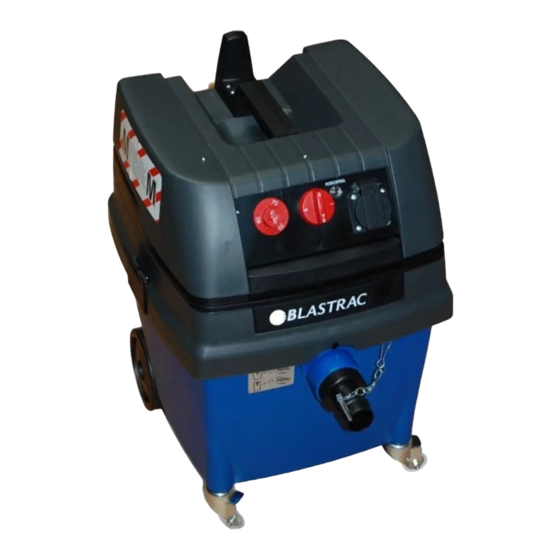

    For both versions the dust collector is complete with an electronic filter cleaner. It can be used in automatic mode for a constant high suction power. Application The BDC-1112 is especially designed to be used in combination with Blastrac hand grinders, hand scarifiers, hand blaster machines and some other types of Blastrac machines.
  • Page 5 Operating manual BDC-1112 5/16 Upper part Power supply cable Control panel Cover 2a Turn switch on/off/Automatic/ Suction inlet manual 2b Power supply for auxiliary Lock dustbin machines Volume stream display 10 Wheels 2d Selection switch cleaning timer 11 Castor wheels...

  • Page 6: Accessories

    Operating manual BDC-1112 6/16 Accessories In order to clean the floor after treatment or surface preparation, as an accessory the following items are available . Part number E06262 - This set consists out of .  1 Suction hose 35 mm...

  • Page 7: Safety Precautions - General

     The unit should not be used near flammable gasses or substances.  The BDC-1112 must not be applied for carcinogenic or asbestos substances.  Packing material, like plastic bags, should not be in reach of children’s with regard of asphyxiation danger ...

  • Page 8: Safety Regulations

    Operating manual BDC-1112 8/16  The suitable precautions include decontamination before disassembling the dust collector, adequate filtered ventilation of the exhaust air from the room in which it is disassembled, cleaning of the maintenance area and suitable personal protection. ...

  • Page 9: Labels

    Operating manual BDC-1112 9/16 Labels The following labels are placed on the machine. Class M appliances. Type plate Full text : Descriptions : “WARNING: This appliance contains dust  Data regarding power supply. hazardous to health. Emptying and  IP enclosures maintenance operations, including ...

  • Page 10: Initial Operation

    Operating manual BDC-1112 10/16 4. Initial operation Before using the machine it is essential to inspect the machine. It is not permitted to use the machine if the machine safety is not according the checkpoints below. Checkpoints of electrical safety ...

  • Page 11: Operating

     Before staring to dry clean again, place a dry filter in the machine.  When frequently changing between dry and wet cleaning, Blastrac B.V. recommends to purchase a second filter set, preferable a polyester – filter cartridge. Plastic dust bag installation & removing...
  • Page 12 Operating manual BDC-1112 12/16 Below the procedure for installation and removing the plastic dust bags. Installation new dust bag Removing full dust bag info@blastrac.eu...

  • Page 13: Maintenance

    Operating manual BDC-1112 13/16 6. Maintenance Cleaning Cover and additional parts are to be cleaned with water. Upper part (1) is to be cleaned with a moist cloth. Let the Cover and additional parts dry-up Filter replacement When the suction power reduces to low, and cleaning of the filter cartridges (12) does not improve this (taking into account that there is an new dust bag is installed or the bin (7) is emptied), then it is necessary that the filter cartridges are renewed.

  • Page 14: Fault Diagnosis

    Any guarantee on the machine is expired when:  Non original Blastrac parts have been used  Repair work is not done by qualified Blastrac personnel  Changes, add on’s or conversions are undertaken without written permission of Blastrac BV...

  • Page 15: Technical Data

    Operating manual BDC-1112 15/16 7. Technical data BDC-1112 Power 1.2 kW consumption Max. power 1,4 kW Electrical 220-240V / 50 Hz connection / fuel Air stream 140 m3/hr/SE (hose end) Under pressure 225 hPa/SE (hose end) Power supply H05VV F3 x 1.5...

  • Page 16: Operating Manual Bdc-1112

    Operating manual BDC-1112 16/16 HEADQUARTER Blastrac BV The Netherlands Utrechthaven 12 NL - 3433 PN Nieuwegein Tel: 0031 (0)30 601 88 66 Fax: 0031 (0)30 601 83 33 info@blastrac.nl Blastrac United Kingdom Unit 2, Outgang Lane, Dinnington Sheffield, South Yorkshire GB –...
